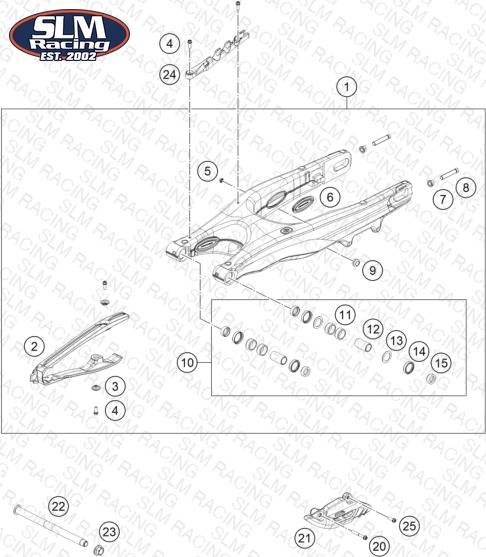

SWING ARM
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A46004030144 Swingarm cpl | Swingarm cpl | 1 | $640.52 | Available | 1 |
| 2 | A46004066000 Chain slider, left | Chain slider, left | 1 | $21.22 | Available | 1 |
| 3 | 77304066150 Chain slider bushing | Chain slider bushing | 2 | $1.99 | Available | 2 |
| 4 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 4 | $2.99 | Available | 4 |
| 5 | 54603055051 PRESS IN NUT M6 STEEL ZINC | PRESS IN NUT M6 STEEL ZINC | 1 | $2.99 | Available | 1 |
| 6 | A46004041000 Locking cap swingarm | Locking cap swingarm | 4 | $1.99 | Available | 4 |
| 7 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 8 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 9 | 50180105 Threaded bush M12 d20 | Threaded bush M12 d20 | 1 | $18.25 | Available | 1 |
| 10 | 79004030110 Repair kit swingarm bearing | Repair kit swingarm bearing | 1 | $153.00 | Available | 1 |
| 11 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | $11.54 | Available | 4 |
| 12 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 13 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 14 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 15 | 77704034000 Support f. shaft seal ring 16 | Support f. shaft seal ring 16 | 4 | $15.83 | Available | 4 |
| 20 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 1 | $3.99 | Available | 1 |
| 21 | A46004070000 Chainguide SX | Chainguide SX | 1 | $52.02 | Available | 1 |
| 22 | A46004037000 Swingarm pivot | Swingarm pivot | 1 | $83.48 | Available | 1 |
| 23 | 54804038000 Nut with flange M16X1,5 WS=19 | Nut with flange M16X1,5 WS=19 | 1 | $2.99 | Available | 1 |
| 24 | A46004042000 Brake line guide | Brake line guide | 1 | $8.90 | Backorder — Restocking | 1 |
| 25 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 1 | $2.99 | Available | 1 |
