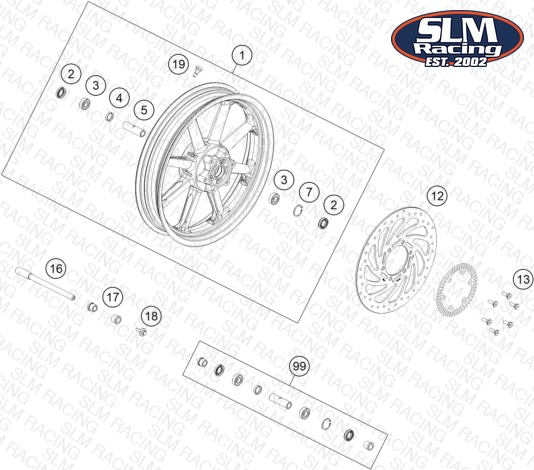

FRONT WHEEL
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28109101044C1A Front wheel cpl. black | Front wheel cpl. black | 1 | — | Check availability | |
| 2 | J760223508 SHAFT SEAL RING 22X35X8 | SHAFT SEAL RING 22X35X8 | 2 | — | Check availability | |
| 3 | J625062023 BALL BEARING 6202 | BALL BEARING 6202 | 2 | — | Check availability | |
| 4 | 90109011001 Fixation bearing spacer tube | Fixation bearing spacer tube | 1 | — | Check availability | |
| 5 | 90109011000 Spacer front wheel | Spacer front wheel | 1 | — | Check availability | |
| 7 | J472035150 Circlip 35X1,5 | Circlip 35X1,5 | 1 | — | Check availability | |
| 12 | 93309060000 Brake disc front 320MM | Brake disc front 320MM | 1 | — | Check availability | |
| 13 | 90110062000 SPECIAL SCREW M8X25 SELF LOCK. | SPECIAL SCREW M8X25 SELF LOCK. | 6 | — | Check availability | |
| 16 | 93009081000 Front axle | Front axle | 1 | — | Check availability | |
| 17 | 90209083000 BEARING BUSHING | BEARING BUSHING | 2 | — | Check availability | |
| 18 | 90109082000 flanged bolt M8 | flanged bolt M8 | 1 | — | Check availability | |
| 19 | 90109076000 VALVE CPL. | VALVE CPL. | 1 | — | Check availability | |
| 99 | 90109015100 FRONT WHEEL REP. KIT | FRONT WHEEL REP. KIT | — | — | Check availability |
