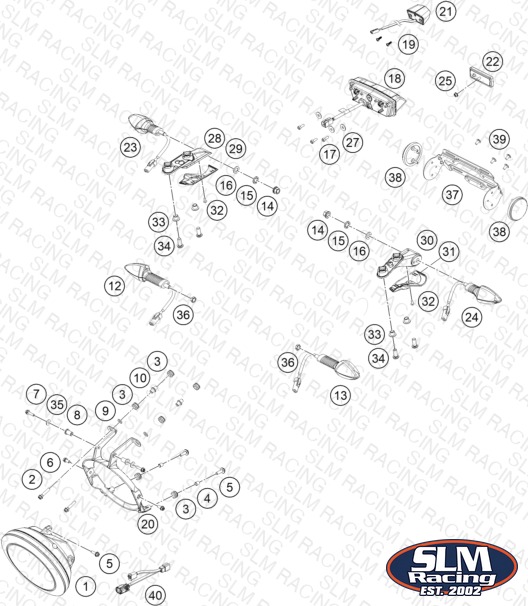

LIGHTING SYSTEM
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28114001000 LED headlight | LED headlight | 1 | $912.11 | Available | 1 |
| 2 | J025060351 Hex collar screw, M6x35 | Hex collar screw, M6x35 | 2 | $1.99 | Available | 2 |
| 3 | 28114010010 Rubber grommet 8x12x16x9.5 | Rubber grommet 8x12x16x9.5 | 6 | $1.99 | Available | 6 |
| 4 | 28114010020 Bushing for rubber grommet 9x1 | Bushing for rubber grommet 9x1 | 2 | $1.99 | Available | 2 |
| 5 | J025060207 Hex collar screw, M6x20 | Hex collar screw, M6x20 | 3 | $1.99 | Available | 3 |
| 6 | J0250601210 Hex collar screw, M6x12 | Hex collar screw, M6x12 | 2 | $1.99 | Available | 2 |
| 7 | J025050206 bolt flange-m5x0.8xl20xcl10.9x | bolt flange-m5x0.8xl20xcl10.9x | 2 | $1.99 | Available | 2 |
| 8 | 90108008060 WELL NUT M5 L16 | WELL NUT M5 L16 | 2 | $2.41 | Available | 2 |
| 9 | J125070004 washer plain-id6.5xod16xthk1xb | washer plain-id6.5xod16xthk1xb | 2 | $1.99 | Available | 2 |
| 10 | 28114060010 Bushing dashboard bracket | Bushing dashboard bracket | 2 | $2.99 | Available | 2 |
| 12 | 90214525001 FLASHER CPL. FRONT R/S | FLASHER CPL. FRONT R/S | 1 | $49.05 | Available | 1 |
| 13 | 90214526001 FLASHER CPL. FRONT L/S | FLASHER CPL. FRONT L/S | 1 | $49.05 | Available | 1 |
| 14 | J926100003 nut-hex-flanged | nut-hex-flanged | 2 | $1.99 | Available | 2 |
| 15 | J06797100183 Toothed washer, M10 | Toothed washer, M10 | 2 | $1.99 | Available | 2 |
| 16 | J125100009 Washer M10 | Washer M10 | 2 | $1.99 | Available | 2 |
| 17 | J912050143 BOLT SOCKET M5X0.8 | BOLT SOCKET M5X0.8 | 3 | $1.99 | Available | 3 |
| 18 | 28114040000 Tail light | Tail light | 1 | $200.74 | Available | 1 |
| 19 | J981420133 SHEET MET.SCR. DIN 7981 4,2X13 | SHEET MET.SCR. DIN 7981 4,2X13 | 2 | $1.99 | Available | 2 |
| 20 | 28114010000 Headlight bracket | Headlight bracket | 1 | $25.75 | Available | 1 |
| 21 | 90114047000 LICENSE PLATE ILLUMINATION | LICENSE PLATE ILLUMINATION | 1 | $32.79 | Available | 1 |
| 22 | 28112080000 Reflector, red | Reflector, red | 1 | $3.99 | Available | 1 |
| 23 | 90214525000 FLASHER CPL. REAR R/S | FLASHER CPL. REAR R/S | 1 | $49.54 | Available | 1 |
| 24 | 90214526000 FLASHER CPL. REAR L/S | FLASHER CPL. REAR L/S | 1 | $47.46 | Available | 1 |
| 25 | J06923050053 Hex collar nut, M5 | Hex collar nut, M5 | 1 | $1.99 | Available | 1 |
| 27 | 93308015010 Washer, license plate holder s | Washer, license plate holder s | 3 | $1.99 | Available | 3 |
| 28 | 28114236010 Blinkerholder tail right IN | Blinkerholder tail right IN | 1 | $4.99 | Available | 1 |
| 29 | 28114236020 Blinkercover tail right IN | Blinkercover tail right IN | 1 | $2.99 | Available | 1 |
| 30 | 28114235010 Blinkerholder tail left IN | Blinkerholder tail left IN | 1 | $4.99 | Available | 1 |
| 31 | 28114235020 Blinkercover tail left IN | Blinkercover tail left IN | 1 | $2.99 | Available | 1 |
| 32 | J081040121 CROSS PAN SCREW 4X12 PH | CROSS PAN SCREW 4X12 PH | 2 | $1.99 | Available | 2 |
| 33 | 28103002040 Bushing turn signal bracket | Bushing turn signal bracket | 4 | $3.99 | Available | 4 |
| 34 | J031080206 Roundhead screw, M8x20 | Roundhead screw, M8x20 | 4 | $2.99 | Available | 4 |
| 35 | J125050002 Washer, M5 | Washer, M5 | 2 | $1.99 | Available | 2 |
| 36 | J934100006 Nut hex thin-M10x1.25 | Nut hex thin-M10x1.25 | 2 | $1.99 | Available | 2 |
| 37 | 28108515000 License plate holder support U | License plate holder support U | 1 | $13.08 | Available | 1 |
| 38 | 90212582000 SIDE REFLECTOR REAR | SIDE REFLECTOR REAR | 2 | $6.15 | Backorder — Restocking | 2 |
| 39 | 93008037000 Panhead screw M6 | Panhead screw M6 | 4 | $1.99 | Available | 4 |
| 40 | 28111079000 cable lamp head | cable lamp head | 1 | $26.39 | Available | 1 |
