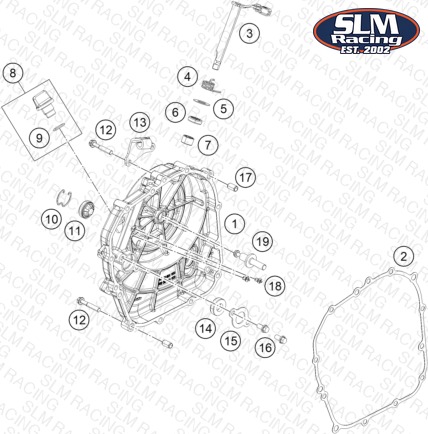

CLUTCH COVER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 90230626044 Clutch Cover with Plug | Clutch Cover with Plug | 1 | $85.24 | Available | 1 |
| 2 | 90230027000 GASKET CLUTCH COVER | GASKET CLUTCH COVER | 1 | $6.15 | Available | 1 |
| 3 | 90232048133 CLUTCH RELEASE LEVER CPL. | CLUTCH RELEASE LEVER CPL. | 1 | $14.54 | Available | 1 |
| 4 | 90232048003 SPRING F. RELEASE LEVER | SPRING F. RELEASE LEVER | 1 | $2.99 | Available | 1 |
| 5 | 90132048005 WASHER 12,5X24X0,8MM | WASHER 12,5X24X0,8MM | 1 | $1.99 | Available | 1 |
| 6 | 90132051000 OIL SEAL RING | OIL SEAL RING | 1 | $3.99 | Available | 1 |
| 7 | 90132050000 needle bearing | needle bearing | 1 | $6.15 | Available | 1 |
| 8 | 90130020000 OIL PLUG CPL. | OIL PLUG CPL. | 1 | $1.99 | Available | 1 |
| 9 | J770013824 O-RING 13,8X2,4 | O-RING 13,8X2,4 | 1 | $1.99 | Backorder — Restocking | 1 |
| 10 | 90630095000 WIRE CIRCLIP 28X1,5 | WIRE CIRCLIP 28X1,5 | 1 | $2.99 | Available | 1 |
| 11 | 90130095100 OIL GAUGE GLASS | OIL GAUGE GLASS | 1 | $6.92 | Available | 1 |
| 12 | J025060353 Hex collar screw M6X35 | Hex collar screw M6X35 | 12 | $1.99 | Available | 12 |
| 13 | 90230059100 BRACKET CLUTCH CABLE | BRACKET CLUTCH CABLE | 1 | $6.81 | Available | 1 |
| 14 | 90134127000 Oill seal ring | Oill seal ring | 1 | $6.15 | Available | 1 |
| 15 | 90230060001 STOPPER SHAFT SEAL RING | STOPPER SHAFT SEAL RING | 1 | $2.99 | Available | 1 |
| 16 | 90130078001 FLANGED BOLT 6X12 | FLANGED BOLT 6X12 | 2 | $1.99 | Available | 2 |
| 17 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available | 2 |
| 18 | 90130064000 OIL JET | OIL JET | 2 | $7.14 | Available | 2 |
| 19 | 90232048004 PULL ROD | PULL ROD | 1 | $9.12 | Available | 1 |
