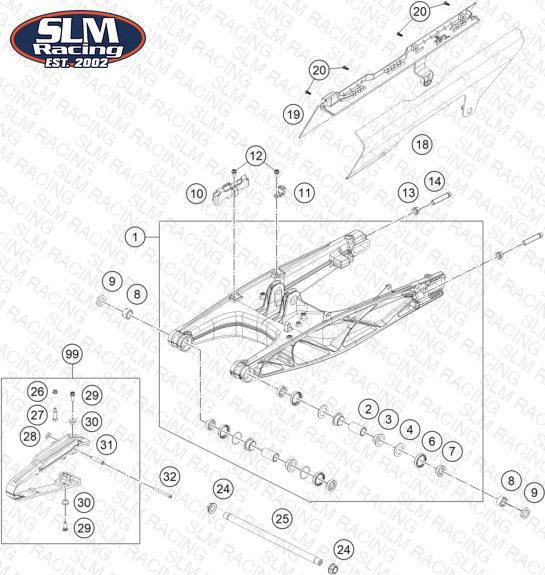

SWING ARM
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 10 | 93013047000 Support | Support | 1 | $2.99 | Available | 1 |
| 11 | 90113047000 brake hose guide | brake hose guide | 1 | $1.99 | Available | 1 |
| 2 | 90104032000 sleeve bushing 15.1x20x38 | sleeve bushing 15.1x20x38 | 2 | $8.19 | Available | 2 |
| 3 | 90104031000 Igus plain bearing | Igus plain bearing | 4 | $6.46 | Available | 4 |
| 7 | 90104034000 cup for radial shaft seal | cup for radial shaft seal | 4 | $4.99 | Available | 4 |
| 4 | 90104036000 Thrust washer 22.2x31.7x1 | Thrust washer 22.2x31.7x1 | 2 | $1.99 | Available | 2 |
| 14 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 13 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 18 | 28504063000 Chainguard trim | Chainguard trim | 1 | $39.81 | Available | 1 |
| 19 | 28504062000 Chainguard | Chainguard | 1 | $40.36 | Available | 1 |
| 20 | 0081040121 EJOT Delta PT K40x12 | EJOT Delta PT K40x12 | 4 | $3.99 | Available | 4 |
| 31 | 90104070020 SLEEVE CHAIN GUARD | SLEEVE CHAIN GUARD | 1 | $3.99 | Available | 1 |
| 32 | 0738050502 Oval-head screw ISO 7380-M5X50 | Oval-head screw ISO 7380-M5X50 | 1 | $1.99 | Available | 1 |
| 29 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 30 | 90604062000 chain slider bushing | chain slider bushing | 2 | $1.99 | Available | 2 |
| 12 | 014580060126 SHCS ISO 14580 M6x12 | SHCS ISO 14580 M6x12 | 2 | $2.99 | Available | 2 |
| 28 | 90504067000 WASHER CHAIN SLIDING GUARD | WASHER CHAIN SLIDING GUARD | 1 | $1.99 | Available | 1 |
| 27 | 90104040100 screw M5x0.8x30 | screw M5x0.8x30 | 1 | $1.99 | Available | 1 |
| 25 | 28504037000 swingarm bold M14x1,5 | swingarm bold M14x1,5 | 1 | $70.72 | Available | 1 |
| 9 | 90104042000 hex thrust washer | hex thrust washer | 2 | $4.99 | Available | 2 |
| 8 | 90104046000 swingarm adjusting ring | swingarm adjusting ring | 2 | $7.27 | Available | 2 |
| 24 | 77204087000 hex nut M14x1.5 WS17 | hex nut M14x1.5 WS17 | 2 | $2.99 | Available | 2 |
| 6 | 90104034001 OIL SEAL RING 25X32X7 | OIL SEAL RING 25X32X7 | 4 | $3.99 | Available | 4 |
| 99 | 90104066210 CHAIN GUARD KIT 250/390 | CHAIN GUARD KIT 250/390 | — | $36.83 | Available | 1 |
| 26 | 90204060001 HH COLLAR NUT | HH COLLAR NUT | 1 | $1.99 | Available | 1 |
| 1 | 90504030044 SWING ARM CPL. | SWING ARM CPL. | 1 | $514.35 | Available | 1 |
