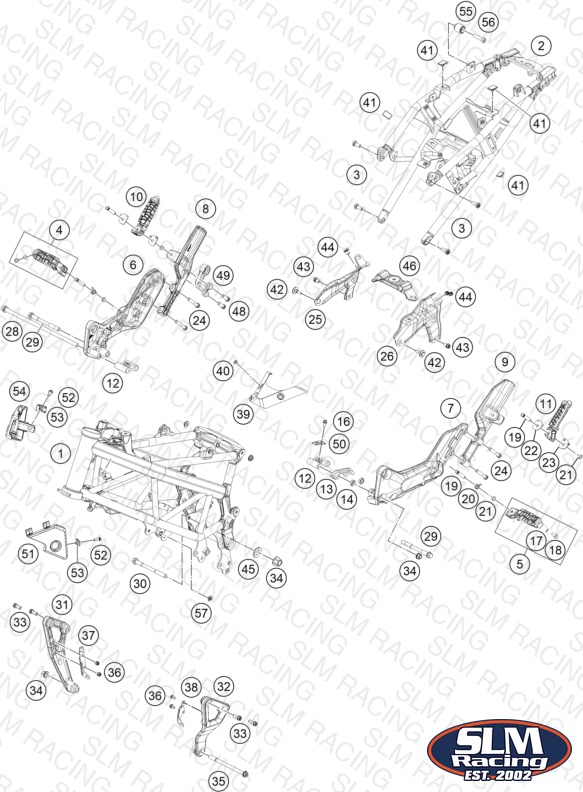

FRAME
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2850300100030 Frame, black | Frame, black | 1 | — | Check availability | |
| 2 | 2850300200030 Subframe, black | Subframe, black | 1 | — | Check availability | |
| 3 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 4 | — | Check availability | |
| 4 | 90103041033 footrest front right cpl. | footrest front right cpl. | 1 | — | Check availability | View Details |
| 5 | 90103040033 footrest front left cpl. | footrest front left cpl. | 1 | — | Check availability | View Details |
| 6 | 2800303900030S Footrest carrier FR/RI | Footrest carrier FR/RI | 1 | — | Check availability | |
| 7 | 2800303800030S Footrest holder FR/LE | Footrest holder FR/LE | 1 | — | Check availability | |
| 8 | 2800304900030S footrest holder, rear, right | footrest holder, rear, right | 1 | — | Check availability | |
| 9 | 2800304800030S Footrest holder re/le | Footrest holder re/le | 1 | — | Check availability | |
| 10 | 90103051033 footrest rear right cpl. | footrest rear right cpl. | 1 | — | Check availability | View Details |
| 11 | 90103050033 footrest rear left cpl. | footrest rear left cpl. | 1 | — | Check availability | View Details |
| 12 | 90103038001 footrest support holder, front | footrest support holder, front | 2 | — | Check availability | |
| 13 | 90104070000 chainguide | chainguide | 1 | — | Check availability | |
| 14 | 90104066010 spacer chainguide | spacer chainguide | 2 | — | Check availability | |
| 16 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 17 | 90103040001 PLAIN WASHER 6,4X12X1 | PLAIN WASHER 6,4X12X1 | 2 | — | Check availability | |
| 18 | J029060103S CAP SCREW M6X10 SS | CAP SCREW M6X10 SS | 2 | — | Check availability | |
| 19 | 60003044100 footrest bolt, rear | footrest bolt, rear | 4 | — | Check availability | |
| 20 | 61003042000 SPRING FOOTREST FRONT 05 | SPRING FOOTREST FRONT 05 | 2 | — | Check availability | |
| 21 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 4 | — | Check availability | |
| 22 | 90103053000 footrest lock plate 2 | footrest lock plate 2 | 2 | — | Check availability | |
| 23 | 90103052000 footrest lock plate 1 | footrest lock plate 1 | 2 | — | Check availability | |
| 24 | 0025080506 HH collar screw M8x50 TX40 | HH collar screw M8x50 TX40 | 4 | — | Check availability | |
| 25 | 28503001083 fuel tank holder, plate, right | fuel tank holder, plate, right | 1 | — | Check availability | |
| 26 | 28503001053 fuel tank holder, plate, left, | fuel tank holder, plate, left, | 1 | — | Check availability | |
| 28 | 28503007000 Hex fing screw M10X280 SW13 | Hex fing screw M10X280 SW13 | 1 | — | Check availability | |
| 29 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | — | Check availability | |
| 30 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 1 | — | Check availability | |
| 31 | 2850301400001S engine brace, right | engine brace, right | 1 | — | Check availability | |
| 32 | 2850301300001S engine brace, left | engine brace, left | 1 | — | Check availability | |
| 33 | 0025080206S HH collar screw M8x20 TX40 SL | HH collar screw M8x20 TX40 SL | 4 | — | Check availability | |
| 34 | 60036078200 hex collar nut M10 WS13 | hex collar nut M10 WS13 | 3 | — | Check availability | |
| 35 | 0025101366 HH collar screw M10x136 TX | HH collar screw M10x136 TX | 1 | — | Check availability | |
| 36 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 4 | — | Check availability | |
| 37 | 28535002000 Radiator retaining bracket, ri | Radiator retaining bracket, ri | 1 | — | Check availability | |
| 38 | 28535001000 Radiator retaining bracket, le | Radiator retaining bracket, le | 1 | — | Check availability | |
| 39 | 28503093000 Frame cover, front electrics | Frame cover, front electrics | 1 | — | Check availability | |
| 40 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | — | Check availability | |
| 41 | 77307040041 Isolation pad | Isolation pad | 4 | — | Check availability | |
| 42 | 28507049000 fuel tank holder plate screw | fuel tank holder plate screw | 2 | — | Check availability | |
| 43 | 0025080126 HH collar screw M8x12 TX40 | HH collar screw M8x12 TX40 | 2 | — | Check availability | |
| 44 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 4 | — | Check availability | |
| 46 | 2850300108430 Tank holder cast part | Tank holder cast part | 1 | — | Check availability | |
| 48 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 2 | — | Check availability | |
| 49 | 2850508800030S Exhaust bracket | Exhaust bracket | 1 | — | Check availability | |
| 50 | 90111045050 CABLE BRACKET | CABLE BRACKET | 1 | — | Check availability | |
| 51 | 28507052000 Cover, seat lock | Cover, seat lock | 1 | — | Check availability | |
| 52 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 1 | — | Check availability | |
| 53 | 54603048700 Range change metal nut M6 | Range change metal nut M6 | 2 | — | Check availability | |
| 54 | 28542032000 ABS modulator cover | ABS modulator cover | 1 | — | Check availability | |
| 55 | 93007047033 Seat support complete | Seat support complete | 2 | — | Check availability | |
| 56 | 0025080356 HH collar screw M8x35 TX40 | HH collar screw M8x35 TX40 | 2 | — | Check availability | |
| 45 | 58413049000 washer 10.2x20x2.5 mm | washer 10.2x20x2.5 mm | 1 | — | Check availability | |
| 57 | 90108023100 Clip | Clip | 1 | — | Check availability |
