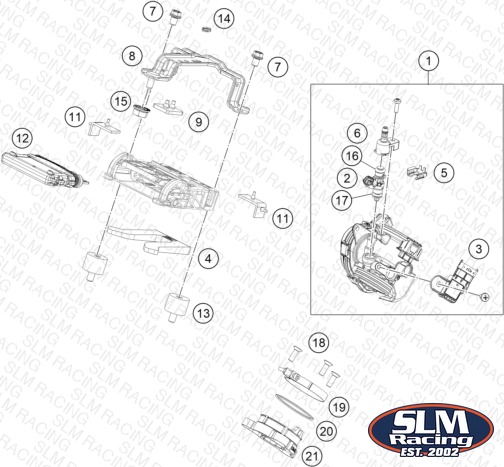

THROTTLE BODY
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28541001000 body throttle assly-electronic | body throttle assly-electronic | 1 | — | Check availability | |
| 2 | 90241023000 FUEL INJECTOR | FUEL INJECTOR | 1 | — | Check availability | |
| 3 | 93041085000 Pressure sensor | Pressure sensor | 1 | — | Check availability | |
| 5 | 90141001001 INJECTOR CLIP | INJECTOR CLIP | 1 | — | Check availability | |
| 6 | 93841037000 CAP INJECTOR | CAP INJECTOR | 1 | — | Check availability | |
| 9 | 93841032000 rubber band, ECU, top | rubber band, ECU, top | 1 | — | Check availability | |
| 11 | 93841036000 rubber band, ECU | rubber band, ECU | 2 | — | Check availability | |
| 12 | 93841031000 Control unit | Control unit | 1 | — | Check availability | |
| 4 | 93041030100 Rubber cowl pad | Rubber cowl pad | 1 | — | Check availability | |
| 13 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 2 | — | Check availability | |
| 8 | 93041030010 ECU Support top | ECU Support top | 1 | — | Check availability | |
| 7 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 2 | — | Check availability | |
| 14 | 93541034000 DAMPER ECU | DAMPER ECU | 1 | — | Check availability | |
| 15 | 0926060000 STOP NUT M6 DIN6926 A2-70 | STOP NUT M6 DIN6926 A2-70 | 1 | — | Check availability | |
| 16 | 55641023020 O-ring | O-ring | 1 | — | Check availability | |
| 17 | 55641023010 O-ring | O-ring | 1 | — | Check availability | |
| 18 | J991060203S COUNTERSUNK SCREW M6X20 | COUNTERSUNK SCREW M6X20 | 3 | — | Check availability | |
| 20 | J770053024 O-RING 53X2,4 | O-RING 53X2,4 | 1 | — | Check availability | |
| 21 | 90241002000 PIPE INTAKE | PIPE INTAKE | 1 | — | Check availability | |
| 19 | 90241002010 hose clamp | hose clamp | 1 | — | Check availability |
