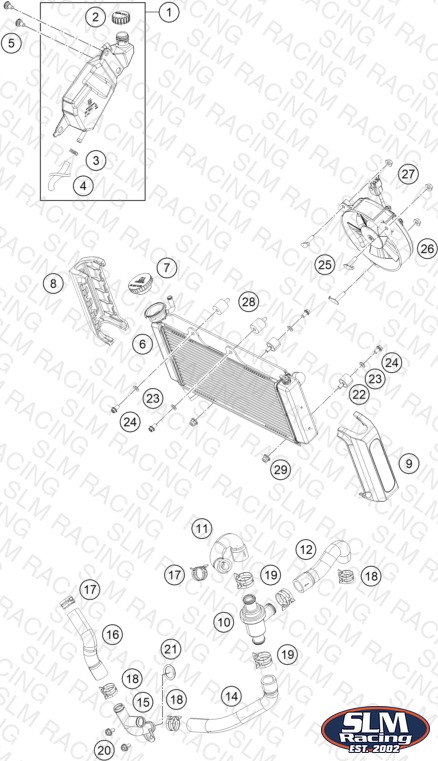

COOLING SYSTEM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28535165033 reservoir cpl. | reservoir cpl. | 1 | — | Check availability | |
| 2 | 60335066044 Latch, compens. tank cpl. | Latch, compens. tank cpl. | 1 | — | Check availability | |
| 3 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 1 | — | Check availability | |
| 4 | 78015019785 HOSE 6X10 L=785 SENTEC | HOSE 6X10 L=785 SENTEC | 1 | — | Check availability | |
| 5 | 69008021040 special screw M6x14 | special screw M6x14 | 2 | — | Check availability | |
| 6 | 90835010100 Radiator | Radiator | 1 | — | Check availability | |
| 7 | 90135016100 RADIATOR CAP | RADIATOR CAP | 1 | — | Check availability | |
| 10 | 90135017000 THERMOSTAT | THERMOSTAT | 1 | — | Check availability | |
| 26 | 28535041044 Radiator fan cmpl. | Radiator fan cmpl. | 1 | — | Check availability | |
| 8 | 2853503200030A Cooler Cowling right | Cooler Cowling right | 1 | — | Check availability | |
| 9 | 2853503100030A Radiator cover, left | Radiator cover, left | 1 | — | Check availability | |
| 25 | 28535041020 radiator fan screw cpl. | radiator fan screw cpl. | 3 | — | Check availability | |
| 27 | 06923060007 Hex.nut w.flange DIN6923-M6-10 | Hex.nut w.flange DIN6923-M6-10 | 3 | — | Check availability | |
| 22 | 90135001001 silentbloc M6 | silentbloc M6 | 2 | — | Check availability | |
| 23 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 2 | — | Check availability | |
| 24 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 4 | — | Check availability | |
| 17 | 00049240121 spring band clamp STD DN24 bla | spring band clamp STD DN24 bla | 2 | — | Check availability | |
| 16 | 90235024030 pre-formed hose radiator-t-pie | pre-formed hose radiator-t-pie | 1 | — | Check availability | |
| 18 | 00049260121 spring band clamp STD DN26 bla | spring band clamp STD DN26 bla | 3 | — | Check availability | |
| 11 | 93035024000 Pre-formed hose | Pre-formed hose | 1 | — | Check availability | |
| 19 | 00049280121 spring band clamp STD DN28 bla | spring band clamp STD DN28 bla | 3 | — | Check availability | |
| 12 | 93035025000 Pre-formed hose | Pre-formed hose | 1 | — | Check availability | |
| 28 | 90235001001 silentbloc M6 | silentbloc M6 | 2 | — | Check availability | |
| 14 | 93035026000 Pre-formed hose | Pre-formed hose | 1 | — | Check availability | |
| 29 | 0926060000 STOP NUT M6 DIN6926 A2-70 | STOP NUT M6 DIN6926 A2-70 | 2 | — | Check availability | |
| 15 | 90635071033 COOLANT PIPE T | COOLANT PIPE T | 1 | — | Check availability | |
| 20 | J025060141 Hex collar screw M6X14 | Hex collar screw M6X14 | 2 | — | Check availability | |
| 21 | J770018530 O-RING 18,5X3 | O-RING 18,5X3 | 1 | — | Check availability |
