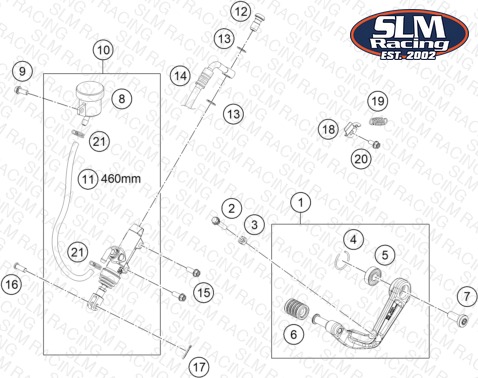

REAR BRAKE CONTROL
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2851305004430S Foot brake pedal cmpl. black | Foot brake pedal cmpl. black | 1 | — | Check availability | |
| 2 | 59009062026 SPECIAL SCREW M6X26 SW=8 10.9 | SPECIAL SCREW M6X26 SW=8 10.9 | 1 | — | Check availability | |
| 3 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 4 | 0993026500 round wire snap ring DIN 7993 | round wire snap ring DIN 7993 | 1 | — | Check availability | |
| 5 | 0625060002 deep groove ball bearing SKF 6 | deep groove ball bearing SKF 6 | 1 | — | Check availability | |
| 6 | 90134035000 GEAR SHIFT LEVER RUBBER | GEAR SHIFT LEVER RUBBER | 1 | — | Check availability | |
| 7 | 0035100249 AH collar screw M10x24 ISA45 | AH collar screw M10x24 ISA45 | 1 | — | Check availability | |
| 8 | 61013069000 reservoir, rear cpl. | reservoir, rear cpl. | 1 | — | Check availability | |
| 9 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 10 | 2851306003330 Rear brake master cylinder | Rear brake master cylinder | 1 | — | Check availability | |
| 12 | 62113020100 banjo bolt M10x1x19.5 | banjo bolt M10x1x19.5 | 2 | — | Check availability | |
| 13 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 14 | 28542001000 brake hose, rear, ABS/brake cy | brake hose, rear, ABS/brake cy | 1 | — | Check availability | |
| 15 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | — | Check availability | |
| 16 | 90113057000 pin for fork end | pin for fork end | 1 | — | Check availability | |
| 17 | 0094020161 Splint pin ISO 1234-2x16-A2 | Splint pin ISO 1234-2x16-A2 | 1 | — | Check availability | |
| 18 | 28513047000 brake hose guide | brake hose guide | 1 | — | Check availability | |
| 19 | 28513052000 Spring brake pedal | Spring brake pedal | 1 | — | Check availability | |
| 20 | 0025060126S Hex collar screw M6x12 ISA30 s | Hex collar screw M6x12 ISA30 s | 1 | — | Check availability | |
| 11 | 69013069001 HOSE FOR RESERVOIR 6X1,5 | HOSE FOR RESERVOIR 6X1,5 | 1 | — | Check availability | View Details |
| 21 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | — | Check availability |
