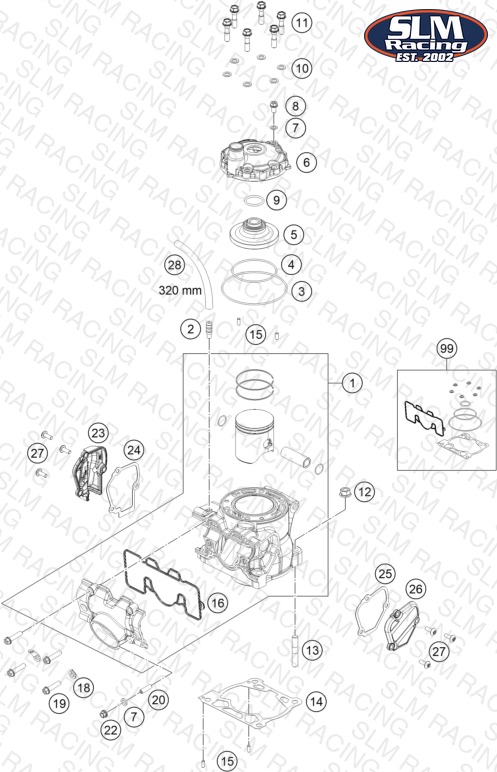

CYLINDER, CYLINDER HEAD
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 51630038000 CYLINDER + PISTON CPL. 150 | CYLINDER + PISTON CPL. 150 | 1 | — | Check availability | View Details |
| 2 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | — | Check availability | |
| 3 | 0770890200 O-RING 89X2 NBR 70 SH | O-RING 89X2 NBR 70 SH | 1 | — | Check availability | |
| 4 | 0770640200 O-RING 64X2 FPM 80SH | O-RING 64X2 FPM 80SH | 1 | — | Check availability | |
| 5 | 51630060000 COMBUSTION CHAMBER INLAY | COMBUSTION CHAMBER INLAY | 1 | — | Check availability | View Details |
| 6 | 51630106000 CYLINDER HEAD | CYLINDER HEAD | 1 | — | Check availability | |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 8 | 0025060106 HH collar screw M6x10 TX30 | HH collar screw M6x10 TX30 | 1 | — | Check availability | |
| 9 | 07702300251 O-ring 23.00X2.5 NBR 70 SH | O-ring 23.00X2.5 NBR 70 SH | 1 | — | Check availability | |
| 10 | 0603070121 CU-SEAL RING DIN7603- 7,3X12X1 | CU-SEAL RING DIN7603- 7,3X12X1 | 6 | — | Check availability | |
| 11 | 50430079000 CYLINDER HEAD SCREW | CYLINDER HEAD SCREW | 6 | — | Check availability | |
| 12 | 50330045000 HH COLLAR NUT M 8 WS=12 | HH COLLAR NUT M 8 WS=12 | 4 | — | Check availability | |
| 13 | 0835080326 STUD DIN 835 M8X32 | STUD DIN 835 M8X32 | 4 | — | Check availability | |
| 14 | 50430035015 CYLINDER BASE GASKET 0.15MM | CYLINDER BASE GASKET 0.15MM | 0 | — | Check availability | |
| 14 | 50430035020 CYLINDER BASE GASKET 0.20MM | CYLINDER BASE GASKET 0.20MM | 0 | — | Check availability | |
| 14 | 50430035025 CYLINDER BASE GASKET 0.25MM | CYLINDER BASE GASKET 0.25MM | 0 | — | Check availability | |
| 14 | 50430035040 CYLINDER BASE GASKET 0.40MM | CYLINDER BASE GASKET 0.40MM | 0 | — | Check availability | |
| 14 | 50430035050 CYLINDER BASE GASKET 0.50MM | CYLINDER BASE GASKET 0.50MM | 0 | — | Check availability | |
| 14 | 50430035075 CYLINDER BASE GASKET 0.75MM | CYLINDER BASE GASKET 0.75MM | 0 | — | Check availability | |
| 15 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 4 | — | Check availability | |
| 16 | 50437046000 GASKET CONNECTION FLANGE | GASKET CONNECTION FLANGE | 1 | — | Check availability | |
| 18 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 19 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 4 | — | Check availability | |
| 20 | 0913060203 THREAD PIN DIN0913-M 6X20 | THREAD PIN DIN0913-M 6X20 | 1 | — | Check availability | |
| 21 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 22 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | — | Check availability | |
| 23 | 5043700700033 EXHAUST CONTROL COVER R/S | EXHAUST CONTROL COVER R/S | 1 | — | Check availability | |
| 24 | 50437008100 Exhaust ctrl cover gasket rhs | Exhaust ctrl cover gasket rhs | 1 | — | Check availability | |
| 25 | 50437006100 Exhaust ctrl cover gasket lhs | Exhaust ctrl cover gasket lhs | 1 | — | Check availability | |
| 26 | 5043700500033 EXHAUST CONTROL COVER L/S | EXHAUST CONTROL COVER L/S | 1 | — | Check availability | |
| 27 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 6 | — | Check availability | |
| 28 | 50335030001 PVC-HOSE 6X9 | PVC-HOSE 6X9 | 0 | — | Check availability | |
| 99 | 50430097000 CYLINDER GASKET SET 125/150 16 | CYLINDER GASKET SET 125/150 16 | 0 | — | Check availability |
