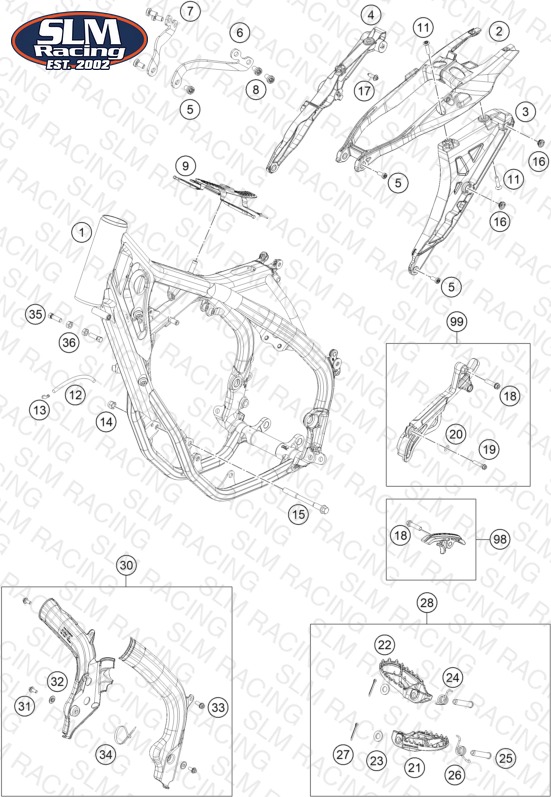

FRAME
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2400300100028 FRAME ''240Q2'' WHITE | FRAME ''240Q2'' WHITE | 1 | — | Check availability | |
| 2 | 2500300201033A Rear frame top | Rear frame top | 1 | — | Check availability | |
| 3 | 25003002020 SUBFRAME L/S | SUBFRAME L/S | 1 | — | Check availability | |
| 4 | 25003002130 SUBFRAME RIGHT | SUBFRAME RIGHT | 1 | — | Check availability | |
| 5 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 4 | — | Check availability | |
| 6 | 50403113000 MOTOR BRACKET LEFT | MOTOR BRACKET LEFT | 1 | — | Check availability | |
| 7 | 50403114000 MOTOR BRACKET RIGHT | MOTOR BRACKET RIGHT | 1 | — | Check availability | |
| 8 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | — | Check availability | |
| 9 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | — | Check availability | |
| 11 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 | COUNTER-SUNK SCREW ISA45 M8X30 | 4 | — | Check availability | |
| 12 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | — | Check availability | |
| 13 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | — | Check availability | |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 15 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 2 | — | Check availability | |
| 16 | 47106003160 quick release rubber grommet | quick release rubber grommet | 4 | — | Check availability | |
| 17 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 1 | — | Check availability | |
| 18 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | — | Check availability | |
| 19 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | — | Check availability | |
| 20 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | — | Check availability | |
| 21 | 79603040000 FOOTREST L/S EXC 2017 | FOOTREST L/S EXC 2017 | 1 | — | Check availability | |
| 22 | 79603041000 FOOTREST R/S EXC 2017 | FOOTREST R/S EXC 2017 | 1 | — | Check availability | |
| 23 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 24 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | — | Check availability | |
| 25 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 26 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | — | Check availability | |
| 27 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 28 | 79603040133 Footrest-Set | Footrest-Set | 1 | — | Check availability | View Details |
| 29 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 2 | — | Check availability | |
| 30 | 7900309400033 FRAME PROTECTION SET BLACK | FRAME PROTECTION SET BLACK | 1 | — | Check availability | |
| 31 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 3 | — | Check availability | |
| 32 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | — | Check availability | |
| 33 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 34 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 0 | — | Check availability | |
| 34 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability | |
| 98 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | — | Check availability | |
| 99 | 55403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | — | Check availability |
