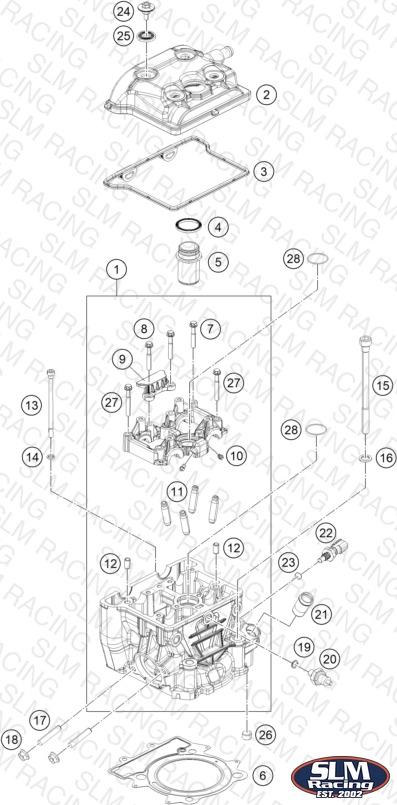

CYLINDER HEAD
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 93736020033C1 CYL.HEAD WITH CAMHOLDER | CYL.HEAD WITH CAMHOLDER | 1 | — | Obsolete | View Details |
| 2 | 93336052100C1 CYLINDER HEAD COVER ASSLY | CYLINDER HEAD COVER ASSLY | 1 | $42.67 | Available | 1 |
| 3 | 93836053000 Gasket rubber | Gasket rubber | 1 | $25.63 | Available | 1 |
| 4 | 90236054000 GASKET SPARK PLUG SHAFT | GASKET SPARK PLUG SHAFT | 1 | $3.99 | Available | 1 |
| 5 | 90236074000 SPARK PLUG SHAFT | SPARK PLUG SHAFT | 1 | $21.59 | Backorder — Restocking | 1 |
| 6 | 93730036000 Cylinder head gasket | Cylinder head gasket | 1 | — | Obsolete | View Details |
| 7 | J025060359 Hexagon screw M6X35 | Hexagon screw M6X35 | 4 | $1.99 | Available | 4 |
| 8 | J025060453 HH COLLAR SCREW M6X45 | HH COLLAR SCREW M6X45 | 2 | $1.99 | Available | 2 |
| 9 | 90236018000 CHAIN GUIDE TOP | CHAIN GUIDE TOP | 1 | $4.99 | Available | 1 |
| 10 | 90130064000 OIL JET | OIL JET | 4 | $7.14 | Available | 4 |
| 11 | 90236025000 VALVE GUIDE | VALVE GUIDE | 4 | $3.99 | Available | 4 |
| 12 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available | 2 |
| 13 | J912061023 SOCKET HEAD SCREW M6X102 | SOCKET HEAD SCREW M6X102 | 2 | $4.99 | Available | 2 |
| 14 | J125070003 WASHER 7X11X2 | WASHER 7X11X2 | 2 | $1.99 | Available | 2 |
| 15 | J912101449 SOCKET HEAD SCREW M10X144 | SOCKET HEAD SCREW M10X144 | 4 | $7.84 | Available | 4 |
| 16 | J125110003 WASHER 11,2X18X2 | WASHER 11,2X18X2 | 4 | $1.99 | Available | 4 |
| 17 | 90136020001 STUD M8 | STUD M8 | 2 | $2.99 | Available | 2 |
| 18 | 90136038000 FLANGED NUT M8 H7,5 WS12 | FLANGED NUT M8 H7,5 WS12 | 2 | $1.99 | Available | 2 |
| 19 | 90138091001 O-RING | O-RING | 1 | $2.99 | Available | 1 |
| 20 | 90138091000 OIL PRESSURE SENSOR | OIL PRESSURE SENSOR | 1 | $19.74 | Available | 1 |
| 21 | 90235019000 PIPE COOLANT | PIPE COOLANT | 1 | $3.99 | Available | 1 |
| 22 | 90135047000 TEMPERATURE SENSOR | TEMPERATURE SENSOR | 1 | $27.59 | Backorder — Restocking | 1 |
| 23 | J770000817800 O-ring 7.65x1.78 | O-ring 7.65x1.78 | 1 | $1.99 | Available | 1 |
| 24 | 90136052020 VALVE COVER SCREW | VALVE COVER SCREW | 4 | $3.99 | Available | 4 |
| 25 | 90136052010 DECOUPLING ELEMENT | DECOUPLING ELEMENT | 4 | $3.99 | Available | 4 |
| 26 | 90236024000 PLUG | PLUG | 1 | $2.99 | Available | 1 |
| 27 | J025060401 HH COLLAR SCREW M6X40 | HH COLLAR SCREW M6X40 | 2 | $1.99 | Available | 2 |
| 28 | J770029819 O-RING 29,8X1,9 | O-RING 29,8X1,9 | 2 | $2.99 | Available | 2 |
