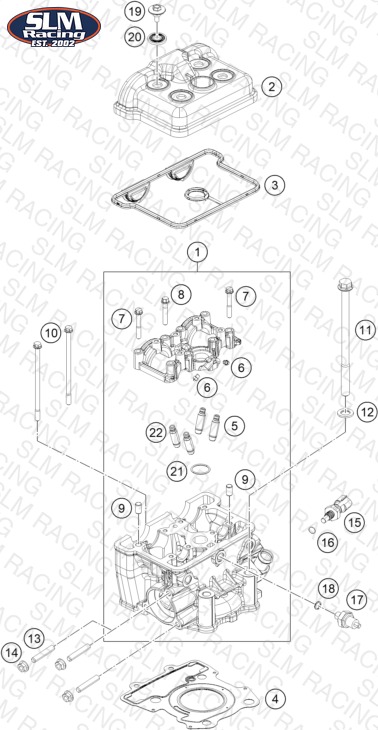

CYLINDER HEAD
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 93636020033C1 JU CYL HEAD WITH CAMHOLDER (SA | JU CYL HEAD WITH CAMHOLDER (SA | 1 | — | Obsolete | View Details |
| 2 | 93336052001C1 Valve cover | Valve cover | 1 | — | Obsolete | View Details |
| 3 | 93536053000 Valve cover gasket | Valve cover gasket | 1 | $23.21 | Available | 1 |
| 4 | 93630036000 Gasket head cylinder | Gasket head cylinder | 1 | — | Obsolete | View Details |
| 5 | 90136025100 VALVE GUIDE | VALVE GUIDE | 2 | — | Obsolete | View Details |
| 6 | 90130064000 OIL JET | OIL JET | 4 | $7.14 | Available | 4 |
| 7 | J025060402 HH-COLLAR SCREW M6X40 WS10 | HH-COLLAR SCREW M6X40 WS10 | 2 | $1.99 | Available | 2 |
| 8 | J025060356 HH-COLLAR SCREW M6X35 WS8 | HH-COLLAR SCREW M6X35 WS8 | 6 | $1.99 | Available | 6 |
| 9 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available | 2 |
| 10 | 90136020005 COLLAR SCREW M6 | COLLAR SCREW M6 | 2 | $2.99 | Available | 2 |
| 11 | 90136020003 HH COLLAR SCREW 10X147,5 | HH COLLAR SCREW 10X147,5 | 4 | $6.15 | Available | 4 |
| 12 | 90130080000 WASHER 11,2X20X2 | WASHER 11,2X20X2 | 4 | $1.99 | Available | 4 |
| 13 | 90136020001 STUD M8 | STUD M8 | 3 | $2.99 | Available | 3 |
| 14 | 90136038000 FLANGED NUT M8 H7,5 WS12 | FLANGED NUT M8 H7,5 WS12 | 3 | $1.99 | Available | 3 |
| 15 | 90135047000 TEMPERATURE SENSOR | TEMPERATURE SENSOR | 1 | $27.59 | Backorder — Restocking | 1 |
| 16 | J770000817800 O-ring 7.65x1.78 | O-ring 7.65x1.78 | 1 | $1.99 | Available | 1 |
| 17 | 90138091000 OIL PRESSURE SENSOR | OIL PRESSURE SENSOR | 1 | $19.74 | Available | 1 |
| 18 | 90138091001 O-RING | O-RING | 1 | $2.99 | Available | 1 |
| 19 | 90136052020 VALVE COVER SCREW | VALVE COVER SCREW | 4 | $3.99 | Available | 4 |
| 20 | 90136052010 DECOUPLING ELEMENT | DECOUPLING ELEMENT | 4 | $3.99 | Available | 4 |
| 21 | J770023019 O-RING 23,7X1,9 | O-RING 23,7X1,9 | 1 | $1.99 | Available | 1 |
| 22 | 93636026000 GUIDE VALVE EXHAUST | GUIDE VALVE EXHAUST | 2 | — | Obsolete | View Details |
