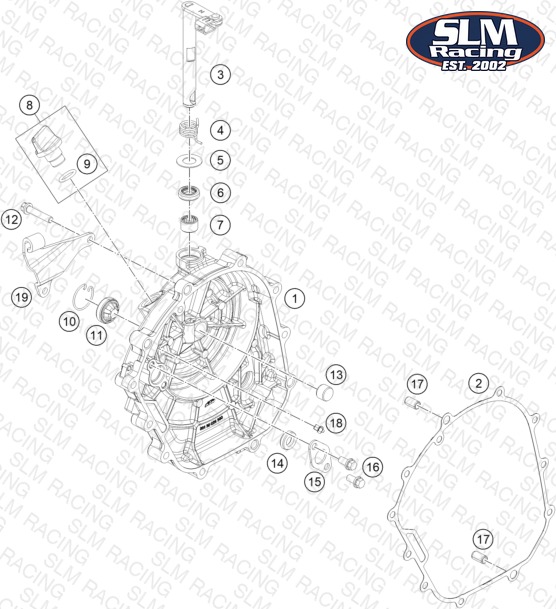

CLUTCH COVER
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 90130626044JA Clutch Cover with plug Beige | Clutch Cover with plug Beige | 1 | — | Obsolete | View Details |
| 2 | 93530027000 Gasket clutch cover | Gasket clutch cover | 1 | $7.15 | Available | 1 |
| 3 | 94032048033 SHAFT ASSEMBLY CLUTCH | SHAFT ASSEMBLY CLUTCH | 1 | $10.22 | Available | 1 |
| 4 | 90132048004 SPRING F. RELEASE LEVER | SPRING F. RELEASE LEVER | 1 | $2.99 | Available | 1 |
| 5 | 90132048005 WASHER 12,5X24X0,8MM | WASHER 12,5X24X0,8MM | 1 | $1.99 | Available | 1 |
| 6 | 90132051000 OIL SEAL RING | OIL SEAL RING | 1 | $3.99 | Available | 1 |
| 7 | 90132050000 needle bearing | needle bearing | 1 | $6.15 | Available | 1 |
| 8 | 90130020000 OIL PLUG CPL. | OIL PLUG CPL. | 1 | $1.99 | Available | 1 |
| 9 | J770013824 O-RING 13,8X2,4 | O-RING 13,8X2,4 | 1 | $1.99 | Backorder — Restocking | 1 |
| 10 | 90130095001 WIRE CIRCLIP 28X1,5 | WIRE CIRCLIP 28X1,5 | 1 | $2.99 | Available | 1 |
| 11 | 90130095100 OIL GAUGE GLASS | OIL GAUGE GLASS | 1 | $6.92 | Available | 1 |
| 12 | J025060301 HH COLLAR SCREW M6X30 | HH COLLAR SCREW M6X30 | 11 | $1.99 | Backorder — Restocking | 11 |
| 13 | 90132054000 PUSH ROD | PUSH ROD | 1 | $2.99 | Available | 1 |
| 14 | 90134027000 Seal - Oil | Seal - Oil | 1 | $2.99 | Available | 1 |
| 15 | 90130026003 Plate Position | Plate Position | 1 | — | Obsolete | View Details |
| 16 | J01665060123S Hex collar screw, M6x12 | Hex collar screw, M6x12 | 2 | $13.74 | Available | 2 |
| 17 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available | 2 |
| 18 | 90130064000 OIL JET | OIL JET | 1 | $7.14 | Available | 1 |
| 19 | 94030059000 BRACKET CABLE CLUTCH | BRACKET CABLE CLUTCH | 1 | $6.15 | Available | 1 |
