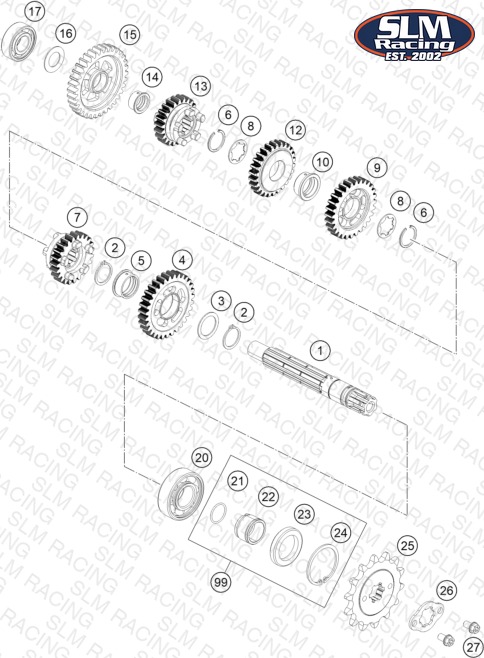

TRANSMISSION II - COUNTERSHAFT
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 93533010000 Shaft Output-Plug | Shaft Output-Plug | 1 | — | Obsolete | View Details |
| 2 | J471020121 CIRCLIP 20X1,2 | CIRCLIP 20X1,2 | 2 | $1.99 | Available | 2 |
| 3 | 90133034000 WASHER 20,2X27X1 | WASHER 20,2X27X1 | 1 | $0.99 | Available | 1 |
| 4 | 90633012100 gear driven second | gear driven second | 1 | — | Obsolete | View Details |
| 5 | 90133001003 BUSHING | BUSHING | 1 | $4.99 | Available | 1 |
| 6 | J471020122 CIRCLIP 20X1,2 | CIRCLIP 20X1,2 | 2 | $1.99 | Available | 2 |
| 7 | 93033015000 Transmission gear wheel, fifth | Transmission gear wheel, fifth | 1 | — | Obsolete | View Details |
| 8 | J900001602600 Washer | Washer | 1 | $1.99 | Available | 1 |
| 9 | 93033013000 Transmission gear wheel, third | Transmission gear wheel, third | 1 | — | Obsolete | View Details |
| 10 | J900002001100 Collar bushing | Collar bushing | 1 | $4.99 | Available | 1 |
| 12 | 90133014000 COUNTERWHEEL 4. GEAR | COUNTERWHEEL 4. GEAR | 1 | $21.77 | Available | 1 |
| 13 | 93033016000 Transmission gear wheel, sixth | Transmission gear wheel, sixth | 1 | — | Obsolete | View Details |
| 14 | 90133001009 BUSHING | BUSHING | 1 | $3.99 | Available | 1 |
| 15 | 90133011000 COUNTERWHEEL 1. GEAR | COUNTERWHEEL 1. GEAR | 1 | $26.83 | Available | 1 |
| 16 | J125150006 Washer 15X26X0,8 | Washer 15X26X0,8 | 1 | — | Obsolete | View Details |
| 17 | 90130004003 BALL BEARING 15X35X11 | BALL BEARING 15X35X11 | 1 | $8.90 | Available | 1 |
| 20 | J625062041 BALL BEARING 6204-Z/HN3 | BALL BEARING 6204-Z/HN3 | 1 | $13.08 | Available | 1 |
| 21 | J770017515 O-RING 17,5X1,5 | O-RING 17,5X1,5 | 1 | $1.99 | Available | 1 |
| 22 | 90133030000 COLLAR SPROCKET | COLLAR SPROCKET | 1 | $6.15 | Available | 1 |
| 23 | 90230077000 OIL SEAL OUTPUT SHAFT | OIL SEAL OUTPUT SHAFT | 1 | $4.99 | Available | 1 |
| 24 | J472037150 CIRCLIP 37X1,5 | CIRCLIP 37X1,5 | 1 | $1.99 | Available | 1 |
| 25 | 90133029014 SPROCKET 14T. | SPROCKET 14T. | 1 | — | Obsolete | View Details |
| 26 | 90110049000 plate drive sprocket | plate drive sprocket | 1 | — | Obsolete | View Details |
| 27 | 90110057000 BOLT M6X10 | BOLT M6X10 | 2 | $1.99 | Available | 2 |
| 99 | 00050000982 COUNTER SHAFT REP.KIT125DUKE | COUNTER SHAFT REP.KIT125DUKE | — | $39.92 | Available | 1 |
