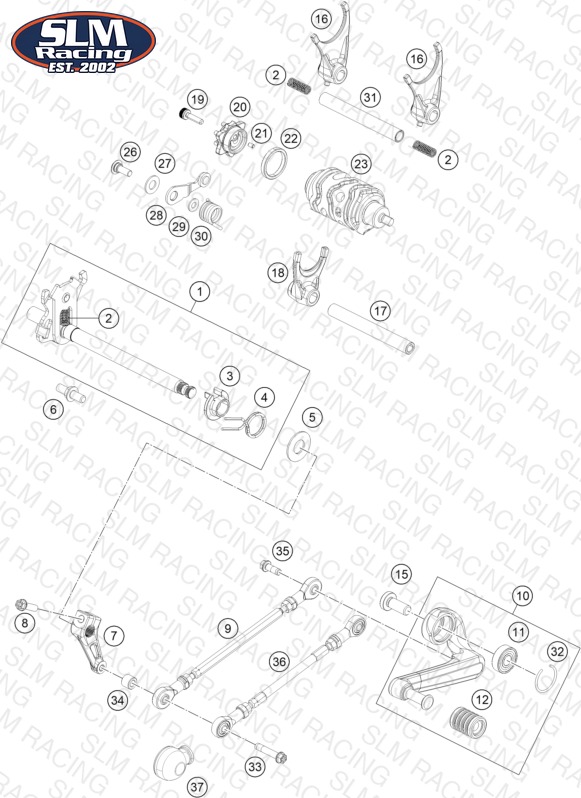

SHIFTING MECHANISM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 90134005033 SHIFT SHAFT CPL. | SHIFT SHAFT CPL. | 1 | $34.52 | Available | 1 |
| 2 | 90134009000 TENSION SPRING | TENSION SPRING | 3 | $1.99 | Available | 3 |
| 3 | 90134022000 SPRING BUSHING | SPRING BUSHING | 1 | $4.99 | Available | 1 |
| 4 | 90134014000 RETURN SPRING | RETURN SPRING | 1 | $4.99 | Available | 1 |
| 5 | 90134050000 STOP DISK 14X30X1,5 | STOP DISK 14X30X1,5 | 1 | $2.99 | Available | 1 |
| 6 | 90134016000 SPRING GUIDE | SPRING GUIDE | 1 | $2.99 | Available | 1 |
| 7 | 93034031010 Linkage gear shift lever | Linkage gear shift lever | 1 | $17.20 | Available | 1 |
| 8 | J025060205 Hex collar screw, M6x20 | Hex collar screw, M6x20 | 1 | $1.99 | Available | 1 |
| 9 | 28634036033 Shift rod cpl. | Shift rod cpl. only for vitpilen | 1 | $48.28 | Available | 1 |
| 10 | 28134031033 Gear shift lever, complete | Gear shift lever, complete | 1 | $115.49 | Available | 1 |
| 11 | J625060000 Grooved ball bearing 6000 | Grooved ball bearing 6000 | 1 | $10.50 | Available | 1 |
| 12 | 90134035000 GEAR SHIFT LEVER RUBBER | GEAR SHIFT LEVER RUBBER | 1 | $2.99 | Available | 1 |
| 15 | J031100206 Roundhead screw, M10x20 | Roundhead screw, M10x20 | 1 | $2.99 | Available | 1 |
| 16 | 93034001000 Shift fork | Shift fork | 2 | $18.47 | Available | 2 |
| 17 | 90134019000 GEAR SHIFT RAIL | GEAR SHIFT RAIL | 1 | $6.15 | Available | 1 |
| 18 | 90134001000 SHIFT FORK MAIN | SHIFT FORK MAIN | 1 | $15.94 | Available | 1 |
| 19 | 90134098000 Bolt socket head M6X1X20 L-pre | Bolt socket head M6X1X20 L-pre | 1 | $1.99 | Available | 1 |
| 20 | 90134015000 SHIFT DRUM LOCATING | SHIFT DRUM LOCATING | 1 | $19.68 | Available | 1 |
| 21 | 90134013000 Parallel pin | Parallel pin | 1 | $1.99 | Available | 1 |
| 22 | 90134012002 SPACER | SPACER | 1 | $3.99 | Available | 1 |
| 23 | 93534012000 Shift drum | Shift drum | 1 | $28.37 | Available | 1 |
| 26 | 90134025000 SCREW LOCKING LEVER | SCREW LOCKING LEVER | 1 | $2.99 | Available | 1 |
| 27 | 90134030000 WASHER LOCKING LEVER | WASHER LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 28 | 90134024033 LOCKING LEVER CPL. | LOCKING LEVER CPL. | 1 | $4.99 | Available | 1 |
| 29 | J125061416 Washer, 6x14x1.2 | Washer, 6x14x1.2 | 1 | $1.99 | Available | 1 |
| 30 | 90134023000 ARRESTING LEVER SPRING | ARRESTING LEVER SPRING | 1 | $2.99 | Available | 1 |
| 31 | 90134190000 GEAR SHIFT RAIL COUNTER | GEAR SHIFT RAIL COUNTER | 1 | $6.15 | Available | 1 |
| 32 | J079932600201 Circlip B26 DIN 7993 | Circlip B26 DIN 7993 | 1 | $1.99 | Available | 1 |
| 33 | J031060306 Roundhead screw, M6x30 | Roundhead screw, M6x30 | 1 | $1.99 | Available | 1 |
| 34 | 28103038050 spacer | spacer | 1 | $2.99 | Available | 1 |
| 35 | 90808043001 BOLT SOCKET M6X1XL | BOLT SOCKET M6X1XL | 1 | $1.99 | Available | 1 |
| 36 | 28134036033 Shift linkage cpl. | Shift linkage cpl. only for svartpilen | 1 | $48.28 | Available | 1 |
| 37 | 28134038010 COVER JOINT BALL | COVER JOINT BALL | 2 | $2.99 | Available | 2 |
