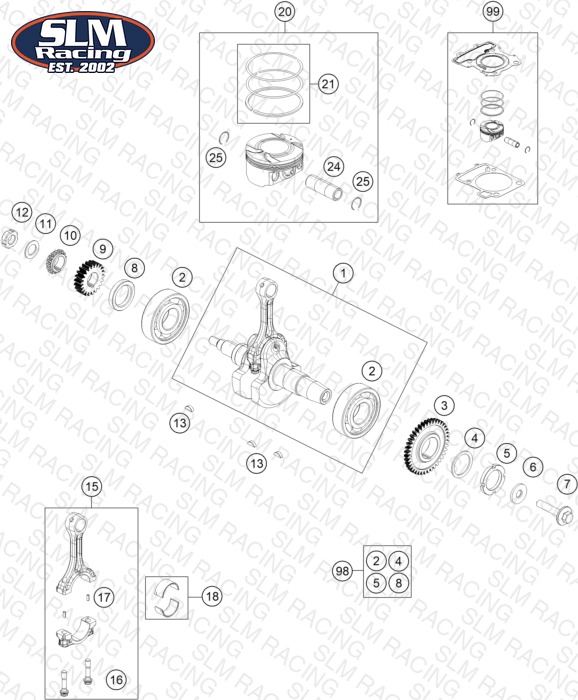

CRANKSHAFT, PISTON
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 90630018000 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $356.50 | Available | 1 |
| 2 | 90130082000 BALL BEARING 63/2/8 HN3CNP | BALL BEARING 63/2/8 HN3CNP | 2 | $27.05 | Available | 2 |
| 3 | 90130018006 DRIVE WHEEL CRANKSH. F. AGW | DRIVE WHEEL CRANKSH. F. AGW | 1 | — | Obsolete | View Details |
| 4 | 90230069000 CONICAL WASHER 28,35X38X1,75 | CONICAL WASHER 28,35X38X1,75 | 1 | $2.99 | Available | 1 |
| 5 | 90130018008 NUT FOR DRIVE WHEEL AGW | NUT FOR DRIVE WHEEL AGW | 1 | $7.84 | Available | 1 |
| 8 | 90130018003 SPACER SHIM | SPACER SHIM | 1 | — | Obsolete | View Details |
| 9 | 90132024000 PRIMARY GEAR 22T. | PRIMARY GEAR 22T. | 1 | $33.21 | Available | 1 |
| 10 | 90136014017 TIMING GEAR 17 T. | TIMING GEAR 17 T. | 1 | $12.20 | Available | 1 |
| 11 | 90130029050 WASHER PRIMARY DRIVE GEAR | WASHER PRIMARY DRIVE GEAR | 1 | $1.99 | Available | 1 |
| 12 | 90132025000 NUT SPROCKET DRIVE LOCK M14 | NUT SPROCKET DRIVE LOCK M14 | 1 | $2.99 | Available | 1 |
| 13 | J888040050 WOODRUFF KEY 4X5X13 | WOODRUFF KEY 4X5X13 | 3 | $2.99 | Available | 3 |
| 15 | 90630015000 CONROD CPL. | CONROD CPL. | 1 | $83.92 | Available | 1 |
| 16 | 90630015001 CONROD BOLT | CONROD BOLT | 2 | $3.99 | Available | 2 |
| 17 | 90630015002 PARALLEL PIN | PARALLEL PIN | 2 | $2.99 | Available | 2 |
| 18 | 90630015010 CONROD BEARING SHELL | CONROD BEARING SHELL | 1 | $11.65 | Available | 1 |
| 18 | 90630015011 CONROD BEARING SHELL (GREEN) | CONROD BEARING SHELL (GREEN) | — | $4.99 | Available | 1 |
| 18 | 90630015012 CONROD BEARING SHELL (BLUE) | CONROD BEARING SHELL (BLUE) | — | $14.29 | Available | 1 |
| 20 | 90630007000 PISTON CPL. | PISTON CPL. | 1 | $77.98 | Available | 1 |
| 21 | 90630030010 PISTON RINGS CPL. | PISTON RINGS CPL. | 1 | $24.74 | Available | 1 |
| 24 | 90630033000 PISTON BOLT | PISTON BOLT | 1 | $8.02 | Available | 1 |
| 25 | 90630074000 CIRCLIP | CIRCLIP | 2 | $1.99 | Available | 2 |
| 98 | 00050002314 CRANKSHAFT REP. KIT DUKE | CRANKSHAFT REP. KIT DUKE | — | $72.15 | Available | 1 |
| 99 | 00050000215 PISTON KIT 200 DUKE 12-13 | PISTON KIT 200 DUKE 12-13 | — | $267.29 | Available | 1 |
| 6 | J021100003 WASHER 10,3X29X3,2 | WASHER 10,3X29X3,2 | 1 | $2.99 | Available | 1 |
| 7 | J025100509S FLANGED BOLT M10X1,25X55 | FLANGED BOLT M10X1,25X55 | 1 | $3.99 | Available | 1 |
