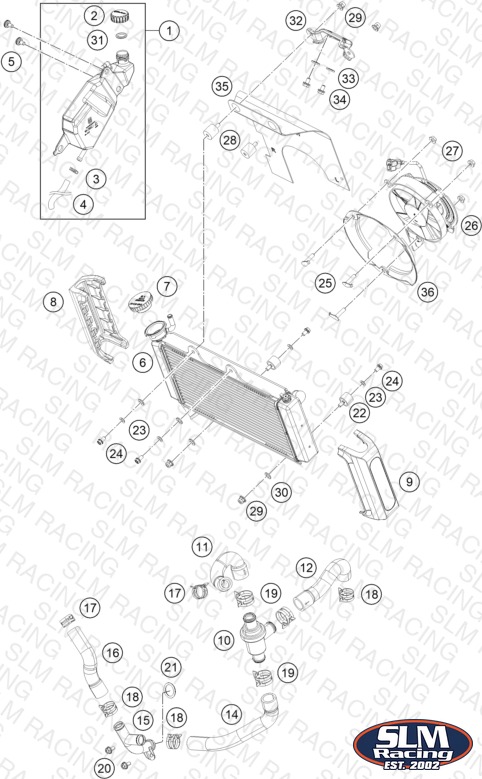

COOLING SYSTEM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28635065033 Reservoir cmpl. | Reservoir cmpl. | 1 | — | Check availability | |
| 2 | 90135066000 PLUG F. EXPANSION TANK | PLUG F. EXPANSION TANK | 1 | — | Check availability | |
| 3 | 90107018011 CLAMP 10MM | CLAMP 10MM | 1 | — | Check availability | |
| 5 | 93008040000 Screw M6X1X13 | Screw M6X1X13 | 2 | — | Check availability | |
| 6 | 28335010000 Radiator | Radiator | 1 | — | Check availability | |
| 7 | 90135016100 RADIATOR CAP | RADIATOR CAP | 1 | — | Check availability | |
| 8 | 28535032100 Radiator cover right | Radiator cover right | 1 | — | Check availability | |
| 9 | 28535031100 Radiator cover left | Radiator cover left | 1 | — | Check availability | |
| 10 | 90135017000 THERMOSTAT | THERMOSTAT | 1 | — | Check availability | |
| 11 | 93035026100 Radiator hose | Radiator hose | 1 | — | Check availability | |
| 12 | 93035028000 Radiator hose | Radiator hose | 1 | — | Check availability | |
| 14 | 94035026000 Pipe thermostat-joint t pcs. | Pipe thermostat-joint t pcs. | 1 | — | Check availability | |
| 15 | 90635071033 COOLANT PIPE T | COOLANT PIPE T | 1 | — | Check availability | |
| 16 | 90135024030 RADIATORHOSE RADI.-COOLL.'' T | RADIATORHOSE RADI.-COOLL.'' T | 1 | — | Check availability | |
| 17 | 90135020000 HOSE CLAMP D23 | HOSE CLAMP D23 | 2 | — | Check availability | |
| 18 | 90135020001 hose clamp D26 | hose clamp D26 | 3 | — | Check availability | |
| 19 | 90135020003 HOSE CLAMP D28 | HOSE CLAMP D28 | 3 | — | Check availability | |
| 20 | J025060141 Hex collar screw M6X14 | Hex collar screw M6X14 | 2 | — | Check availability | |
| 21 | J770018530 O-RING 18,5X3 | O-RING 18,5X3 | 1 | — | Check availability | |
| 22 | 90135001001 silentbloc M6 | silentbloc M6 | 2 | — | Check availability | |
| 23 | J127060001 Spring ring B6 | Spring ring B6 | 4 | — | Check availability | |
| 24 | J025060103 HH COLLAR SCREW M6X10 SW10 | HH COLLAR SCREW M6X10 SW10 | 4 | — | Check availability | |
| 26 | 93235041033 Fan cpl. | Fan cpl. | 1 | — | Check availability | |
| 28 | 90235001001 silentbloc M6 | silentbloc M6 | 2 | — | Check availability | |
| 29 | J926060000 FLANGED NUT M6 WS10 SELF LOCK. | FLANGED NUT M6 WS10 SELF LOCK. | 4 | — | Check availability | |
| 30 | 90108015020 WASHER | WASHER | 4 | — | Check availability | |
| 31 | 90102055000 COMPENSATING TANK O-RING | COMPENSATING TANK O-RING | 1 | — | Check availability | |
| 32 | 93035004000 Support | Support | 1 | — | Check availability | |
| 33 | J125090006 Washer 9,2X16X2 | Washer 9,2X16X2 | 2 | — | Check availability | |
| 34 | J025060101 Hexagon screw M6X10 | Hexagon screw M6X10 | 2 | — | Check availability | |
| 35 | 93005090000 shield | shield | 1 | — | Check availability | |
| 36 | 28135041010 shroud | shroud | 1 | — | Check availability | |
| 4 | 28635067000 Connecting hose for radiator r | Connecting hose for radiator r | 1 | — | Check availability | |
| 26 | 93535141044 radiator fan assembly | radiator fan assembly only for Columbia | 1 | — | Check availability |
