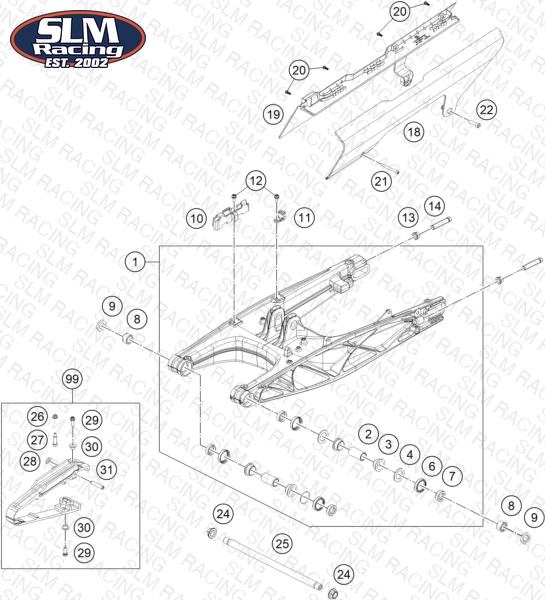

SWING ARM
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28104030044C1 Swing Arm Sub Assy Husqvarna 4 | Swing Arm Sub Assy Husqvarna 4 | 1 | — | Check availability | |
| 2 | 90104032000 sleeve bushing 15.1x20x38 | sleeve bushing 15.1x20x38 | 2 | — | Check availability | |
| 3 | 90104031000 Igus plain bearing | Igus plain bearing | 4 | — | Check availability | |
| 4 | 90104036000 Thrust washer 22.2x31.7x1 | Thrust washer 22.2x31.7x1 | 2 | — | Check availability | |
| 6 | 90104034001 OIL SEAL RING 25X32X7 | OIL SEAL RING 25X32X7 | 4 | — | Check availability | |
| 7 | 90104034000 cup for radial shaft seal | cup for radial shaft seal | 4 | — | Check availability | |
| 8 | 90104046000 swingarm adjusting ring | swingarm adjusting ring | 2 | — | Check availability | |
| 9 | 90104042000 hex thrust washer | hex thrust washer | 2 | — | Check availability | |
| 10 | 93013047000 Support | Support | 1 | — | Check availability | |
| 11 | 90113047000 brake hose guide | brake hose guide | 1 | — | Check availability | |
| 12 | J011050133 HH COLLAR SCREW M5X13 SW8 | HH COLLAR SCREW M5X13 SW8 | 2 | — | Check availability | |
| 13 | 90104010002 flanged hex nut M10x1.25 WS13 | flanged hex nut M10x1.25 WS13 | 2 | — | Check availability | |
| 14 | 90104040000 BOLT HEX M10X1.25X50 WS10 | BOLT HEX M10X1.25X50 WS10 | 2 | — | Check availability | |
| 18 | 28104061000 Chainguard fairing | Chainguard fairing | 1 | — | Check availability | |
| 19 | 28104062000 Chainguard | Chainguard | 1 | — | Check availability | |
| 20 | J981420133 SHEET MET.SCR. DIN 7981 4,2X13 | SHEET MET.SCR. DIN 7981 4,2X13 | 4 | — | Check availability | |
| 21 | 93004065000 hexagon socket screw M5X0.8X55 | hexagon socket screw M5X0.8X55 | 1 | — | Check availability | |
| 22 | J912060162 Hexagon socket screw, M6X16 | Hexagon socket screw, M6X16 | 2 | — | Check availability | |
| 24 | 90104038000 FLANGED NUT M14X1.5 | FLANGED NUT M14X1.5 | 1 | — | Check availability | |
| 25 | 90104037000 Shaft swing arm L=299mm | Shaft swing arm L=299mm | 1 | — | Check availability | |
| 26 | 90204060001 HH COLLAR NUT | HH COLLAR NUT | 1 | — | Check availability | |
| 27 | 90104040100 screw M5x0.8x30 | screw M5x0.8x30 | 1 | — | Check availability | |
| 28 | 90504067000 WASHER CHAIN SLIDING GUARD | WASHER CHAIN SLIDING GUARD | 1 | — | Check availability | |
| 29 | J025060169 HH COLLAR SCREW M6X16 SW8 | HH COLLAR SCREW M6X16 SW8 | 2 | — | Check availability | |
| 30 | 90604062000 chain slider bushing | chain slider bushing | 2 | — | Check availability | |
| 31 | 90904070020 SLEEVE CHAIN GUARD | SLEEVE CHAIN GUARD | 1 | — | Check availability | |
| 99 | 90104066310 CHAIN GUARD KIT 125/200 | CHAIN GUARD KIT 125/200 | — | — | Check availability |
