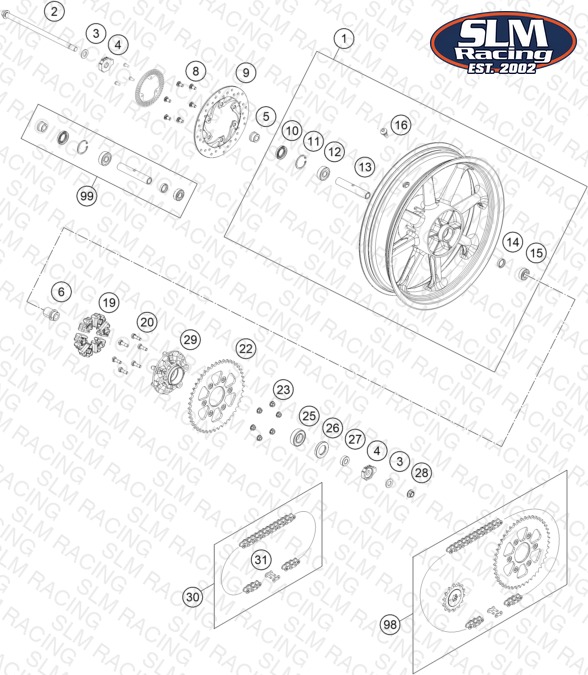

REAR WHEEL
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 28110101044C1A Rear wheel cpl. black | Rear wheel cpl. black | 1 | — | Check availability | |
| 2 | 90210085000 Axle rear KT03 | Axle rear KT03 | 1 | — | Check availability | |
| 3 | 90610087000 washer 15.2x30x2 | washer 15.2x30x2 | 1 | — | Check availability | |
| 4 | 90110084000 chain tension adjuster, right | chain tension adjuster, right | 2 | — | Check availability | |
| 5 | 90110013000 SPACER BUSHING REAR WHEEL R/S | SPACER BUSHING REAR WHEEL R/S | 1 | — | Check availability | |
| 6 | 90610054000 SPACER BUSHING KRT INSIDE | SPACER BUSHING KRT INSIDE | 1 | — | Check availability | |
| 8 | 90110062000 SPECIAL SCREW M8X25 SELF LOCK. | SPECIAL SCREW M8X25 SELF LOCK. | 6 | — | Check availability | |
| 9 | 90110060000 rear brake disk D=230mm | rear brake disk D=230mm | 1 | — | Check availability | |
| 10 | J760264208 SHAFT SEAL RING 26X42X8 | SHAFT SEAL RING 26X42X8 | 1 | — | Check availability | |
| 11 | J472042170 CIRCLIP | CIRCLIP | 1 | — | Check availability | |
| 12 | J625063021 Grooved ball bearing 6302 | Grooved ball bearing 6302 | 1 | — | Check availability | |
| 13 | 90110011000 BEARING SPACER TUBE REAR | BEARING SPACER TUBE REAR | 1 | — | Check availability | |
| 14 | 90109011001 Fixation bearing spacer tube | Fixation bearing spacer tube | 1 | — | Check availability | |
| 15 | J625062023 BALL BEARING 6202 | BALL BEARING 6202 | 1 | — | Check availability | |
| 16 | 90109076000 VALVE CPL. | VALVE CPL. | 1 | — | Check availability | |
| 19 | 90210059100 rear wheel dampening rubber | rear wheel dampening rubber | 6 | — | Check availability | |
| 20 | 90810052000 SPECIAL SCREW M8X48 | SPECIAL SCREW M8X48 | 6 | — | Check availability | |
| 22 | 90910051142 SPROCKET 42T | SPROCKET 42T | 1 | — | Check availability | |
| 23 | 90510052000 FLANGED NUT M8X1,25 | FLANGED NUT M8X1,25 | 6 | — | Check availability | |
| 25 | J625062050 BALL BEARING 6205 | BALL BEARING 6205 | 1 | — | Check availability | |
| 26 | J760295207 SHAFT SEAL RING 29X52X7 | SHAFT SEAL RING 29X52X7 | 1 | — | Check availability | |
| 27 | 90110053000 SPACER CHAIN WHEEL SUPPORT | SPACER CHAIN WHEEL SUPPORT | 1 | — | Check availability | |
| 28 | 90210086000 wheel spindle nut, rear | wheel spindle nut, rear | 1 | — | Check availability | |
| 29 | 90210050000 SPROCKET SUPPORT | SPROCKET SUPPORT | 1 | — | Check availability | |
| 30 | 76910065118 chain DID 118 roll | chain DID 118 roll | 1 | — | Check availability | |
| 98 | 00050002058 DRIVETRAIN KIT DUKE 2015 | DRIVETRAIN KIT DUKE 2015 | — | — | Check availability | |
| 99 | 90110015100 REAR WHEEL REP. KIT 390 DUKE | REAR WHEEL REP. KIT 390 DUKE | — | — | Check availability | View Details |
| 31 | 76910066000 Rivet link chain DID 520 VP2-T | Rivet link chain DID 520 VP2-T | — | — | Check availability |
