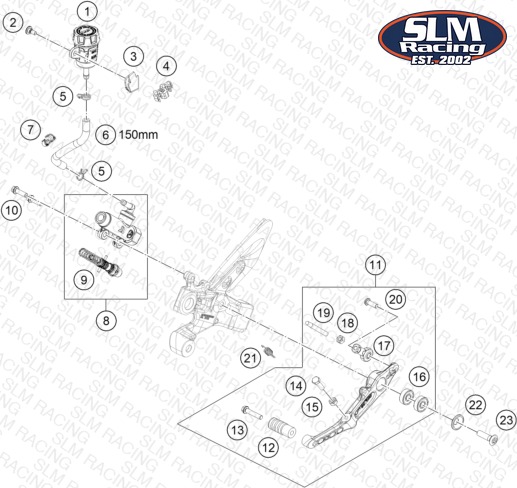

REAR BRAKE CONTROL
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 11 | A67613050044C1 Brake pedal cmpl. | Brake pedal cmpl. | 1 | — | Check availability | |
| 16 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 12 | 64103060051 Brake pedal tread Duke | Brake pedal tread Duke | 1 | — | Check availability | |
| 13 | 0025060256S SK-BUNDSCHRAUBE M6X25 ISA30 | SK-BUNDSCHRAUBE M6X25 ISA30 | 1 | — | Check availability | |
| 19 | 54603068000 PRESSURE ROD ALU 250 '90 | PRESSURE ROD ALU 250 '90 | 1 | — | Check availability | |
| 17 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. | SWIVEL HEAD M6 FOOT BRAKE LEV. | 1 | — | Check availability | |
| 14 | 04017060201 Hexagon Screw M6x20-8.8 black | Hexagon Screw M6x20-8.8 black | 1 | — | Check availability | |
| 15 | 0934060001 hexagon nut DIN 934 M6 black | hexagon nut DIN 934 M6 black | 1 | — | Check availability | |
| 18 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 22 | 64134031020 Fasson Disc D=23x5 | Fasson Disc D=23x5 | 1 | — | Check availability | |
| 23 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 | COUNTER-SUNK SCREW ISA45 M8X30 | 1 | — | Check availability | |
| 21 | 61013052000 SPRING FOOT BRAKE LEVER 05 | SPRING FOOT BRAKE LEVER 05 | 1 | — | Check availability | |
| 20 | 0738060185S oval head screw M6x18 A2-70 S | oval head screw M6x18 A2-70 S | 1 | — | Check availability | |
| 2 | 69013099050 Screw for expansion tank | Screw for expansion tank | 1 | — | Check availability | |
| 9 | 64113061000 Piston assembly | Piston assembly | 1 | — | Check availability | |
| 1 | 64113069100 Expansion Tank | Expansion Tank | 1 | — | Check availability | |
| 5 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | — | Check availability | |
| 6 | 57313072001 Hose reservoir 6x1,5 | Hose reservoir 6x1,5 | 1 | — | Check availability | |
| 8 | 64113060100C1 Rear master cylinder cpl. | Rear master cylinder cpl. | 1 | — | Check availability | |
| 3 | 64113026000 Brake line holder | Brake line holder | 1 | — | Check availability | |
| 4 | 64142046000 Bracket ABS line dia7.5 | Bracket ABS line dia7.5 | 1 | — | Check availability | |
| 7 | 76913047010 spacer bracket D=6/8,5mm | spacer bracket D=6/8,5mm | 1 | — | Check availability | |
| 10 | 0025060206S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 24 | 64113129020 Diaphragm foot master cylinder | Diaphragm foot master cylinder | 1 | — | Check availability |
