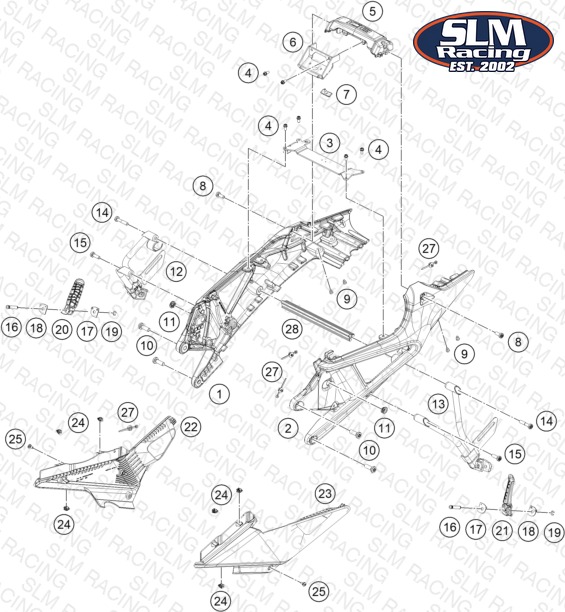

SUBFRAME
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A67603002020BH Subframe right | Subframe right | 1 | $392.69 | Available | 1 |
| 2 | A67603002010BH Subframe left | Subframe left | 1 | $397.49 | Available | 1 |
| 3 | A67603002030 Cross-bracing subframe | Cross-bracing subframe | 1 | $41.79 | Available | 1 |
| 4 | 0025060126S Hex collar screw M6x12 ISA30 s | Hex collar screw M6x12 ISA30 s | 6 | $1.99 | Available | 6 |
| 5 | A67603002060BH Brace subframe | Brace subframe | 1 | $179.79 | Available | 1 |
| 6 | A67603002070 Cross-bracing subframe | Cross-bracing subframe | 1 | $75.78 | Available | 1 |
| 7 | 21007049000 Rubber seat cowl pad | Rubber seat cowl pad | 1 | $4.99 | Available | 1 |
| 8 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 2 | $6.26 | Available | 2 |
| 9 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 4 | $2.99 | Available | 4 |
| 10 | 0035100309S AH collar screw M10x30 ISA45 | AH collar screw M10x30 ISA45 | 4 | $3.99 | Available | 4 |
| 11 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | $4.99 | Available | 2 |
| 12 | A67603049000C1 Footpeg bracket rear right | Footpeg bracket rear right | 1 | $196.89 | Available | 1 |
| 13 | A67603048000C1 Footpeg bracket rear left | Footpeg bracket rear left | 1 | $185.01 | Available | 1 |
| 14 | 0035080406S ISA collar screw M8x40 ISA45 | ISA collar screw M8x40 ISA45 | 2 | $2.99 | Available | 2 |
| 15 | 0035080256S ISA collar screw M8x25 ISA45 | ISA collar screw M8x25 ISA45 | 2 | $2.99 | Available | 2 |
| 16 | 60003044100 footrest bolt, rear | footrest bolt, rear | 2 | $9.45 | Available | 2 |
| 17 | 60003152000 ENGAGE PANEL FOOTREST L/S 03 | ENGAGE PANEL FOOTREST L/S 03 | 2 | $6.15 | Available | 2 |
| 18 | 60003052000 ENGAGE PANEL FOOTREST R/S 03 | ENGAGE PANEL FOOTREST R/S 03 | 2 | $6.15 | Available | 2 |
| 19 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 2 | $1.99 | Available | 2 |
| 20 | 60003051000 Footrest cmpl. r/s rear 03 | Footrest cmpl. r/s rear 03 | 1 | $72.81 | Available | 1 |
| 21 | 60003050000 FOOTREST CPL. L/S REAR 03 | FOOTREST CPL. L/S REAR 03 | 1 | $72.26 | Available | 1 |
| 22 | A67606041033C1 Intake port screen right compl | Intake port screen right compl | 1 | $75.45 | Available | 1 |
| 23 | A67606040033C1 Intake snorkel left cmpl. | Intake snorkel left cmpl. | 1 | $75.45 | Available | 1 |
| 24 | 61908040030 Bracket for side fairing | Bracket for side fairing | 6 | $1.99 | Available | 6 |
| 25 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | $4.99 | Available | 2 |
| 27 | 61711094100 Cable strap w.plug-in foot for | Cable strap w.plug-in foot for | 4 | $2.99 | Backorder — Restocking | 4 |
| 28 | 64103004100 Brace subframe | Brace subframe | 1 | $32.66 | Available | 1 |
