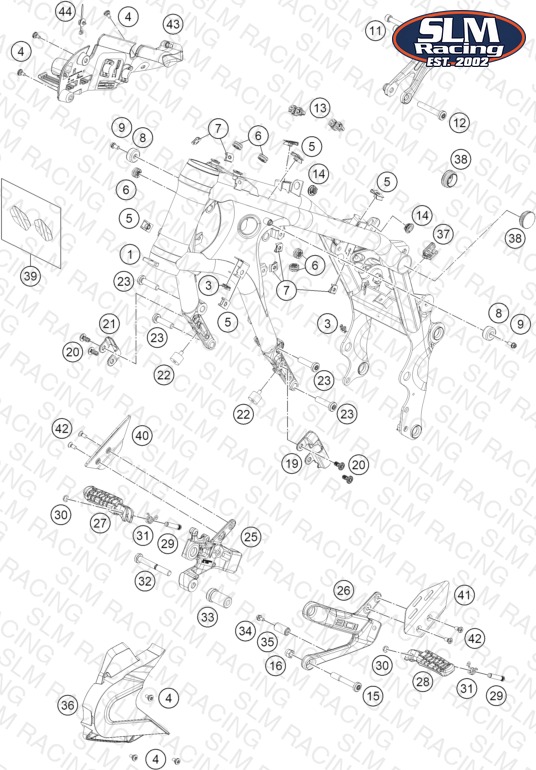

FRAME
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 64103001200C1 Frame | Frame | 1 | $1019.47 | Available | 1 |
| 3 | 69008021080 clip nut M5 | clip nut M5 | 2 | $3.99 | Available | 2 |
| 4 | 69008021160 special screw M5x12 | special screw M5x12 | 6 | $4.99 | Available | 6 |
| 5 | 54603048100 clip nut M6 | clip nut M6 | 5 | $4.99 | Available | 5 |
| 6 | 62142041000 DAMP. COMPONENT ABS MODUL | DAMP. COMPONENT ABS MODUL | 5 | $4.99 | Available | 5 |
| 7 | 54603048200 RANGE CHANGE METAL NUT M5 | RANGE CHANGE METAL NUT M5 | 5 | $6.15 | Available | 5 |
| 8 | 50307014100 Tank support | Tank support | 2 | $6.15 | Available | 2 |
| 9 | 0025060126S Hex collar screw M6x12 ISA30 s | Hex collar screw M6x12 ISA30 s | 2 | $1.99 | Available | 2 |
| 10 | C90703013000C1 Engine strut black | Engine strut black | 1 | $54.99 | Out of Stock | Notify Me |
| 11 | 014579080506S Cap head bold M8x50 ISR 45 | Cap head bold M8x50 ISR 45 | 2 | $6.15 | Available | 2 |
| 12 | 0035100609S AH-COLLAR SCREW M10X60 ISA45 | AH-COLLAR SCREW M10X60 ISA45 | 1 | $10.99 | Available | 1 |
| 13 | 64142046000 Bracket ABS line dia7.5 | Bracket ABS line dia7.5 | 2 | $2.99 | Backorder — Restocking | 2 |
| 14 | 47106003160 quick release rubber grommet | quick release rubber grommet | 1 | $4.99 | Available | 1 |
| 15 | 0035100656S ISA screw, M10x65 ISA45 | ISA screw, M10x65 ISA45 | 1 | $8.24 | Available | 1 |
| 16 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 1 | $2.99 | Available | 1 |
| 19 | 64103034000 Cable Guidance left | Cable Guidance left | 1 | — | Obsolete | View Details |
| 20 | 64103034120 Fastening plugs M8 | Fastening plugs M8 | 4 | $11.76 | Backorder — Restocking | 4 |
| 21 | 64103035000 Cable Guidance right | Cable Guidance right | 1 | — | Obsolete | View Details |
| 22 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 2 | $16.38 | Available | 2 |
| 23 | 0035100459S ISA screw M10x45 ISA45 fully t | ISA screw M10x45 ISA45 fully t | 4 | $1.99 | Available | 4 |
| 25 | A67603039000C1 Footpeg bracket front right | Footpeg bracket front right | 1 | $80.07 | Available | 1 |
| 26 | A67603038000C1 Footpeg bracket front left | Footpeg bracket front left | 1 | $77.32 | Available | 1 |
| 27 | 61003051000 FOOTREST FRONT R/S CPL. 05 | FOOTREST FRONT R/S CPL. 05 | 1 | $57.96 | Available | 1 |
| 28 | 61003050000 FOOTREST FRONT L/S CPL. 05 | FOOTREST FRONT L/S CPL. 05 | 1 | $59.06 | Available | 1 |
| 29 | 60003044100 footrest bolt, rear | footrest bolt, rear | 2 | $9.45 | Available | 2 |
| 30 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 2 | $1.99 | Available | 2 |
| 31 | 76003042000 RETURN SPRING FOOTREST | RETURN SPRING FOOTREST | 2 | $3.99 | Obsolete | View Details |
| 32 | 0035100809S ISA collar screw M10x80 ISA45 | ISA collar screw M10x80 ISA45 | 1 | $3.99 | Available | 1 |
| 33 | 6410303900133 Distance piece | Distance piece | 1 | $14.95 | Available | 1 |
| 34 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 1 | $1.99 | Available | 1 |
| 35 | 6410303800133 Roller | Roller | 1 | $7.91 | Available | 1 |
| 36 | 64103096000 Sprocket Cover | Sprocket Cover | 1 | $28.92 | Available | 1 |
| 37 | 64111059020 Cable holder, attachable | Cable holder, attachable | 1 | $3.99 | Available | 1 |
| 38 | 64103088000 Frame locking cap | Frame locking cap | 2 | $2.99 | Available | 2 |
| 39 | A67603093000 Frame protection sticker | Frame protection sticker | 1 | $10.77 | Available | 1 |
| 40 | A6760313901001 Heel protector right | Heel protector right | 1 | $59.72 | Available | 1 |
| 41 | A6760313801001 Heel protector left | Heel protector left | 1 | $59.72 | Available | 1 |
| 42 | 0145810601400S C.sunk screw ISO14581-M6x14-A2 | C.sunk screw ISO14581-M6x14-A2 | 4 | $0.99 | Available | 4 |
| 43 | A67603083033 Frame cover right preass. | Frame cover right preass. | 1 | $36.69 | Backorder — Restocking | 1 |
| 44 | 61711094100 Cable strap w.plug-in foot for | Cable strap w.plug-in foot for | 1 | $2.99 | Backorder — Restocking | 1 |
