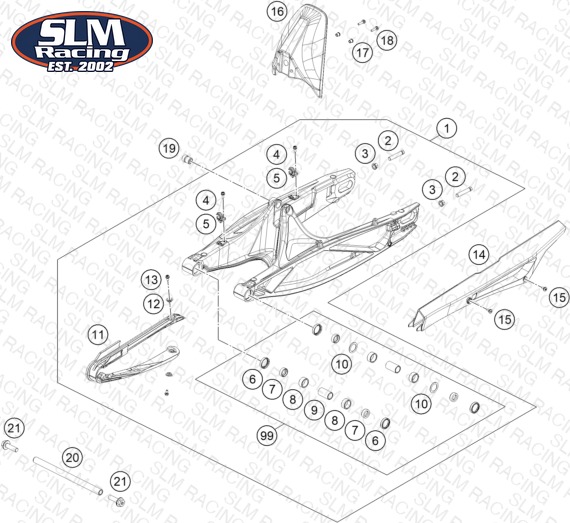

SWING ARM
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 6410403004433 Swingarm cpl. black | Swingarm cpl. black | 1 | $1178.97 | Available | 1 |
| 2 | 50304040100 screw M10x1.25x50 WS10 | screw M10x1.25x50 WS10 | 2 | $6.15 | Available | 2 |
| 3 | 58414030000 HH COLLAR NUT M10X1,25 WS=13 | HH COLLAR NUT M10X1,25 WS=13 | 2 | $2.99 | Available | 2 |
| 4 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 5 | 60104142000 Clamp | Clamp | 2 | $2.99 | Available | 2 |
| 6 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 7 | 54804034000 Bucket f. shaft seal ring 03 | Bucket f. shaft seal ring 03 | 4 | $15.83 | Available | 4 |
| 8 | 0618222812 Needle bushing HK2212V 22/28/1 | Needle bushing HK2212V 22/28/1 | 4 | $11.54 | Available | 4 |
| 9 | 59404032000 Bearing sleeve 17x22x38.7 03 | Bearing sleeve 17x22x38.7 03 | 2 | $11.87 | Available | 2 |
| 10 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 11 | 64104066000 chain slide protection | chain slide protection | 1 | $29.14 | Available | 1 |
| 12 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 | BUSH FOR CHAINSLIDER GUARD 02 | 2 | $9.78 | Available | 2 |
| 13 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 2 | $1.99 | Available | 2 |
| 14 | 64104061000 chainguard | chainguard | 1 | — | Obsolete | View Details |
| 15 | 69008021160 special screw M5x12 | special screw M5x12 | 2 | $4.99 | Available | 2 |
| 16 | A67604050000C1 Splash protection | Splash protection | 1 | $23.31 | Available | 1 |
| 17 | 64104150010 Bushing 5.5x8.3x9 | Bushing 5.5x8.3x9 | 2 | $2.99 | Available | 2 |
| 18 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 2 | $2.99 | Available | 2 |
| 19 | A63604030020 Shock absorber support bushing | Shock absorber support bushing | 1 | $10.99 | Available | 1 |
| 20 | 64104037000 swing arm bolt | swing arm bolt | 1 | $69.18 | Available | 1 |
| 21 | 76504038000 Special screw M12x40 WS19 | Special screw M12x40 WS19 | 2 | $21.33 | Available | 2 |
| 99 | 79004030010 SWING ARM REPAIR KIT SX-F | SWING ARM REPAIR KIT SX-F | — | $153.00 | Available | 1 |
