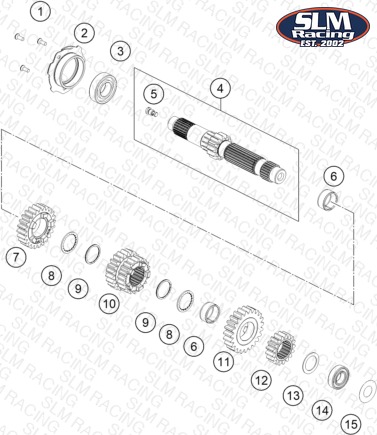

TRANSMISSION I - MAIN SHAFT
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | C010642060166S Hex screw ISO10642-M6x16 self- | Hex screw ISO10642-M6x16 self- | 3 | $1.99 | Available | 3 |
| 2 | C90030068000 Bearing flange | Bearing flange | 1 | $65.00 | Out of Stock | Notify Me |
| 3 | C0006252801600 Grooved ball bearing 62/28 C3 | Grooved ball bearing 62/28 C3 | 1 | $14.99 | Available | 1 |
| 4 | 63633001044 Main shaft preassembled | Main shaft preassembled | 1 | $114.50 | Available | 1 |
| 5 | 63533001030 Reducing jet D0.3mm M8 | Reducing jet D0.3mm M8 | 1 | $10.22 | Available | 1 |
| 6 | 0405242813G NEEDLE BEAR.K 24X28X13 DIVIDED | NEEDLE BEAR.K 24X28X13 DIVIDED | 2 | $21.77 | Available | 2 |
| 7 | 63533005000 Idler gear 5. G | Idler gear 5. G | 1 | $46.85 | Backorder — Restocking | 1 |
| 8 | 63533045000 toothed washer | toothed washer | 2 | $3.99 | Available | 2 |
| 9 | 0471026000 circlip d26 | circlip d26 | 2 | $4.99 | Available | 2 |
| 10 | 63533003000 Sliding gear 3/4 G | Sliding gear 3/4 G | 1 | $74.49 | Available | 1 |
| 11 | 63533006000 Idler gear 6. G | Idler gear 6. G | 1 | $48.06 | Available | 1 |
| 12 | 63533002000 Solid gear 2. G | Solid gear 2. G | 1 | $21.11 | Available | 1 |
| 13 | 63533032000 stop disc 22.2/31.7/1 | stop disc 22.2/31.7/1 | 1 | $3.62 | Available | 1 |
| 14 | C0625068912 Deep groove ball bearings 22x4 | Deep groove ball bearings 22x4 | 1 | — | Obsolete | View Details |
| 15 | C90033088000 sealing washer 22x44x0.2 | sealing washer 22x44x0.2 | 1 | $2.99 | Out of Stock | Notify Me |
