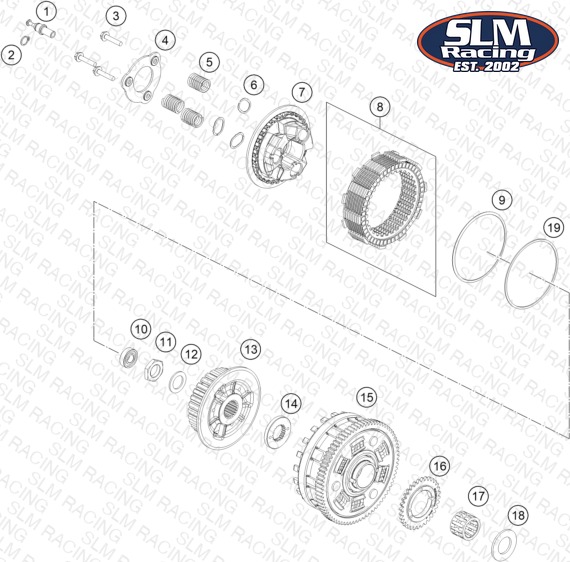

CLUTCH
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | C63532048104 tension bolt | tension bolt | 1 | $11.21 | Available | 1 |
| 2 | C0471120010 retaining ring DIN 471 12x1 | retaining ring DIN 471 12x1 | 1 | $1.99 | Available | 1 |
| 3 | 63532044000 Collar screw M6x30 | Collar screw M6x30 | 3 | $4.99 | Available | 3 |
| 4 | 63532006000 Arrestor Pressure Cap | Arrestor Pressure Cap | 1 | $17.48 | Available | 1 |
| 5 | 63532005000 Clutch spring | Clutch spring | 3 | $9.89 | Available | 3 |
| 6 | 63532041000 Clutch spring cover | Clutch spring cover | 3 | $8.79 | Available | 3 |
| 7 | 63532003000 Pressure Plate | Pressure Plate | 1 | $112.41 | Available | 1 |
| 8 | 63532011010 Disc Pack | Disc Pack | 1 | — | Obsolete | View Details |
| 9 | 63532034000 Belleville Spring | Belleville Spring | 1 | $22.87 | Available | 1 |
| 10 | 0625060017 BALL BEARING 6001.2URS.C3 | BALL BEARING 6001.2URS.C3 | 1 | $22.21 | Available | 1 |
| 11 | C90036073150 hex nut M20x1,. H=6mm | hex nut M20x1,. H=6mm | 1 | $7.47 | Available | 1 |
| 12 | 0252012103100 Wedge lock washer HLS 20 | Wedge lock washer HLS 20 | 1 | $6.15 | Available | 1 |
| 13 | 63532002000 center clutch | center clutch | 1 | $174.89 | Available | 1 |
| 14 | 63532021000 Spline Washer | Spline Washer | 1 | $35.74 | Available | 1 |
| 15 | 63532001044 Clutch Cage cpl. | Clutch Cage cpl. | 1 | $800.24 | Available | 1 |
| 16 | C90038001232 Oil pump gear 32th | Oil pump gear 32th | 1 | $37.06 | Out of Stock | Notify Me |
| 17 | 0405263525 Needle bearing PK26x35x24.8 | Needle bearing PK26x35x24.8 | 1 | $75.01 | Available | 1 |
| 18 | C90032020000 Washer, 26/47/2.8 | Washer, 26/47/2.8 | 1 | $6.15 | Available | 1 |
| 19 | 63532035000 Seat Judder Spring | Seat Judder Spring | 1 | $8.24 | Available | 1 |
