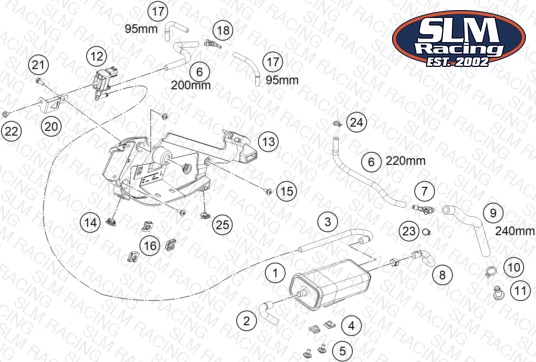

EVAPORATIVE CANISTER
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | C90715001000 Evaporative canister | Evaporative canister | 1 | — | Check availability | |
| 2 | 64115021000 ventilation hose evap. can. | ventilation hose evap. can. | 1 | — | Check availability | |
| 3 | A67615021000 Evaporative canister pre-forme | Evaporative canister pre-forme | 1 | — | Check availability | |
| 4 | 54603048300 RANGE CHANGE METAL NUT M6 INOX | RANGE CHANGE METAL NUT M6 INOX | 5 | — | Check availability | |
| 5 | 83008000012 special screw M6x12x3 | special screw M6x12x3 | 2 | — | Check availability | |
| 6 | 78015019000 HOSE EPA D=6/10 L=2000MM | HOSE EPA D=6/10 L=2000MM | — | — | Check availability | |
| 7 | 61315028100 Y-CONNECTOR YS 6-10-6 | Y-CONNECTOR YS 6-10-6 | 1 | — | Check availability | |
| 8 | A67615023000 Evaporative canister pre-forme | Evaporative canister pre-forme | 1 | — | Check availability | |
| 9 | 78015119000 HOSE EPA D=10/16 L=2000MM | HOSE EPA D=10/16 L=2000MM | — | — | Check availability | |
| 10 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | — | Check availability | |
| 11 | 61315026100 Screw plug ACF | Screw plug ACF | 1 | — | Check availability | |
| 12 | A62415015000 Purge valve | Purge valve | 1 | — | Check availability | |
| 13 | A67603082033 Frame cover left preass. | Frame cover left preass. | 1 | — | Check availability | |
| 14 | 47106003160 quick release rubber grommet | quick release rubber grommet | 2 | — | Check availability | |
| 15 | 69008021160 special screw M5x12 | special screw M5x12 | 3 | — | Check availability | |
| 17 | 78015021000 HOSE EPA D=4/8 L=2000MM | HOSE EPA D=4/8 L=2000MM | — | — | Check availability | |
| 18 | 64115026000 Hose connection nozzles | Hose connection nozzles | 1 | — | Check availability | |
| 20 | A67603082010 Bracket for knock sensor | Bracket for knock sensor | 1 | — | Check availability | |
| 21 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 1 | — | Check availability | |
| 22 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 23 | 00050109706 stepless one-ear clamp | stepless one-ear clamp | 1 | — | Check availability | |
| 24 | 58007117000 YDNAC-CLAMP 10107 10MM | YDNAC-CLAMP 10107 10MM | 1 | — | Check availability | |
| 25 | 54603048600 RANGE CHANGE METAL NUT M5 INOX | RANGE CHANGE METAL NUT M5 INOX | 1 | — | Check availability |
