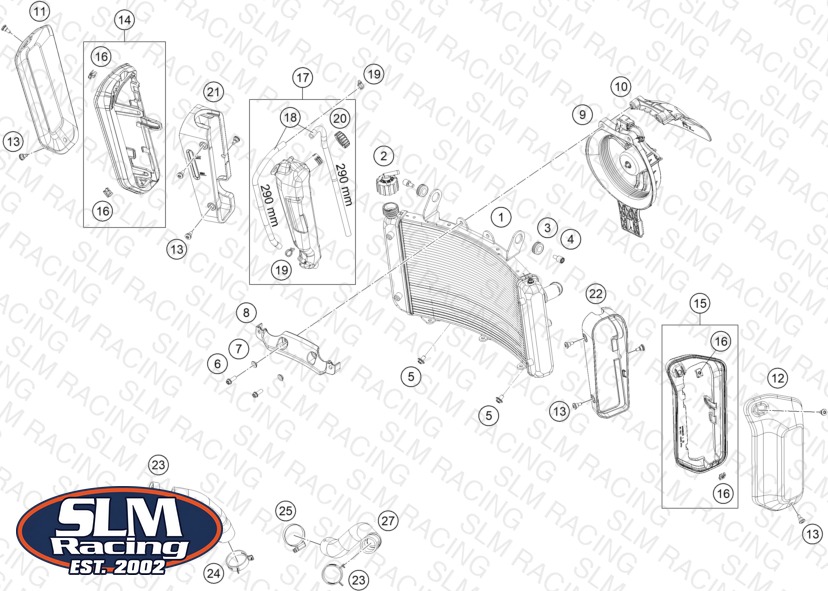

COOLING SYSTEM
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A67635010000 Radiator | Radiator | 1 | — | Check availability | |
| 2 | 62535009000 RADIATOR CAP 1,4 BAR | RADIATOR CAP 1,4 BAR | 1 | — | Check availability | |
| 3 | 41001052000 RUBBER SLEEVE D=12MM | RUBBER SLEEVE D=12MM | 2 | — | Check availability | |
| 4 | 69035001000 STUD BOLT M6 11X11 ISA45 | STUD BOLT M6 11X11 ISA45 | 2 | — | Check availability | |
| 5 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 2 | — | Check availability | |
| 6 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 2 | — | Check availability | |
| 7 | 69004060150 bushing chain protection | bushing chain protection | 2 | — | Check availability | |
| 8 | A67635033000 Radiator cover | Radiator cover | 1 | — | Check availability | |
| 9 | 64135044033 Fan cover cpl. | Fan cover cpl. | 1 | — | Check availability | |
| 10 | 63635042000 Air deflector, radiator | Air deflector, radiator | 1 | — | Check availability | |
| 11 | A6760816100001 Fairings front right | Fairings front right | 1 | — | Check availability | |
| 12 | A6760816000001 Fairings front left | Fairings front left | 1 | — | Check availability | |
| 13 | 69008021260 Special screw, M5x14 | Special screw, M5x14 | 10 | — | Check availability | |
| 14 | A67608161033 Bracket fairings fr. ri. Svart | Bracket fairings fr. ri. Svart | 1 | — | Check availability | |
| 15 | A67608160033 Bracket fairings fr. le. Svart | Bracket fairings fr. le. Svart | 1 | — | Check availability | |
| 16 | 54603048600 RANGE CHANGE METAL NUT M5 INOX | RANGE CHANGE METAL NUT M5 INOX | 4 | — | Check availability | |
| 17 | A67635065033 Reservoir preass. | Reservoir preass. | 1 | — | Check availability | |
| 18 | 60035067001 HOSE 6X10 EPDM 03 | HOSE 6X10 EPDM 03 | 2 | — | Check availability | |
| 19 | 59007017000 CLAMP YDNAC 10096F (9,6MM) | CLAMP YDNAC 10096F (9,6MM) | 2 | — | Check availability | |
| 20 | 60335066044 Latch, compens. tank cpl. | Latch, compens. tank cpl. | 1 | — | Check availability | |
| 21 | A67608059000 Radiator spoiler internal righ | Radiator spoiler internal righ | 1 | — | Check availability | |
| 22 | A67608058000 Radiator spoiler internal left | Radiator spoiler internal left | 1 | — | Check availability | |
| 23 | 00049320121 CLAMP STD DN32 | CLAMP STD DN32 | 2 | — | Check availability | View Details |
| 24 | 00049380121 Spring band clamp STD DN38 | Spring band clamp STD DN38 | 1 | — | Check availability | |
| 25 | 10001120000 Hose clamp 25-40 SGT 4 | Hose clamp 25-40 SGT 4 | 1 | — | Check availability | |
| 26 | 63635026000 Pre-formed hose, radiator | Pre-formed hose, radiator | 1 | — | Check availability | |
| 27 | 63635027100 Pre-formed hose, radiator | Pre-formed hose, radiator | 1 | — | Check availability |
