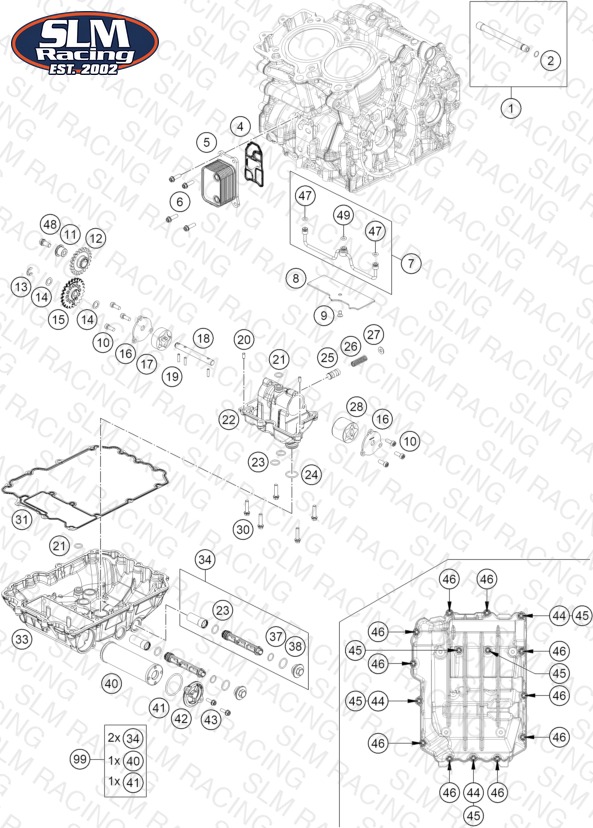

LUBRICATING SYSTEM
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 63530065000 Gearbox lubrication pipe cmpl. | Gearbox lubrication pipe cmpl. | 1 | $33.98 | Available | 1 |
| 2 | C0770010010 o-ring 10.00x1.00 NBR70 | o-ring 10.00x1.00 NBR70 | 1 | $1.99 | Available | 1 |
| 4 | C90038051000 Gasket with support sheet | Gasket with support sheet | 1 | $14.73 | Available | 1 |
| 5 | C90038050000 oil-water-heater exchanger | oil-water-heater exchanger | 1 | $66.65 | Out of Stock | Notify Me |
| 6 | C0000250602000S HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 4 | $1.99 | Out of Stock | Notify Me |
| 7 | C90038035000 oil line | oil line | 1 | $22.87 | Out of Stock | Notify Me |
| 8 | C63530086010 pressure plate | pressure plate | 1 | $9.12 | Available | 1 |
| 9 | C0000190501200S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | $1.99 | Available | 1 |
| 10 | C014580060126S Cylinder head bolt ISO 14580 M | Cylinder head bolt ISO 14580 M | 6 | $1.99 | Available | 6 |
| 11 | C63638003000 Bearing bolt | Bearing bolt | 1 | $10.22 | Available | 1 |
| 12 | C90038001022 oil pump idler wheel 22 teeth | oil pump idler wheel 22 teeth | 1 | $29.36 | Backorder — Restocking | 1 |
| 13 | C0799080000 Lock washer DIN 6799 - RS 8 | Lock washer DIN 6799 - RS 8 | 1 | $1.99 | Backorder — Restocking | 1 |
| 14 | C90038007010 Washer 10x16x0.5 | Washer 10x16x0.5 | 1 | $1.99 | Available | 1 |
| 15 | C90038001224 Oil pump gear 24T | Oil pump gear 24T | 1 | $12.20 | Backorder — Restocking | 1 |
| 16 | C90038008050 Oil pump cover | Oil pump cover | 2 | $10.00 | Out of Stock | Notify Me |
| 17 | C90038009014 Eaton pump set 14 mm | Eaton pump set 14 mm | 1 | $21.88 | Out of Stock | Notify Me |
| 18 | C90038002000 Oil pump shaft | Oil pump shaft | 1 | $16.38 | Backorder — Restocking | 1 |
| 19 | C0402041580 Needle roller 4x15.8 G2 NRB | Needle roller 4x15.8 G2 NRB | 3 | $1.99 | Available | 3 |
| 20 | C0402050980 needle roller DIN 5402 5x9.8 | needle roller DIN 5402 5x9.8 | 2 | $1.99 | Backorder — Restocking | 2 |
| 21 | C0770120020 O-ring 12x2 | O-ring 12x2 | 2 | $1.99 | Available | 2 |
| 22 | C90038012000 Oil pump housing | Oil pump housing | 1 | $76.55 | Backorder — Restocking | 1 |
| 23 | C0770140200 O-ring 14x2 | O-ring 14x2 | 4 | $1.99 | Backorder — Restocking | 4 |
| 24 | C0770020020 O-ring 20x2 VITON | O-ring 20x2 VITON | 1 | $1.99 | Available | 1 |
| 25 | C90038128000 Control piston | Control piston | 1 | $10.00 | Available | 1 |
| 26 | C90038026000 Oil compression spring | Oil compression spring | 1 | $6.15 | Available | 1 |
| 27 | C90037073000 Shim | Shim | 1 | $2.99 | Available | 1 |
| 28 | C90038010000 Eaton pump set 30 mm | Eaton pump set 30 mm | 1 | $41.24 | Backorder — Restocking | 1 |
| 30 | C0000250602500 HH collar screw M6x25 ISA30 | HH collar screw M6x25 ISA30 | 5 | $0.99 | Available | 5 |
| 31 | C90030086100 Oil sump gasket | Oil sump gasket | 1 | $16.38 | Available | 1 |
| 33 | C90030085000C1 Oil pan | Oil pan | 1 | $104.38 | Backorder — Restocking | 1 |
| 34 | 61238021200 Oil screen cmpl. | Oil screen cmpl. | 2 | $30.79 | Available | 2 |
| 37 | 0770125015 O-RING 12,5X1,5 NBR | O-RING 12,5X1,5 NBR | 2 | $2.99 | Available | 2 |
| 38 | 0770170200 O-RING 17,00X2,00 | O-RING 17,00X2,00 | 2 | $2.99 | Available | 2 |
| 40 | C90038015200 Oil filter | Oil filter | 1 | $16.99 | Available | 1 |
| 41 | C07700390261 O-RING 39,34X2,62 | O-RING 39,34X2,62 | 1 | $2.99 | Available | 1 |
| 42 | C90038041200 Oil filter cover | Oil filter cover | 1 | $17.48 | Out of Stock | Notify Me |
| 43 | C0000250501600 HH collar screw M5x16 ISA30 | HH collar screw M5x16 ISA30 | 2 | $0.99 | Available | 2 |
| 44 | C90030024000 Dowel | Dowel | 3 | $3.99 | Available | 3 |
| 45 | C0000250603500 HH collar screw M6x35 ISA30 | HH collar screw M6x35 ISA30 | 5 | $0.99 | Available | 5 |
| 46 | C0000250603000 HH collar screw M6x30 ISA30 | HH collar screw M6x30 ISA30 | 10 | $0.99 | Available | 10 |
| 47 | C0770060025 O-ring 6x2,5 | O-ring 6x2,5 | 2 | $1.99 | Available | 2 |
| 48 | C0000250801600S HH collar screw M8x16 TX40 SL | HH collar screw M8x16 TX40 SL | 1 | $0.99 | Available | 1 |
| 49 | C0770070025 O-ring 7x2,5 | O-ring 7x2,5 | 1 | $1.99 | Available | 1 |
| 99 | C00050000068 Oil filter service kit | Oil filter service kit | — | $91.73 | Available | 1 |
