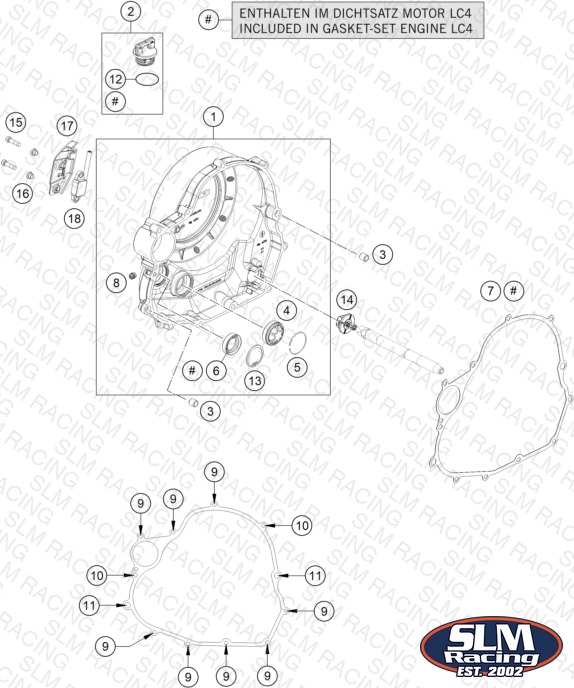

CLUTCH COVER
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 76830001244JA Clutch cover cmpl. | Clutch cover cmpl. | 1 | — | Check availability | |
| 14 | 76834050000 magnet holder | magnet holder | 1 | — | Check availability | |
| 2 | 58030020100 oil plug cpl. M24x3 | oil plug cpl. M24x3 | 1 | — | Check availability | |
| 3 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 4 | 59030019200 OIL SIGHT GLASS | OIL SIGHT GLASS | 1 | — | Check availability | |
| 5 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | — | Check availability | |
| 6 | 0760172861 SHAFT SEAL RING 17X28X6 FKM | SHAFT SEAL RING 17X28X6 FKM | 1 | — | Check availability | |
| 7 | 75030025000 CLUTCH CASE GASKET 07 | CLUTCH CASE GASKET 07 | 1 | — | Check availability | |
| 8 | 59030296000 SCREW PLUG | SCREW PLUG | 1 | — | Check availability | |
| 9 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 9 | — | Check availability | |
| 10 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | — | Check availability | |
| 11 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | — | Check availability | |
| 12 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | — | Check availability | |
| 13 | 0472280120 CIRCLIP DIN0472-28X1,2 | CIRCLIP DIN0472-28X1,2 | 1 | — | Check availability | |
| 15 | 014580050203S Cap hd. screw DIN14580 M5x20 P | Cap hd. screw DIN14580 M5x20 P | 2 | — | Check availability | |
| 16 | 78003023070 SPACER BUSH. SPRING BRACKET | SPACER BUSH. SPRING BRACKET | 2 | — | Check availability | View Details |
| 17 | 76834052000 Quickshifter sensor cover | Quickshifter sensor cover | 1 | — | Check availability | |
| 18 | 61434051000 Shift shaft sensor | Shift shaft sensor | 1 | — | Check availability |
