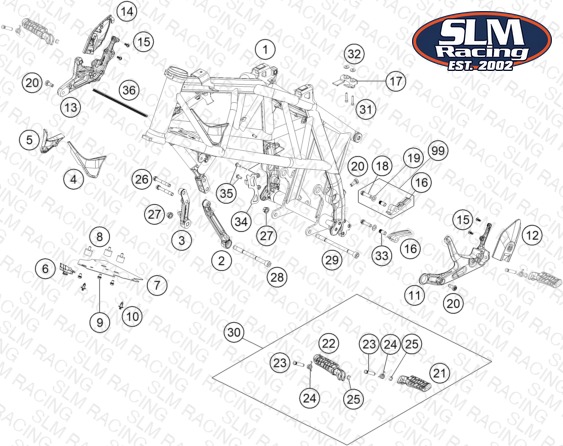

FRAME
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 21003001000301 Frame 210RA | Frame 210RA | 1 | $2397.88 | Out of Stock | Notify Me |
| 27 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 2 | $1.99 | Available | 2 |
| 28 | 75603015000 SPECIAL SCREW M10X129 HEX8 08 | SPECIAL SCREW M10X129 HEX8 08 | 1 | $9.23 | Available | 1 |
| 29 | 75003014000 SPECIAL SCREW M10X152 ISK8 07 | SPECIAL SCREW M10X152 ISK8 07 | 1 | $7.91 | Available | 1 |
| 16 | 54804067000 CHAIN SLIDING PIECE 03 | CHAIN SLIDING PIECE 03 | 2 | $6.15 | Available | 2 |
| 18 | 0025080306S HH COLLAR SCREW M8X30 TX40 | HH COLLAR SCREW M8X30 TX40 | 2 | $3.62 | Available | 2 |
| 17 | 21011057050 Bracket Purge Valve | Bracket Purge Valve | 1 | $30.90 | Available | 1 |
| 4 | 21003085050 Front frame cover left 2 | Front frame cover left 2 | 1 | $11.76 | Available | 1 |
| 5 | 21003086050 Front frame cover right 2 | Front frame cover right 2 | 1 | $11.76 | Available | 1 |
| 2 | 7500300104901 CONNECTION BRACKET ENG. L/S 07 | CONNECTION BRACKET ENG. L/S 07 | 1 | $53.67 | Available | 1 |
| 3 | 7500310104901 CONNECTION BRACKET ENG. R/S 07 | CONNECTION BRACKET ENG. R/S 07 | 1 | $48.83 | Available | 1 |
| 6 | 21003088000 Splash guard head-tube | Splash guard head-tube | 1 | $7.69 | Available | 1 |
| 7 | 21003087000 Splash protection, head tube | Splash protection, head tube | 1 | $14.07 | Available | 1 |
| 10 | 76503075100 EXPANDING RIVET CPL. | EXPANDING RIVET CPL. | 2 | $3.99 | Available | 2 |
| 8 | 43205062100 silentbloc 20x15-M6x10-(1) | silentbloc 20x15-M6x10-(1) | 3 | $16.38 | Available | 3 |
| 9 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 3 | $2.99 | Available | 3 |
| 11 | 2100303800001 Front footpeg bracket, left | Front footpeg bracket, left | 1 | $409.85 | Available | 1 |
| 13 | 2100303900001 Front footpeg bracket, right | Front footpeg bracket, right | 1 | $166.53 | Available | 1 |
| 12 | 21003038050 Heelguard left | Heelguard left | 1 | $7.58 | Available | 1 |
| 14 | 21003039050 Heelguard right | Heelguard right | 1 | $7.58 | Available | 1 |
| 15 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 4 | $2.99 | Available | 4 |
| 19 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 2 | $1.99 | Available | 2 |
| 20 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 3 | $6.26 | Available | 3 |
| 21 | 61003050000 FOOTREST FRONT L/S CPL. 05 | FOOTREST FRONT L/S CPL. 05 | 1 | $59.06 | Available | 1 |
| 24 | 61003042000 SPRING FOOTREST FRONT 05 | SPRING FOOTREST FRONT 05 | 2 | $6.15 | Available | 2 |
| 25 | 0799060003 retaining washer DIN 6799 - 6 | retaining washer DIN 6799 - 6 | 2 | $1.99 | Available | 2 |
| 23 | 60003044000 BOLT FOR FOOTREST REAR 03 | BOLT FOR FOOTREST REAR 03 | 2 | $10.44 | Available | 2 |
| 22 | 61003051000 FOOTREST FRONT R/S CPL. 05 | FOOTREST FRONT R/S CPL. 05 | 1 | $57.96 | Available | 1 |
| 26 | 014579080506S Cap head bold M8x50 ISR 45 | Cap head bold M8x50 ISR 45 | 2 | $6.15 | Available | 2 |
| 30 | 76003040033 FOOTRESTS CPL. | FOOTRESTS CPL. | 1 | $154.76 | Available | 1 |
| 31 | 0912040253 AH SCREW DIN0912-M 4X25 | AH SCREW DIN0912-M 4X25 | 2 | $1.99 | Available | 2 |
| 32 | 61041088050 SHIM 4,3X15X1,25MM GALVANIZED | SHIM 4,3X15X1,25MM GALVANIZED | 2 | $1.99 | Available | 2 |
| 33 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 2 | $4.99 | Available | 2 |
| 99 | 54804067010 CHAIN SLIDING KIT UPPER CPL. | CHAIN SLIDING KIT UPPER CPL. | 1 | $24.41 | Available | 1 |
| 34 | 21003001089 Cable guide, right | Cable guide, right | 1 | — | Obsolete | View Details |
| 35 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 2 | $3.99 | Available | 2 |
| 36 | 76003095210 KANTENSCHUTZ 9.5X6.5X210 | KANTENSCHUTZ 9.5X6.5X210 | 1 | $21.44 | Available | 1 |
