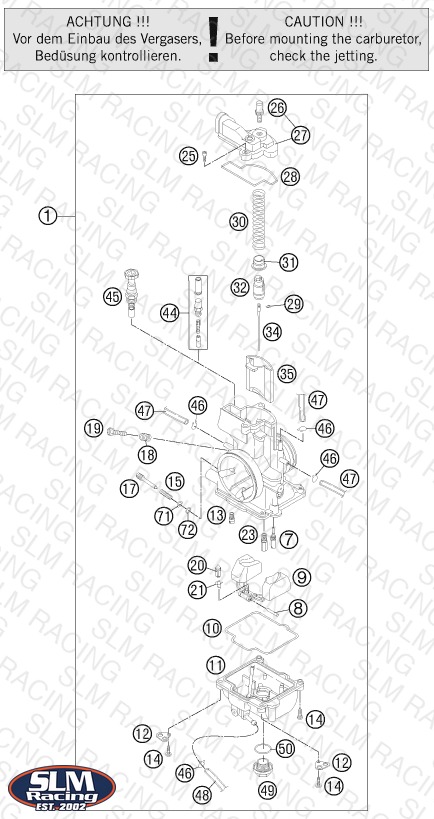

CARBURETOR
Parts (67)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 54531607045 IDLE JET 45 KEIHIN | IDLE JET 45 KEIHIN | — | — | Check availability | |
| 7 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | — | — | Check availability | |
| 7 | 54531607048 IDLE JET 48 KEIHIN | IDLE JET 48 KEIHIN | — | — | Check availability | |
| 23 | 54531623155 MAIN JET 155 KEIHIN | MAIN JET 155 KEIHIN | — | — | Check availability | |
| 23 | 54531623158 MAIN JET 158 KEIHIN | MAIN JET 158 KEIHIN | — | — | Check availability | |
| 23 | 54531623160 MAIN JET 160 KEIHIN | MAIN JET 160 KEIHIN | — | — | Check availability | |
| 7 | 54531607052 IDLE JET 52 KEIHIN | IDLE JET 52 KEIHIN | — | — | Check availability | |
| 23 | 54531623162 MAIN JET 162 KEIHIN | MAIN JET 162 KEIHIN | — | — | Check availability | |
| 23 | 54531623165 MAIN JET 165 KEIHIN | MAIN JET 165 KEIHIN | — | — | Check availability | |
| 23 | 54531623168 MAIN JET 168 KEIHIN | MAIN JET 168 KEIHIN | — | — | Check availability | |
| 23 | 54531623170 MAIN JET 170 KEIHIN | MAIN JET 170 KEIHIN | — | — | Check availability | |
| 23 | 54531623172 MAIN JET 172 KEIHIN | MAIN JET 172 KEIHIN | — | — | Check availability | |
| 23 | 54531623175 MAIN JET 175 KEIHIN | MAIN JET 175 KEIHIN | — | — | Check availability | |
| 23 | 54531623178 MAIN JET 178 KEIHIN | MAIN JET 178 KEIHIN | — | — | Check availability | |
| 23 | 54531623180 MAIN JET 180 KEIHIN | MAIN JET 180 KEIHIN | — | — | Check availability | |
| 23 | 54531623182 MAIN JET 182 KEIHIN | MAIN JET 182 KEIHIN | — | — | Check availability | |
| 23 | 54531623185 MAIN JET 185 KEIHIN | MAIN JET 185 KEIHIN | — | — | Check availability | |
| 25 | 54831025000 SPECIAL-AH-SCREW M 4X12 | SPECIAL-AH-SCREW M 4X12 | 2 | — | Check availability | |
| 26 | 54831029000 THROTTLE CALBE HOLDER M6X0,75 | THROTTLE CALBE HOLDER M6X0,75 | 1 | — | Check availability | |
| 27 | 54831127000 CARBURETOR COVER PWK36-S AG | CARBURETOR COVER PWK36-S AG | 1 | — | Check availability | |
| 28 | 54831028000 GASKET FOR CARBURETOR COVER | GASKET FOR CARBURETOR COVER | 1 | — | Check availability | |
| 29 | 54531629000 CLIP FOR JET NEEDLE | CLIP FOR JET NEEDLE | 1 | — | Check availability | |
| 30 | 54831030000 SLIDING SPRING | SLIDING SPRING | 1 | — | Check availability | |
| 31 | 54631231000 SPRING CAP | SPRING CAP | 1 | — | Check availability | |
| 32 | 54631232000 NIPPLE | NIPPLE | 1 | — | Check availability | |
| 34 | 54831135000 JET NEEDLE KEIHIN N1EE 06 | JET NEEDLE KEIHIN N1EE 06 | — | — | Check availability | |
| 34 | 54831135100 JET NEEDLE KEIHIN N1EF 06 | JET NEEDLE KEIHIN N1EF 06 | — | — | Check availability | |
| 34 | 54831135200 JET NEEDLE KEIHIN N1EG 06 | JET NEEDLE KEIHIN N1EG 06 | — | — | Check availability | |
| 34 | 54831135300 JET NEEDLE KEIHIN N1EH 06 | JET NEEDLE KEIHIN N1EH 06 | — | — | Check availability | |
| 34 | 54831135400 JET NEEDLE KEIHIN N1ED 06 | JET NEEDLE KEIHIN N1ED 06 | — | — | Check availability | |
| 34 | 54831135500 JET NEEDLE KEIHIN N1EI 07 | JET NEEDLE KEIHIN N1EI 07 | — | — | Check availability | |
| 34 | 54831135600 JET NEEDLE KEIHIN N1EJ 07 | JET NEEDLE KEIHIN N1EJ 07 | — | — | Check availability | |
| 34 | 54831135700 JET NEEDLE KEIHIN N1EK 07 | JET NEEDLE KEIHIN N1EK 07 | — | — | Check availability | |
| 35 | 54631035000 THROTTLE VALVE 7 FOR 38 PJ '00 | THROTTLE VALVE 7 FOR 38 PJ '00 | 1 | — | Check availability | |
| 44 | 58502096044 CONNECT. COLD START CABLE CPL. | CONNECT. COLD START CABLE CPL. | 1 | — | Check availability | |
| 45 | 54631245000 STARTER PISTON CPL. | STARTER PISTON CPL. | — | — | Check availability | |
| 46 | 54531696000 Clamp 6mm | Clamp 6mm | 5 | — | Check availability | |
| 47 | 31007007101 PVC-HOSE 4X6MM | PVC-HOSE 4X6MM | 2 | — | Check availability | |
| 48 | 52031137001 PVC-HOSE 3X5MM | PVC-HOSE 3X5MM | — | — | Check availability | |
| 49 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | — | Check availability | |
| 50 | 0770180230 O-RING 18,00X2,30 NBR 70 | O-RING 18,00X2,30 NBR 70 | 1 | — | Check availability | |
| 71 | 54831071000 WASHER ADJUSTING SCREW | WASHER ADJUSTING SCREW | 1 | — | Check availability | |
| 72 | 54831072000 O-RING ADJUSTING SCREW | O-RING ADJUSTING SCREW | 1 | — | Check availability | |
| 9 | 57331009000 FLOAT CPL. | FLOAT CPL. | 1 | — | Check availability | |
| 10 | 54831010000 GASKET FLOAT CHAMBER | GASKET FLOAT CHAMBER | 1 | — | Check availability | |
| 11 | 54831011000 FLOAT CHAMBER PWK38-S AG | FLOAT CHAMBER PWK38-S AG | 1 | — | Check availability | View Details |
| 12 | 54531612100 RETAINING PLATE FOR BLEEDER | RETAINING PLATE FOR BLEEDER | 2 | — | Check availability | |
| 13 | 54831051050 STARTER JET 50 KEIHIN | STARTER JET 50 KEIHIN | — | — | Check availability | |
| 13 | 54831051085 STARTER JET 85 KEIHIN | STARTER JET 85 KEIHIN | — | — | Check availability | |
| 14 | 0016040163 HH COLLAR SCREW M 4X16 WS=6 | HH COLLAR SCREW M 4X16 WS=6 | 4 | — | Check availability | View Details |
| 15 | 54531615000 SPRING FOR ADJUSTMENT SCREW | SPRING FOR ADJUSTMENT SCREW | 1 | — | Check availability | |
| 17 | 54531617000 ADJUSTMENT SCREW | ADJUSTMENT SCREW | 1 | — | Check availability | |
| 18 | 54631118000 SPRING | SPRING | 1 | — | Check availability | |
| 19 | 54631219100 ADJUSTMENT SCREW M 5 | ADJUSTMENT SCREW M 5 | 1 | — | Check availability | |
| 20 | 54631220000 FLOAT NEEDLE | FLOAT NEEDLE | 1 | — | Check availability | |
| 21 | 54531621000 CLAMP | CLAMP | 1 | — | Check availability | |
| 23 | 54531623100 MAIN JET GR 100 | MAIN JET GR 100 | — | — | Check availability | |
| 23 | 54531623140 MAIN JET GR 140 | MAIN JET GR 140 | — | — | Check availability | |
| 7 | 54531607055 IDLE JET 55 KEIHIN | IDLE JET 55 KEIHIN | — | — | Check availability | |
| 8 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | — | Check availability | |
| 7 | 54531607050 IDLE JET 50 KEIHIN | IDLE JET 50 KEIHIN | — | — | Check availability | |
| 1 | 50331101644 CARBURETOR KEIHIN PWK36SAG12 | CARBURETOR KEIHIN PWK36SAG12 ONLY FOR EU | — | — | Check availability | View Details |
| 7 | 54831007138 IDLE JET SIZE 38X38 KEIHIN | IDLE JET SIZE 38X38 KEIHIN | — | — | Check availability | |
| 7 | 54531607035 IDLE JET 35 KEIHIN | IDLE JET 35 KEIHIN | — | — | Check availability | |
| 7 | 54531607038 IDLE JET 38 KEIHIN | IDLE JET 38 KEIHIN | — | — | Check availability | |
| 7 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | — | — | Check availability | |
| 1 | 50331101844 CARBURETOR PWK 36S AG 15 | CARBURETOR PWK 36S AG 15 ONLY FOR US | — | — | Check availability | View Details |
