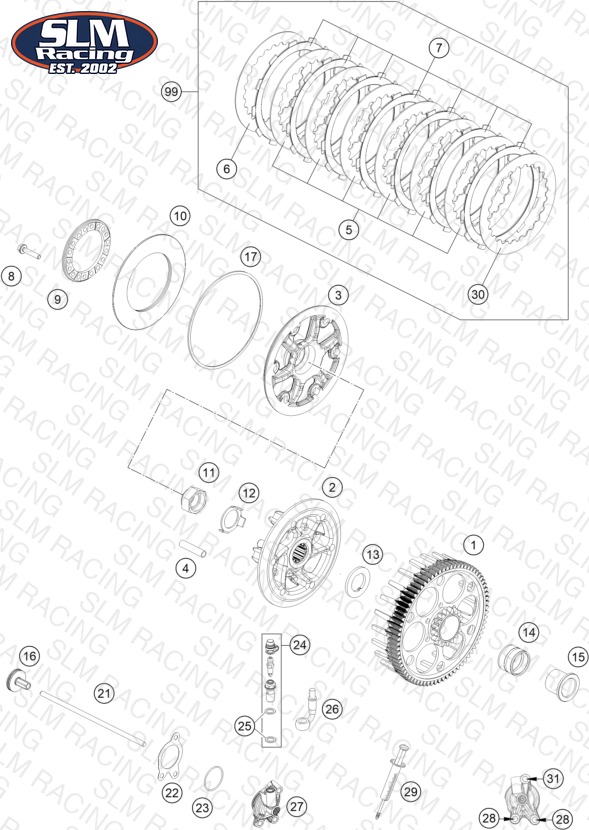

CLUTCH
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79232301073 clutch basket SX | clutch basket SX | 1 | $289.62 | Available | 1 |
| 2 | 79332002000 Clutch hub | Clutch hub | 1 | $134.30 | Available | 1 |
| 3 | 79332003000 Pressure plate | Pressure plate | 1 | $31.12 | Available | 1 |
| 4 | 79232004000 SLEEVE 7.95X35 | SLEEVE 7.95X35 | 6 | $3.99 | Available | 6 |
| 5 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 6 | $12.86 | Available | 6 |
| 6 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 7 | 79532011000 Lining disc 1,95mm | Lining disc 1,95mm | 7 | $26.39 | Available | 7 |
| 8 | 0025050256 HH COLLAR SCREW M5X25 ISA30 | HH COLLAR SCREW M5X25 ISA30 | 6 | $1.99 | Available | 6 |
| 9 | 78132006100 SPRING RING | SPRING RING | 1 | $12.75 | Available | 1 |
| 10 | 76432005000 CLUTCH SPRING ''300Nm'' | CLUTCH SPRING ''300Nm'' | 1 | $89.53 | Available | 1 |
| 11 | 77232019000 HEXAGON NUT M18X1,5 | HEXAGON NUT M18X1,5 | 1 | $15.17 | Available | 1 |
| 12 | 77232018000 SHEET METAL LOCK | SHEET METAL LOCK | 1 | $7.69 | Available | 1 |
| 13 | 78932009000 WASHER 22 X 36,5 X 3 | WASHER 22 X 36,5 X 3 | 1 | $9.12 | Available | 1 |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 15 | 77232015000 INNER RING | INNER RING | 1 | $24.30 | Available | 1 |
| 16 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 17 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 21 | 79232054000 PUSH ROD | PUSH ROD | 1 | $21.66 | Available | 1 |
| 22 | 79232065000 GASKET FOR OUTPUT CYLINDER | GASKET FOR OUTPUT CYLINDER | 1 | $9.12 | Available | 1 |
| 23 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 24 | 25032062000 HOLLOW SCREW CPL. M8 | HOLLOW SCREW CPL. M8 | 1 | $70.28 | Available | 1 |
| 25 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 26 | 25032063000 CLUTCH PIPE L=955MM | CLUTCH PIPE L=955MM | 1 | $175.22 | Available | 1 |
| 27 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 | OUTPUT CYL. DOT CPL. 27MM M8 | 1 | $234.84 | Available | 1 |
| 28 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 29 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 30 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 99 | 79332010033 Clutch plate pack | Clutch plate pack | 1 | $235.61 | Available | 1 |
| 31 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 1 | $3.99 | Available | 1 |
