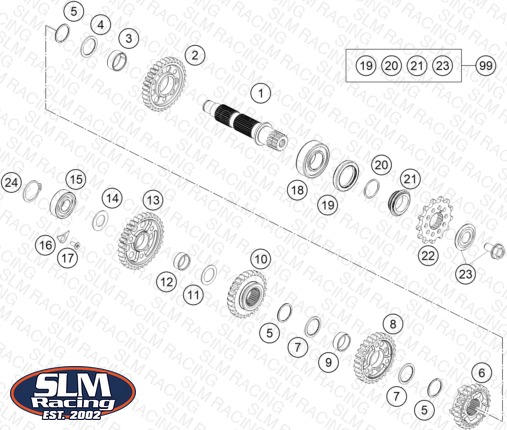

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79033010000 COUNTERSHAFT | COUNTERSHAFT | 1 | $136.94 | Available | 1 |
| 2 | 79033012000 IDLER GEAR 2ND GEAR | IDLER GEAR 2ND GEAR | 1 | $126.27 | Available | 1 |
| 13 | 79033011000 IDLER GEAR 1TH GEAR | IDLER GEAR 1TH GEAR | 1 | $103.72 | Available | 1 |
| 3 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 4 | 79033041000 Thrust washer 25X0,8X30X30X7H | Thrust washer 25X0,8X30X30X7H | 1 | $3.99 | Available | 1 |
| 5 | 0471025001 CIRCLIP XDNS-25 S02 | CIRCLIP XDNS-25 S02 | 3 | $8.68 | Available | 3 |
| 6 | 79033015200 SLIDING GEAR 5.GEAR | SLIDING GEAR 5.GEAR | 1 | $182.15 | Available | 1 |
| 7 | 54833043000 STOP DISC 25X0,8X30X30X7H | STOP DISC 25X0,8X30X30X7H | 2 | $6.15 | Available | 2 |
| 8 | 79033013100 IDLER GEAR 3.G | IDLER GEAR 3.G | 1 | $140.99 | Obsolete | View Details |
| 9 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 1 | $13.74 | Available | 1 |
| 10 | 79033014000 SLIDING GEAR 4TH GEAR | SLIDING GEAR 4TH GEAR | 1 | $140.24 | Available | 1 |
| 11 | 54833080000 STOP DISC 20,2X30X1 | STOP DISC 20,2X30X1 | 1 | $3.99 | Available | 1 |
| 12 | 50033098000 NEEDLE BEARING K20X24X10 | NEEDLE BEARING K20X24X10 | 1 | $14.18 | Available | 1 |
| 14 | 77233020000 STOP DISK 17,2X30X1,3 | STOP DISK 17,2X30X1,3 | 1 | $4.99 | Available | 1 |
| 15 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 16 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 17 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | $2.99 | Available | 1 |
| 18 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 19 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 20 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 21 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | $33.43 | Available | 1 |
| 22 | 79233029013 Sprocket 13-t | Sprocket 13-t | — | $36.40 | Available | 1 |
| 22 | 79233029014 Sprocket 14-t | Sprocket 14-t | 1 | $36.40 | Available | 1 |
| 23 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 24 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
