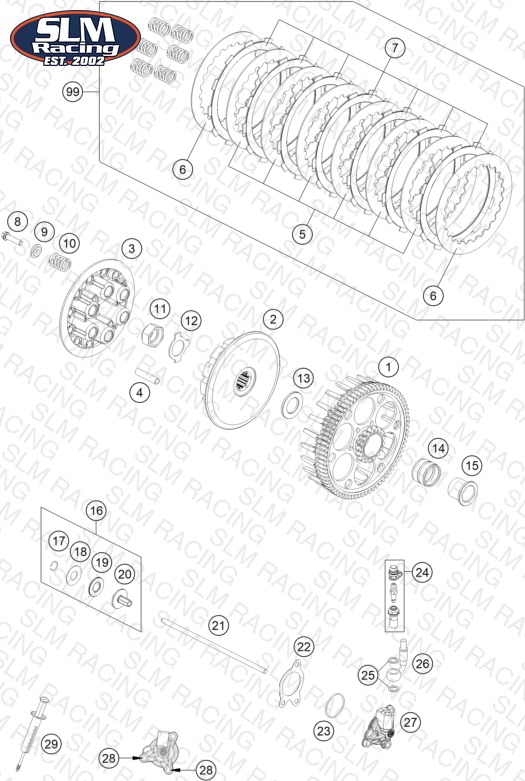

CLUTCH
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79232001073 CLUTCH CAGE SX | CLUTCH CAGE SX | 1 | $289.62 | Available | 1 |
| 2 | 79232002000 CLUTCH HUB | CLUTCH HUB | 1 | $137.05 | Available | 1 |
| 3 | 79232003000 PRESSURE CAP | PRESSURE CAP | 1 | $50.70 | Available | 1 |
| 4 | 79232004000 SLEEVE 7.95X35 | SLEEVE 7.95X35 | 12 | $3.99 | Available | 12 |
| 5 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 6 | $12.86 | Available | 6 |
| 6 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 2 | $11.54 | Available | 2 |
| 7 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 7 | $26.39 | Available | 7 |
| 8 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 6 | $3.99 | Available | 6 |
| 9 | 59032006000 SPRING RETAINER 6,2X12X18X3,6 | SPRING RETAINER 6,2X12X18X3,6 | 6 | $2.99 | Available | 6 |
| 10 | 52332005200 CLUTCH SPRING | CLUTCH SPRING | 6 | $3.99 | Available | 6 |
| 11 | 77232019000 HEXAGON NUT M18X1,5 | HEXAGON NUT M18X1,5 | 1 | $15.17 | Available | 1 |
| 12 | 77232018000 SHEET METAL LOCK | SHEET METAL LOCK | 1 | $7.69 | Available | 1 |
| 13 | 77232009100 WASHER 21,8 X 37 X 3 | WASHER 21,8 X 37 X 3 | 1 | $10.11 | Available | 1 |
| 14 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 15 | 77232015000 INNER RING | INNER RING | 1 | $24.30 | Available | 1 |
| 16 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 17 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 18 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 19 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 20 | 78032057000 PRESSURE PIECE | PRESSURE PIECE | 1 | $30.68 | Available | 1 |
| 21 | 79232054000 PUSH ROD | PUSH ROD | 1 | $21.66 | Available | 1 |
| 22 | 79232065000 GASKET FOR OUTPUT CYLINDER | GASKET FOR OUTPUT CYLINDER | 1 | $9.12 | Available | 1 |
| 23 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 24 | 25032062000 HOLLOW SCREW CPL. M8 | HOLLOW SCREW CPL. M8 | 1 | $70.28 | Available | 1 |
| 25 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 26 | 25032063000 CLUTCH PIPE L=955MM | CLUTCH PIPE L=955MM | 1 | $175.22 | Available | 1 |
| 27 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 | OUTPUT CYL. DOT CPL. 27MM M8 | 1 | $234.84 | Available | 1 |
| 28 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 29 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 99 | 79032010010 CLUTCH KIT 250 SX-F | CLUTCH KIT 250 SX-F | 1 | $243.31 | Available | 1 |
