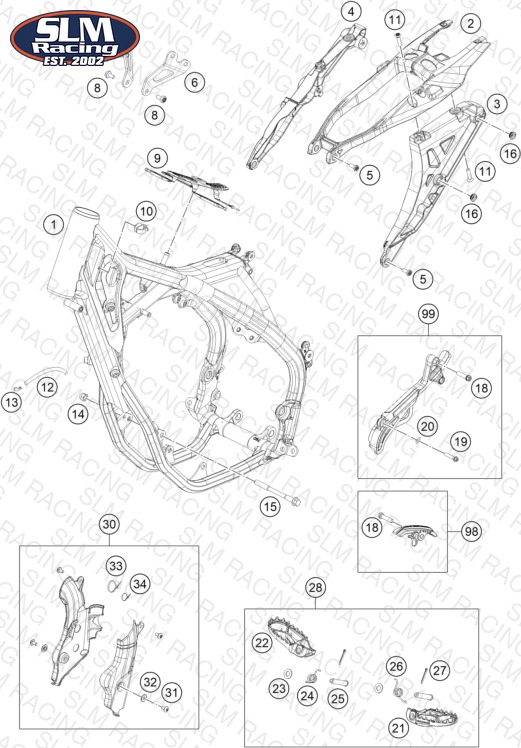

FRAME
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 4 | $6.26 | Available | 4 |
| 26 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | $2.99 | Available | 1 |
| 1 | 7900300100028 FRAME ''790P3'' WHITE | FRAME ''790P3'' WHITE | 1 | $2338.14 | Backorder — Restocking | 1 |
| 2 | 25003002010 SUBFRAME UPPER PART | SUBFRAME UPPER PART | 1 | $296.11 | Available | 1 |
| 3 | 25003002020 SUBFRAME L/S | SUBFRAME L/S | 1 | $193.37 | Available | 1 |
| 4 | 25003002030 SUBFRAME R/S | SUBFRAME R/S | 1 | $230.33 | Available | 1 |
| 6 | 79003013000 ENGINE BRACE L/S | ENGINE BRACE L/S | 1 | $31.45 | Available | 1 |
| 7 | 79003014044 REINFORCING RIGHT CPL. | REINFORCING RIGHT CPL. | 1 | $57.63 | Available | 1 |
| 8 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 6 | $2.99 | Available | 6 |
| 9 | 79007012000 TANK REST RUBBER | TANK REST RUBBER | 1 | $11.65 | Available | 1 |
| 10 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | $4.99 | Available | 1 |
| 11 | 0019080306S COUNTER-SUNK SCREW ISA45 M8X30 | COUNTER-SUNK SCREW ISA45 M8X30 | 4 | $1.99 | Available | 4 |
| 12 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 13 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 14 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 15 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 2 | $10.55 | Available | 2 |
| 16 | 47106003160 quick release rubber grommet | quick release rubber grommet | 4 | $4.99 | Available | 4 |
| 18 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 19 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | $3.99 | Available | 1 |
| 20 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 21 | 79003040000 FOOTREST L/S 2016 | FOOTREST L/S 2016 | 1 | $48.83 | Available | 1 |
| 22 | 79003041000 FOOTREST R/S 2016 | FOOTREST R/S 2016 | 1 | $48.83 | Available | 1 |
| 23 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 24 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | $2.99 | Available | 1 |
| 25 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 31 | 78105081010 SCREW TORX M5X10 | SCREW TORX M5X10 | 4 | $2.99 | Available | 4 |
| 27 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 28 | 79003040033 FOOT PEGS SET CPL. 2016 | FOOT PEGS SET CPL. 2016 | 1 | $119.01 | Available | 1 |
| 30 | 2500309400030 FRAME PROTECTION SET BLACK | FRAME PROTECTION SET BLACK | 1 | $29.03 | Available | 1 |
| 32 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 33 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 2 | $2.99 | Available | 2 |
| 34 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 1 | $1.99 | Available | 1 |
| 98 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | $21.00 | Available | 1 |
| 99 | 79003096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | $29.14 | Available | 1 |
