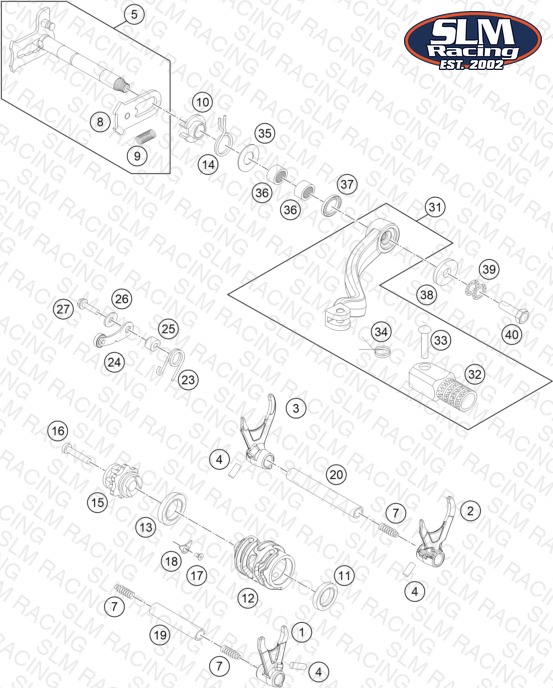

SHIFTING MECHANISM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77734001000 SHIFTING FORK 5TH/6TH GEAR | SHIFTING FORK 5TH/6TH GEAR | 1 | $76.66 | Available | 1 |
| 2 | 54834202000 SHIFT FORK 2./4.G. | SHIFT FORK 2./4.G. | 1 | $72.70 | Available | 1 |
| 3 | 54834203000 SHIFT FORK 1./3. G. | SHIFT FORK 1./3. G. | 1 | $72.70 | Available | 1 |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 5 | 54834005144 SHIFT SHAFT CPL. | SHIFT SHAFT CPL. | 1 | $67.31 | Available | 1 |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 8 | 54634008044 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | $12.31 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 11 | 0625069030 GOOVED BALL BEAR. 6903 JR C4 | GOOVED BALL BEAR. 6903 JR C4 | 1 | $23.97 | Available | 1 |
| 12 | 77734112100 SHIFT ROLLER 5G | SHIFT ROLLER 5G | 1 | $90.74 | Available | 1 |
| 13 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 14 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 15 | 77234015000 SHIFT LOCATING DRUM CPL. | SHIFT LOCATING DRUM CPL. | 1 | $55.43 | Available | 1 |
| 16 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 1 | $2.99 | Available | 1 |
| 17 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 1 | $2.99 | Available | 1 |
| 18 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 20 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 | SHIFT. RAIL C. SHAFT 250/300 | 1 | $16.16 | Available | 1 |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 | ARRESTING LEVER SPRING 03 | 1 | $2.99 | Available | 1 |
| 24 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | $17.15 | Available | 1 |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 26 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | $1.99 | Available | 1 |
| 27 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 31 | 54734031000 SHIFT LEVER CPL. 2-STROKE 2001 | SHIFT LEVER CPL. 2-STROKE 2001 | 1 | $93.05 | Available | 1 |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | $37.17 | Available | 1 |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | $3.99 | Available | 1 |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | $6.15 | Available | 1 |
| 39 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | $4.99 | Available | 1 |
| 40 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 1 | $2.99 | Available | 1 |
