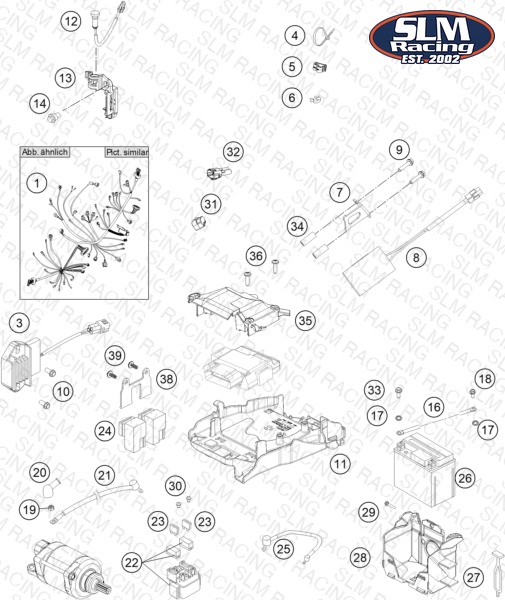

WIRING HARNESS
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 77711036000 RETAINING PLATE CONDENSATOR | RETAINING PLATE CONDENSATOR | 1 | — | Check availability | |
| 1 | 77711075200 WIRING HARNESS SX-F 2014 | WIRING HARNESS SX-F 2014 | 1 | — | Check availability | |
| 3 | 77211034000 Voltage regulator | Voltage regulator | 1 | — | Check availability | |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | — | Check availability | |
| 4 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | — | Check availability | |
| 5 | 83013026000 Line guide | Line guide | 2 | — | Check availability | |
| 6 | 57013072100 WIRING HOLDER 16MM | WIRING HOLDER 16MM | — | — | Check availability | |
| 8 | 77711035000 Capacitor | Capacitor | 1 | — | Check availability | |
| 9 | 0025050306 HH COLLAR SCREW M5X30 TX30 | HH COLLAR SCREW M5X30 TX30 | 2 | — | Check availability | |
| 10 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 11 | 77711094000 ELECTRIC BOX | ELECTRIC BOX | 1 | — | Check availability | |
| 12 | 81214083000 INDICATOR LIGHT LED YELLOW FI | INDICATOR LIGHT LED YELLOW FI | 1 | — | Check availability | |
| 13 | 77214098000 HOLDER INDICATOR LIGHT SX | HOLDER INDICATOR LIGHT SX | 1 | — | Check availability | |
| 14 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 1 | — | Check availability | |
| 16 | 58411097100 GROUND CABLE D=6MM L=140MM '97 | GROUND CABLE D=6MM L=140MM '97 | 1 | — | Check availability | |
| 17 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 3 | — | Check availability | |
| 18 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 1 | — | Check availability | |
| 19 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 20 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | — | Check availability | |
| 21 | 81311059000 STARTER CABLE | STARTER CABLE | 1 | — | Check availability | |
| 22 | 76211058000 Starter relay | Starter relay | 1 | — | Check availability | |
| 23 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | — | Check availability | |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 1 | — | Check availability | |
| 25 | 81311059050 WIRING HARNESS BATTERY | WIRING HARNESS BATTERY | 1 | — | Check availability | |
| 26 | 77311053000 BATTERY 12V 3AH YTX4L-BS | BATTERY 12V 3AH YTX4L-BS | 1 | — | Check availability | View Details |
| 27 | 50303018000 RUBBER L=145MM | RUBBER L=145MM | 1 | — | Check availability | |
| 28 | 77211055000 BATTERY BOX | BATTERY BOX | 1 | — | Check availability | |
| 29 | 0017060205 SCREW FOR PLASTIC K60X20 SW6 | SCREW FOR PLASTIC K60X20 SW6 | 3 | — | Check availability | |
| 30 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | — | Check availability | |
| 31 | 77211010050 DUMMY PLUG MAPSELECTSWITCH | DUMMY PLUG MAPSELECTSWITCH | 1 | — | Check availability | |
| 32 | 69011040000 END PLUG CAN-BUS 08 | END PLUG CAN-BUS 08 | 1 | — | Check availability | View Details |
| 33 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | — | Check availability | |
| 34 | 77711036050 BUSHING CONENSATOR BRACKET | BUSHING CONENSATOR BRACKET | 2 | — | Check availability | |
| 35 | 77711094050 ECU SPLASH PROTECT. | ECU SPLASH PROTECT. | 1 | — | Check availability | |
| 36 | 0081645121 EJOT DELTA PT SCREW 45X12-Z | EJOT DELTA PT SCREW 45X12-Z | 2 | — | Check availability | |
| 38 | 81311037000 BRACKET POWERRELAIS | BRACKET POWERRELAIS | 1 | — | Check availability | |
| 39 | 0081050121 EJOT PT screw K50x12 | EJOT PT screw K50x12 | 2 | — | Check availability | |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | — | Check availability |
