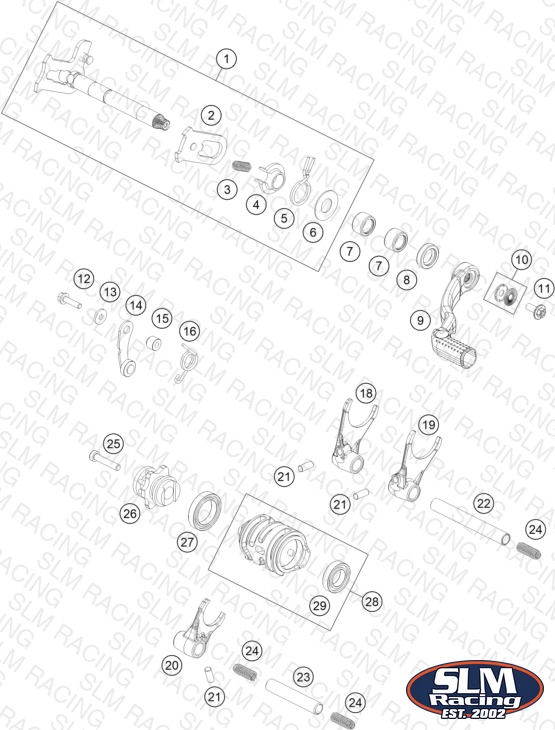

SHIFTING MECHANISM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54834005133 SHIFT SHAFT ASSY | SHIFT SHAFT ASSY | 1 | $67.31 | Available | 1 |
| 2 | 61234008044 SLIDING PLATE | SLIDING PLATE | 1 | $12.31 | Available | 1 |
| 3 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 4 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 5 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 6 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 7 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 8 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 9 | 50434031000 SHIFT LEVER CPL. | SHIFT LEVER CPL. | 1 | $109.00 | Available | 1 |
| 10 | 50233041500 PAIR NORDLOCK WASHER M6 | PAIR NORDLOCK WASHER M6 | 1 | $4.99 | Available | 1 |
| 11 | 0024060156S HH collar screw M6x15 TX30 | HH collar screw M6x15 TX30 | 1 | $2.99 | Available | 1 |
| 12 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 13 | 0349000050 WASHER DIN7349-5X15X2 | WASHER DIN7349-5X15X2 | 1 | $1.99 | Available | 1 |
| 14 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | $17.15 | Available | 1 |
| 15 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 16 | 54834023000 LOCKING LEVER SPRING 03 | LOCKING LEVER SPRING 03 | 1 | $3.99 | Available | 1 |
| 18 | 50434103000 SHIFTING FORK1ST/3RDGEAR | SHIFTING FORK1ST/3RDGEAR | 1 | $66.98 | Available | 1 |
| 19 | 50434102000 SHIFTING FORK 2ND/4TH GEAR | SHIFTING FORK 2ND/4TH GEAR | 1 | $67.20 | Available | 1 |
| 20 | 50434101000 SHIFTING FORK 5/6 GEAR | SHIFTING FORK 5/6 GEAR | 1 | $63.35 | Available | 1 |
| 21 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 22 | 54834020000 SHIFT. RAIL C. SHAFT 250/300 | SHIFT. RAIL C. SHAFT 250/300 | 1 | $16.16 | Available | 1 |
| 23 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 24 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 25 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | $1.99 | Available | 1 |
| 26 | 50434015033 SHIFT DRUM LOCATING CPL. | SHIFT DRUM LOCATING CPL. | 1 | $34.31 | Available | 1 |
| 27 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 28 | 50434012033 SHIFTING DRUM CPL. | SHIFTING DRUM CPL. | 1 | $84.58 | Available | 1 |
| 29 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | $23.97 | Available | 1 |
