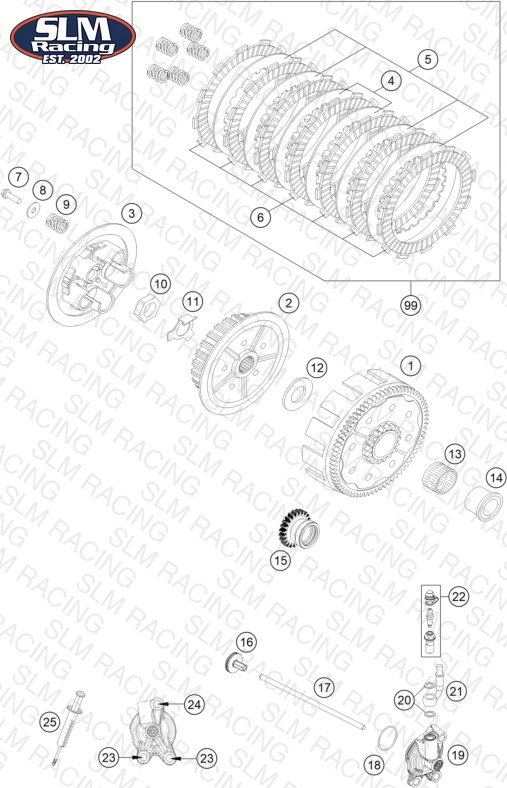

CLUTCH
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 23 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 11 | 50332018000 SHEET METAL LOCK 1,5MM '98 | SHEET METAL LOCK 1,5MM '98 | 1 | $7.36 | Available | 1 |
| 1 | 50332001044 OUTER CLUTCH HUB '98 | OUTER CLUTCH HUB '98 | 1 | $531.73 | Available | 1 |
| 3 | 50332003000 PRESSURE PLATE 125/200'98 | PRESSURE PLATE 125/200'98 | 1 | $102.29 | Available | 1 |
| 2 | 50332002000 INNER CLUTCH HUB 125/200'98 | INNER CLUTCH HUB 125/200'98 | 1 | $135.40 | Available | 1 |
| 4 | 50332010100 INTERMEDI. DISC STEEL 1,5MM'98 | INTERMEDI. DISC STEEL 1,5MM'98 | 2 | $17.37 | Available | 2 |
| 5 | 50332010400 INTERMEDIATE DISC 1,5MM | INTERMEDIATE DISC 1,5MM | 4 | $24.74 | Available | 4 |
| 6 | 77032011000 LINING DISC 3,0MM 05 | LINING DISC 3,0MM 05 | 7 | $42.67 | Available | 7 |
| 7 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 5 | $3.99 | Available | 5 |
| 8 | 50232050000 WASHER 6,2X18X2 | WASHER 6,2X18X2 | 5 | $6.15 | Available | 5 |
| 9 | 77032005100 CLUTCH SPRING | CLUTCH SPRING | 5 | $3.99 | Available | 5 |
| 10 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 12 | 50332020000 STOP DISK 20X39,6X3 '98 | STOP DISK 20X39,6X3 '98 | 1 | $19.24 | Available | 1 |
| 13 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 14 | 50332013000 INNER RING 20X26X25,9 '98 | INNER RING 20X26X25,9 '98 | 1 | — | Obsolete | View Details |
| 15 | 50432023023 PRIMARY WHEEL 23T | PRIMARY WHEEL 23T | 1 | $127.92 | Available | 1 |
| 24 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 1 | $3.99 | Available | 1 |
| 25 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 99 | 50432011010 CLUTCH KIT 125SX 17 | CLUTCH KIT 125SX 17 | 1 | $343.63 | Available | 1 |
| 16 | 78032057044 PRESSURE PIECE CPL. 08 | PRESSURE PIECE CPL. 08 | 1 | $30.68 | Available | 1 |
| 17 | 50432054000 PUSH ROD | PUSH ROD | 1 | $19.57 | Available | 1 |
| 18 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 19 | 25032061044 OUTPUT CYL. DOT CPL. 27MM M8 | OUTPUT CYL. DOT CPL. 27MM M8 | 1 | $234.84 | Available | 1 |
| 20 | 0603082121 SEAL RING CU DIN7603- 8X12X1 | SEAL RING CU DIN7603- 8X12X1 | 2 | $3.99 | Available | 2 |
| 21 | 25032063000 CLUTCH PIPE L=955MM | CLUTCH PIPE L=955MM | 1 | $175.22 | Available | 1 |
| 22 | 25032062000 HOLLOW SCREW CPL. M8 | HOLLOW SCREW CPL. M8 | 1 | $70.28 | Available | 1 |
