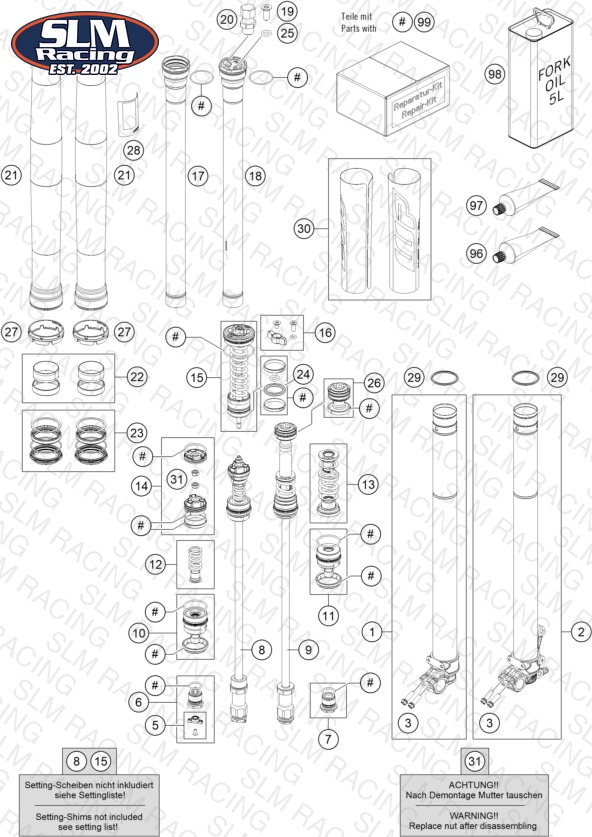

FRONT FORK DISASSEMBLED
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48602046S2 Axle clamp ri. with inner tube | Axle clamp ri. with inner tube | 1 | $420.85 | Available | 1 |
| 2 | 48602045S2 Axle clamp le. with inner tube | Axle clamp le. with inner tube | 1 | $445.60 | Available | 1 |
| 3 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | $2.41 | Available | 4 |
| 6 | 48602052S adjuster housing M20x1 cpl. | adjuster housing M20x1 cpl. | 1 | $37.39 | Available | 1 |
| 7 | 48601533S HH collar screw M20x1x18 cpl. | HH collar screw M20x1x18 cpl. | 1 | $25.07 | Available | 1 |
| 8 | 48601574S5 Pistonrod D12 M9x1 L385 cpl. | Pistonrod D12 M9x1 L385 cpl. | 1 | $418.32 | Available | 1 |
| 9 | 48601501S2 piston rod 12x470 cpl. | piston rod 12x470 cpl. | 1 | $341.54 | Available | 1 |
| 10 | 48602131S2 Screw sleeve M35,5x0,8 cpl | Screw sleeve M35,5x0,8 cpl | 1 | $63.57 | Available | 1 |
| 11 | 48602138S2 Screw sleeve M35,5x0,8 cpl. | Screw sleeve M35,5x0,8 cpl. | 1 | $56.31 | Available | 1 |
| 12 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 1 | $4.83 | Available | 1 |
| 13 | 48601820S Spring (22) 60-30 rebound cpl. | Spring (22) 60-30 rebound cpl. | 1 | $30.46 | Available | 1 |
| 14 | RP10035T Repair kit piston air fork | Repair kit piston air fork | — | $67.53 | Available | 1 |
| 15 | 48602049S2 Basevalve cpl. | Basevalve cpl. | 1 | $187.98 | Available | 1 |
| 16 | RP10029 adjuster kit screw cap compres | adjuster kit screw cap compres | — | $8.68 | Available | 1 |
| 17 | 48602048S1 screw cap M51x1,5 cpl. | screw cap M51x1,5 cpl. | 1 | $267.29 | Available | 1 |
| 18 | 48602047S2 screw cap M51x1,5 cpl. | screw cap M51x1,5 cpl. | 1 | $318.55 | Available | 1 |
| 19 | 00600003 ISA countersunk head screw M4x | ISA countersunk head screw M4x | 1 | $1.20 | Available | 1 |
| 20 | 48601494S Schrader valve M8x1 cmpl. | Schrader valve M8x1 cmpl. | 1 | $29.39 | Backorder — Restocking | 1 |
| 21 | 48602096 fork outer tube 49.13x577 dt54 | fork outer tube 49.13x577 dt54 | 2 | $302.82 | Available | 2 |
| 22 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | — | $32.99 | Available | 1 |
| 23 | RP10012 Sealkit 48mm SKF black | Sealkit 48mm SKF black | — | $78.53 | Available | 1 |
| 24 | 04100002 X-ring 26,57x3,53 FKM80 | X-ring 26,57x3,53 FKM80 | 1 | $6.15 | Available | 1 |
| 25 | 50180222 O-ring 4x1,5 NBR70 | O-ring 4x1,5 NBR70 | 1 | $1.20 | Available | 1 |
| 26 | 48602135S Piston 33,6x35,4 cpl. | Piston 33,6x35,4 cpl. | 1 | $61.15 | Available | 1 |
| 27 | 48601948 Fork protection ring 60,1mm | Fork protection ring 60,1mm | 2 | $2.41 | Available | 2 |
| 28 | 52000248 sticker "warning" | sticker "warning" | 1 | $19.68 | Available | 1 |
| 29 | 48602007 Stroke indicator 48mm red | Stroke indicator 48mm red | 2 | $4.83 | Available | 2 |
| 30 | 52000235SET Sticker set XACT 5 AER CC 182. | Sticker set XACT 5 AER CC 182. | 1 | $34.99 | Available | 1 |
| 96 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | — | $40.69 | Available | 1 |
| 97 | 00062010053 special grease AER Fork 400g | special grease AER Fork 400g | — | $99.54 | Available | 1 |
| 98 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | — | $175.99 | Available | 1 |
| 99 | RP10034T Gasket kit air fork | Gasket kit air fork | — | $23.09 | Available | 1 |
| 5 | RP10033T Repair kit adjuster rebound re | Repair kit adjuster rebound re | — | $7.69 | Available | 1 |
| 31 | 48602128 Nut M6 h5,4 SW10 | Nut M6 h5,4 SW10 | 2 | $1.20 | Available | 2 |
