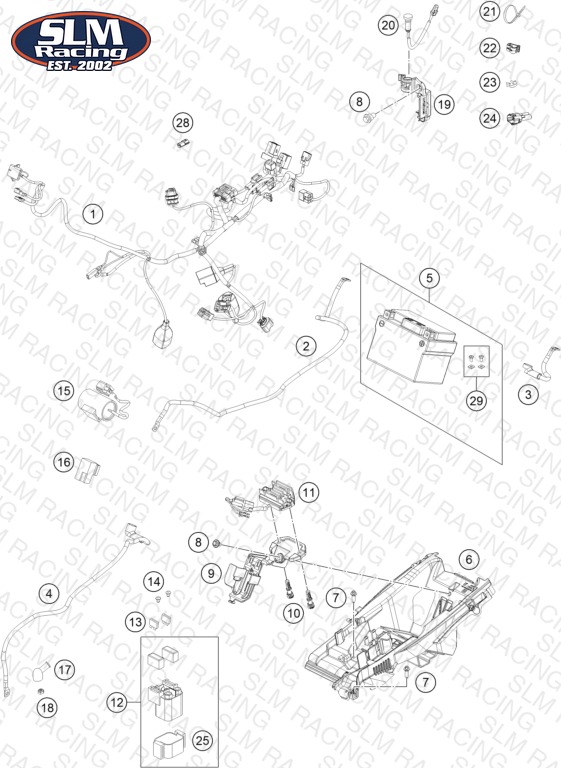

WIRING HARNESS
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79111075100 Main wiring harness 2020 | Main wiring harness 2020 | 1 | — | Check availability | |
| 2 | 25111097000 Massekabel Rahmen-Batterie | Massekabel Rahmen-Batterie | 1 | — | Check availability | |
| 3 | 25111059050 Batteriekabel | Batteriekabel | 1 | — | Check availability | |
| 4 | 25111059000 Starterkabel | Starterkabel | 1 | — | Check availability | |
| 5 | 79111053000 battery 12V/24Wh | battery 12V/24Wh | 1 | — | Check availability | |
| 6 | 25111055000 battery box HQV | battery box HQV | 1 | — | Check availability | View Details |
| 7 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 | SCREW F. PLASTIC K60X20AL SW6 | 2 | — | Check availability | |
| 8 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 2 | — | Check availability | |
| 9 | 79111056000 battery support | battery support | 1 | — | Check availability | |
| 10 | 55641030000 Holder control unit | Holder control unit | 2 | — | Check availability | |
| 11 | 77211034000 Voltage regulator | Voltage regulator | 1 | — | Check availability | |
| 12 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | — | Check availability | |
| 13 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | — | Check availability | |
| 14 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | — | Check availability | |
| 15 | 77711035000 Capacitor | Capacitor | 1 | — | Check availability | |
| 16 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 1 | — | Check availability | |
| 17 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | — | Check availability | |
| 18 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | — | Check availability | |
| 19 | 77214098000 HOLDER INDICATOR LIGHT SX | HOLDER INDICATOR LIGHT SX | 1 | — | Check availability | |
| 20 | 81214083000 INDICATOR LIGHT LED YELLOW FI | INDICATOR LIGHT LED YELLOW FI | 1 | — | Check availability | |
| 21 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 0 | — | Check availability | |
| 21 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 0 | — | Check availability | |
| 21 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability | |
| 22 | 83013026000 Line guide | Line guide | 1 | — | Check availability | |
| 23 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | 1 | — | Check availability | |
| 24 | 000700000AL001 Endconnector Can-Bus 2017 | Endconnector Can-Bus 2017 | 1 | — | Check availability | |
| 25 | 58211058050 BRACKET RUBBER F.STARTRELAY 07 | BRACKET RUBBER F.STARTRELAY 07 | 1 | — | Check availability | |
| 28 | 000700000KO001 blind connector | blind connector | 1 | — | Check availability | |
| 29 | 79111053010 screw kit | screw kit only for 79111053000 | 1 | — | Check availability |
