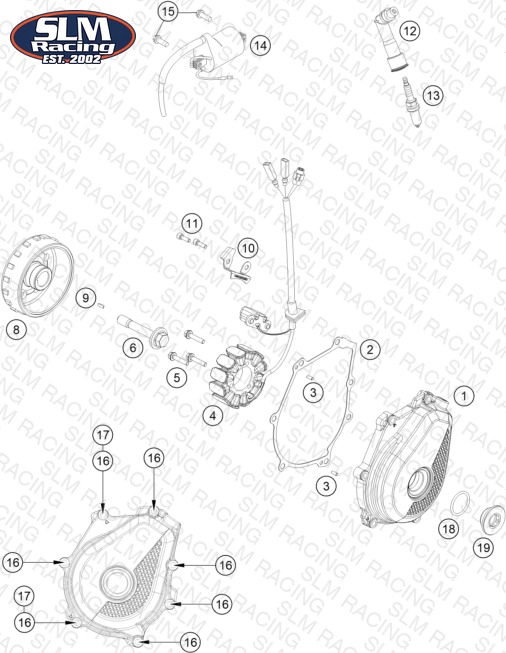

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A48030002000C1 Ignition cover | Ignition cover | 1 | $111.86 | Available | 1 |
| 2 | A48030040000 Ignition cover gasket | Ignition cover gasket | 1 | $9.45 | Backorder — Restocking | 1 |
| 3 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 4 | 79239004200 Stator | Stator | 1 | $240.23 | Available | 1 |
| 5 | 0012050253S Bolt DIN 6912 - M5x25 SS | Bolt DIN 6912 - M5x25 SS | 3 | $1.99 | Available | 3 |
| 6 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 8 | 79439005100 Rotor | Rotor | 1 | $501.59 | Available | 1 |
| 9 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 10 | A46030002050 Cable retainer | Cable retainer | 1 | $10.66 | Available | 1 |
| 11 | 0912050163S Cap head screw DIN912 - M5x16 | Cap head screw DIN912 - M5x16 | 2 | $1.99 | Available | 2 |
| 12 | 79539190000 Spark plug connector | Spark plug connector | 1 | $60.27 | Backorder — Restocking | 1 |
| 13 | 77839093000 spark plug | spark plug | 1 | $26.72 | Available | 1 |
| 14 | 58439006000 Ignition coil | Ignition coil | 1 | $88.76 | Backorder — Restocking | 1 |
| 15 | 0026060186 COLLAR SCREW M6X18 ISA30 | COLLAR SCREW M6X18 ISA30 | 2 | $1.99 | Available | 2 |
| 16 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 7 | $3.99 | Available | 7 |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 2 | $2.99 | Available | 2 |
| 18 | 07700240251 o-ring 24.00x2.50 Viton | o-ring 24.00x2.50 Viton | 1 | $3.99 | Available | 1 |
| 19 | 7723000216030 SCREW PLUG M24X1,5 | SCREW PLUG M24X1,5 | 1 | $43.11 | Available | 1 |
