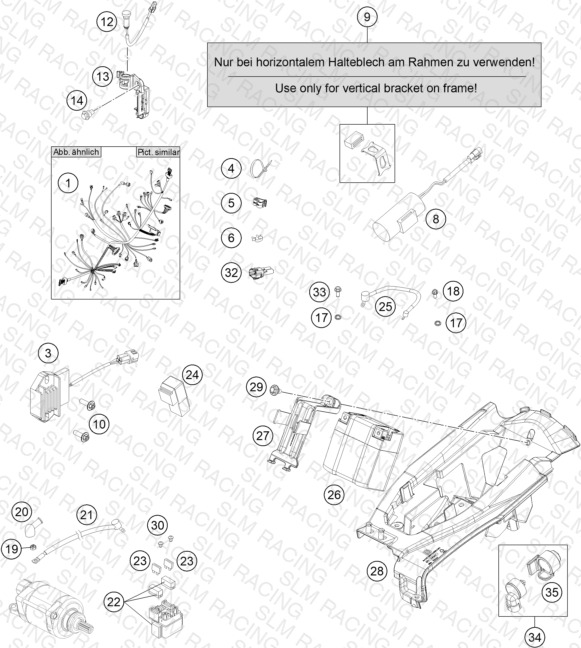

WIRING HARNESS
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 9 | 79011036044 BRACKETKIT CONDENSER | BRACKETKIT CONDENSER | 1 | $10.66 | Available | 1 |
| 1 | 79211075000 WIRING HARNESS | WIRING HARNESS | 1 | $450.11 | Available | 1 |
| 3 | 77211034000 Voltage regulator | Voltage regulator | 1 | $221.64 | Available | 1 |
| 4 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | — | $1.99 | Available | 1 |
| 4 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | — | $1.99 | Available | 1 |
| 4 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | — | $2.99 | Available | 1 |
| 5 | 83013026000 Line guide | Line guide | 2 | $3.99 | Available | 2 |
| 6 | 58111076000 CABLE SUPPORT KHS NR.150-47610 | CABLE SUPPORT KHS NR.150-47610 | — | $4.99 | Available | 1 |
| 8 | 79011035000 CONDENSER 2016 | CONDENSER 2016 | 1 | $90.30 | Available | 1 |
| 10 | 0024060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | $3.99 | Available | 2 |
| 12 | 81214083000 INDICATOR LIGHT LED YELLOW FI | INDICATOR LIGHT LED YELLOW FI | 1 | $36.62 | Available | 1 |
| 13 | 77214098000 HOLDER INDICATOR LIGHT SX | HOLDER INDICATOR LIGHT SX | 1 | $4.99 | Available | 1 |
| 14 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 | SPECIAL SCREW M6X12,5 WS=8 | 1 | $2.99 | Available | 1 |
| 17 | 58411098100 CONTACT WASHER M6 VSV-K6 | CONTACT WASHER M6 VSV-K6 | 3 | $2.99 | Available | 3 |
| 18 | 0009050106 EJOT SPIRAL SCREW SF M5X10-K | EJOT SPIRAL SCREW SF M5X10-K | 1 | $2.99 | Available | 1 |
| 19 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 20 | 77240099000 Protection cap for starter eng | Protection cap for starter eng | 1 | $7.47 | Available | 1 |
| 21 | 58411059100 STARTERCABLE 700 MM '97 | STARTERCABLE 700 MM '97 | 2 | $27.82 | Available | 2 |
| 22 | 58211058000 Starter reley 12V 99 | Starter reley 12V 99 | 1 | $85.46 | Available | 1 |
| 23 | 58011109110 Plug-in fuse, big 10A | Plug-in fuse, big 10A | 2 | $2.99 | Available | 2 |
| 24 | 61111057000 RELAY CM1A-R-12V-H80 07 | RELAY CM1A-R-12V-H80 07 | 1 | $19.79 | Available | 1 |
| 25 | 58711086000 WIRING HARNESS BATTERY DUKE'99 | WIRING HARNESS BATTERY DUKE'99 | 1 | $18.14 | Available | 1 |
| 26 | 79011153100 Battery | Battery | 1 | — | Obsolete | View Details |
| 27 | 79011056000 BATTERY BOX SUPPORT | BATTERY BOX SUPPORT | 1 | $4.99 | Available | 1 |
| 28 | 25011055000 BATTERY BOX | BATTERY BOX | 1 | $32.99 | Available | 1 |
| 30 | 0902060083 Oval head screw ISO 7380 M 6X8 | Oval head screw ISO 7380 M 6X8 | 2 | $1.99 | Available | 2 |
| 32 | 69011040000 END PLUG CAN-BUS 08 | END PLUG CAN-BUS 08 | 1 | $23.53 | Available | 1 |
| 33 | 0025050126 HH collar screw M5x12 TX30 | HH collar screw M5x12 TX30 | 2 | $3.99 | Available | 2 |
| 34 | 76511010000 MAP-SELECT-SWITCH | MAP-SELECT-SWITCH | 1 | — | Obsolete | View Details |
| 35 | 76511010050 RUBBER HOLDER F. MAP-SEL-SWIT. | RUBBER HOLDER F. MAP-SEL-SWIT. | 1 | $12.31 | Available | 1 |
