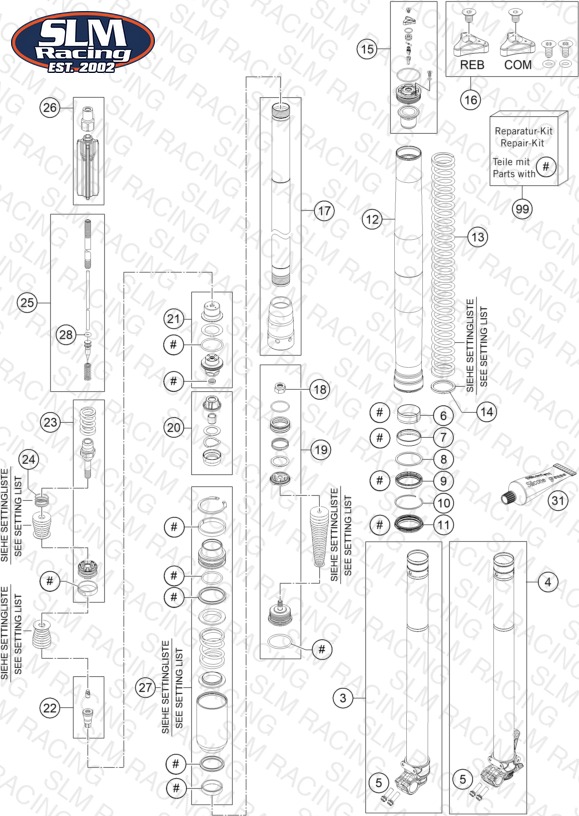

FRONT FORK DISASSEMBLED

← →

Parts (35)

#	Part Number	Description	Qty	Price	Status
3	48601327S1 AXLE CLAMP R/S WITH INNER TUBE	AXLE CLAMP R/S WITH INNER TUBE	1	—	Obsolete	View Details
4	48601326S1 AXLE CLAMP L/S WITH INNER TUBE	AXLE CLAMP L/S WITH INNER TUBE	1	—	Obsolete	View Details
5	0025080256 HH collar screw M8x25	HH collar screw M8x25	4	$2.41	Available	4
6	48601008 Guide bushing 47x49x20	Guide bushing 47x49x20	2	$14.18	Available	2
7	48601009 Guide bushing 48x52x12	Guide bushing 48x52x12	2	$14.18	Available	2
8	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	$3.62	Available	2
9	48601179 Shaft seal SKF 48x57.9x11.4 re	Shaft seal SKF 48x57.9x11.4 re	2	$16.05	Available	2
10	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	$2.41	Available	2
11	48601562 Dirtscarper SKF 48mm red	Dirtscarper SKF 48mm red	2	$15.06	Available	2
12	48600736 Fork outer tube 49,13x577 dt54	Fork outer tube 49,13x577 dt54	2	$543.94	Available	2
13	91410100S SPRING 4,0N/MM SET D=4,9MM	SPRING 4,0N/MM SET D=4,9MM	—	$164.99	Available	1
13	91410101S SPRING 4,2N/MM SET D=4,9MM	SPRING 4,2N/MM SET D=4,9MM	—	$164.99	Available	1
13	91410102S SPRING 4,4N/MM SET D=4,9MM	SPRING 4,4N/MM SET D=4,9MM	—	$164.99	Available	1
13	91410103S FORK SPRING L= 470 4,6 N/MM SE	FORK SPRING L= 470 4,6 N/MM SE	—	$164.99	Available	1
13	91410104S SPRING 4,8N/MM SET D=4,9MM	SPRING 4,8N/MM SET D=4,9MM	—	$164.99	Available	1
13	91410105S SPRING 5,0N/MM SET D=4,9MM	SPRING 5,0N/MM SET D=4,9MM	—	$164.99	Available	1
14	48600456 Washer 35x43x2,5 plastic	Washer 35x43x2,5 plastic	—	$2.41	Available	1
14	48600458 Washer 35x43x1,5 plastic	Washer 35x43x1,5 plastic	—	$2.41	Available	1
15	48601116E Screw cap M51x1,5 compression	Screw cap M51x1,5 compression	1	—	Obsolete	View Details
15	48601050E Screw cap M51x1,5 Zugsture cpl	Screw cap M51x1,5 Zugsture cpl	1	—	Obsolete	View Details
16	R14033 SCREW CAP SMALL PART KIT	SCREW CAP SMALL PART KIT	1	$8.02	Available	1
17	48601031S CARTRIDGE KIT	CARTRIDGE KIT	2	$128.69	Available	2
18	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
19	48601279S BASE VALVE KIT	BASE VALVE KIT	2	—	Obsolete	View Details
20	48601025S1 Check valve d21mm cpl.	Check valve d21mm cpl.	2	$33.98	Available	2
21	R14035 SCREW SLEEVE KIT	SCREW SLEEVE KIT	2	$71.71	Available	2
22	48601527S NEEDLE KIT	NEEDLE KIT	2	—	Obsolete	View Details
23	R14056 TAP KIT	TAP KIT	2	$41.13	Available	2
24	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	$2.41	Available	2
25	48601343S PISTON ROD CPL.	PISTON ROD CPL.	2	$123.63	Available	2
26	48601035S1 SPRING GUIDE CPL.	SPRING GUIDE CPL.	2	—	Obsolete	View Details
27	48601315S5 Pressure tank for 24187P cmpl.	Pressure tank for 24187P cmpl.	1	—	Obsolete	View Details
28	46811265 O-ring 2,2x1,6 Viton75 green	O-ring 2,2x1,6 Viton75 green	2	$1.20	Available	2
31	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$40.69	Available	1
99	R24001 REPAIR - KIT	REPAIR - KIT	—	$140.46	Available	1
