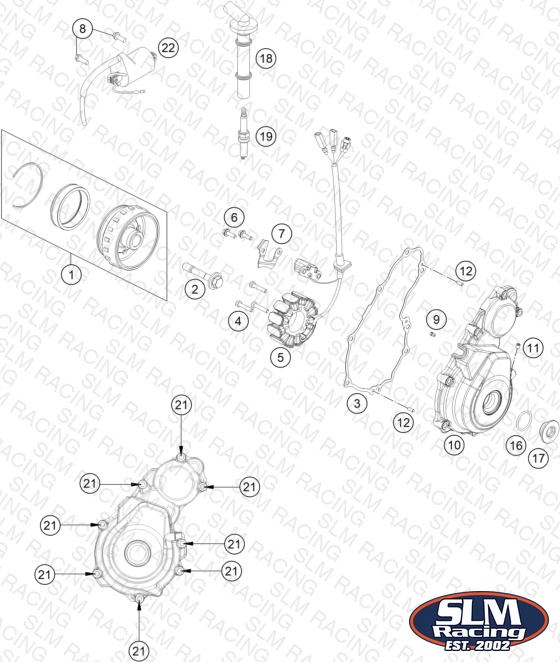

IGNITION SYSTEM
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79239005044 Rotor cpl. | Rotor cpl. | 1 | — | Check availability | View Details |
| 2 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | — | Check availability | |
| 3 | 79230040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | — | Check availability | |
| 4 | 0012050253S Bolt DIN 6912 - M5x25 SS | Bolt DIN 6912 - M5x25 SS | 3 | — | Check availability | |
| 5 | 79239004200 Stator | Stator | 1 | — | Check availability | |
| 6 | 0912050163S Cap head screw DIN912 - M5x16 | Cap head screw DIN912 - M5x16 | 2 | — | Check availability | |
| 7 | 79230002050 CABLE HOLDER PLATE | CABLE HOLDER PLATE | 1 | — | Check availability | View Details |
| 8 | 0026060186 COLLAR SCREW M6X18 ISA30 | COLLAR SCREW M6X18 ISA30 | 2 | — | Check availability | |
| 9 | 80030058060 OIL JET ''60'' M4 | OIL JET ''60'' M4 | 1 | — | Check availability | |
| 10 | 79230602100JA Ignition cover | Ignition cover | 1 | — | Check availability | |
| 11 | 0913050063S THREAD PIN DIN 913 M5X6 | THREAD PIN DIN 913 M5X6 | 1 | — | Check availability | |
| 12 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | — | Check availability | |
| 16 | 0770024025 O-RING 24X2,5 NBR | O-RING 24X2,5 NBR | 1 | — | Check availability | |
| 17 | 7723000216030 SCREW PLUG M24X1,5 | SCREW PLUG M24X1,5 | 1 | — | Check availability | |
| 18 | 79139090000 Resistor Plug Cover | Resistor Plug Cover | 1 | — | Check availability | View Details |
| 19 | 77239093000 PLUG NGK LMAR9AI - 8 | PLUG NGK LMAR9AI - 8 | 1 | — | Check availability | |
| 21 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 8 | — | Check availability | |
| 22 | 58439006000 Ignition coil | Ignition coil | 1 | — | Check availability |
