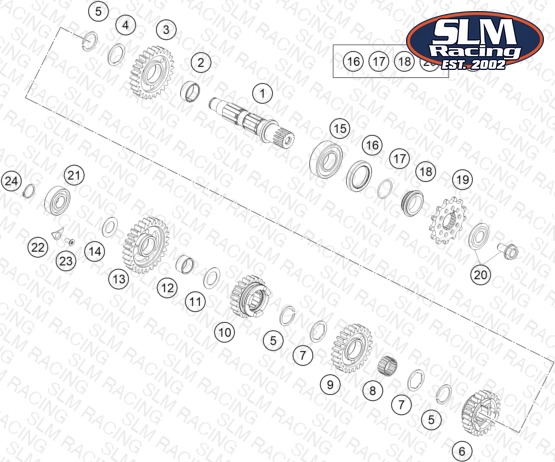

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79333010000 Countershaft | Countershaft | 1 | $240.56 | Available | 1 |
| 2 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | $8.57 | Available | 1 |
| 3 | 79333512000 Idler gear 2nd. | Idler gear 2nd. | 1 | $171.81 | Out of Stock | Notify Me |
| 4 | 79333043000 Stop disk | Stop disk | 1 | $3.99 | Available | 1 |
| 5 | 54633096000 AXIAL-CIRCLIP 25X1,64 | AXIAL-CIRCLIP 25X1,64 | 3 | $2.99 | Available | 3 |
| 6 | 79333514000 Sliding gear 4th | Sliding gear 4th | 1 | $214.71 | Available | 1 |
| 7 | 59033030000 STOP DISC 25,2X32X1,5 | STOP DISC 25,2X32X1,5 | 2 | $3.99 | Available | 2 |
| 8 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 1 | $10.77 | Available | 1 |
| 9 | 79333513000 Idler gear 3rd | Idler gear 3rd | 1 | $155.53 | Available | 1 |
| 10 | 79333515000 Sliding gear 5th | Sliding gear 5th | 1 | $182.15 | Available | 1 |
| 11 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | $2.41 | Available | 1 |
| 12 | 0405202413 NEEDLE BEAR. K20X24X13 | NEEDLE BEAR. K20X24X13 | 1 | $12.75 | Available | 1 |
| 13 | 79333511000 Idler gear 1 st. | Idler gear 1 st. | 1 | $171.26 | Available | 1 |
| 14 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 15 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | $87.55 | Backorder — Restocking | 1 |
| 16 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 17 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 18 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | $33.43 | Available | 1 |
| 19 | 79233029014 Sprocket 14-t | Sprocket 14-t | 1 | $36.40 | Available | 1 |
| 19 | 79233029013 Sprocket 13-t | Sprocket 13-t | — | $36.40 | Available | 1 |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 21 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | $17.04 | Available | 1 |
| 22 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | $1.99 | Available | 1 |
| 23 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | $2.99 | Available | 1 |
| 24 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | $1.99 | Available | 1 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
