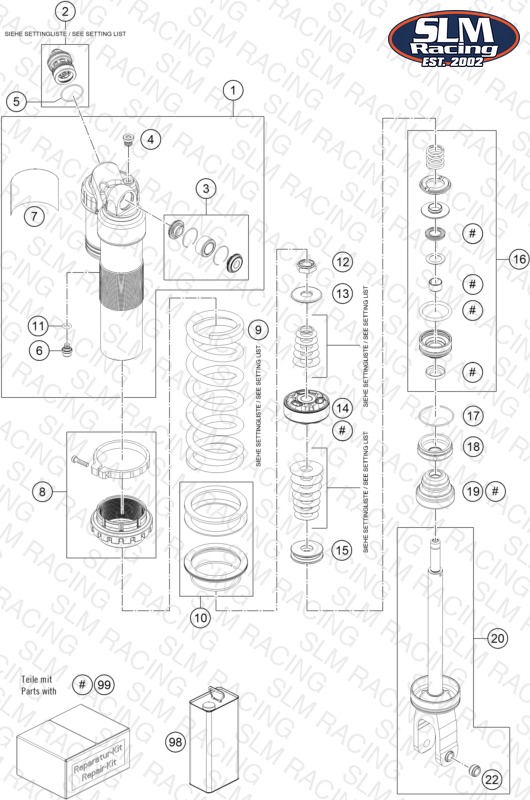

SHOCK ABSORBER DISASSEMBLED
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50181144S1 MONOSHOCK UPPER PART CPL. | MONOSHOCK UPPER PART CPL. | 1 | $412.05 | Available | 1 |
| 2 | 50181101S23 Compression cpl. | Compression cpl. | — | $155.86 | Available | 1 |
| 3 | R12025 Ball joint bearing kit 12mm | Ball joint bearing kit 12mm | 1 | $51.67 | Available | 1 |
| 4 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 5 | 50180218 O-ring 25x1,5 Viton70 | O-ring 25x1,5 Viton70 | 1 | $2.41 | Available | 1 |
| 6 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 7 | 52000146 Sticker WP warning 55x92 | Sticker WP warning 55x92 | 1 | $11.76 | Available | 1 |
| 8 | 50180991S Spring retainer M58,1x2 plasti | Spring retainer M58,1x2 plasti | 1 | $41.24 | Available | 1 |
| 9 | 91210100S SPRING 260 45 N/MM | SPRING 260 45 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210101S SPRING 260 48 N/MM | SPRING 260 48 N/MM | — | $164.99 | Available | 1 |
| 10 | 50180824S SPRING PLATE SET | SPRING PLATE SET | 1 | $44.98 | Available | 1 |
| 11 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $0.76 | Available | 1 |
| 12 | 50181207 Locking nut M12x1 h9 WAF19 | Locking nut M12x1 h9 WAF19 | 1 | $9.23 | Available | 1 |
| 13 | 50181092 Rebound disc 12x34x2 h0 | Rebound disc 12x34x2 h0 | 1 | $25.07 | Available | 1 |
| 14 | 50181255S Piston 12x50x20 cpl. | Piston 12x50x20 cpl. | 1 | $57.96 | Available | 1 |
| 15 | 50181091 Rebound disc 12x43x12,5 h8 | Rebound disc 12x43x12,5 h8 | 1 | $30.24 | Available | 1 |
| 16 | 50180603SA Sealholder 50x28 cpl. | Sealholder 50x28 cpl. | 1 | $74.24 | Available | 1 |
| 17 | 50180126 Round-wire snap ring 53x1,75 | Round-wire snap ring 53x1,75 | 1 | $1.20 | Available | 1 |
| 18 | 50180626 Cover 50x6 h16 | Cover 50x6 h16 | 1 | $53.89 | Available | 1 |
| 19 | 50181100 Rubber pad 18x58x46 black | Rubber pad 18x58x46 black | 1 | $22.76 | Available | 1 |
| 20 | 50181148S1 MONOSHOCK BOTTOM PART CPL. | MONOSHOCK BOTTOM PART CPL. | 1 | $388.95 | Available | 1 |
| 22 | 46811205 Bush M10x12/15/13x9,5 | Bush M10x12/15/13x9,5 | 1 | $7.91 | Available | 1 |
| 98 | 50180751S1 SHOCK ABSORBER FLUID 5 LT | SHOCK ABSORBER FLUID 5 LT | 1 | $175.99 | Available | 1 |
| 99 | RP10019 Rebuild kit 5018 Link 2019 | Rebuild kit 5018 Link 2019 | 1 | $108.89 | Available | 1 |
| 2 | 50181101S29 Compression cpl. | Compression cpl. | — | $119.56 | Available | 1 |
| 2 | 50181101S30 compression cmpl. | compression cmpl. | — | $105.59 | Out of Stock | Notify Me |
| 2 | 50181101S33 Compression cpl. | Compression cpl. | — | $117.14 | Available | 1 |
| 9 | 91210128S Spring 255 36 N/MM | Spring 255 36 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210123S SPRING 260 39 N/MM | SPRING 260 39 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210124S SPRING 260 42 N/MM | SPRING 260 42 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210105S SPRING 260 60 N/MM | SPRING 260 60 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210104S SPRING 260 57 N/MM | SPRING 260 57 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210103S SPRING 260 54 N/MM | SPRING 260 54 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210102S SPRING 260 51 N/MM | SPRING 260 51 N/MM | — | $164.99 | Available | 1 |
| 9 | 91210129 Mainspring (62/65) 30-250 damp | Mainspring (62/65) 30-250 damp | — | $164.99 | Available | 1 |
| 9 | 91210126 Mainspring (62/65) 33-250 damp | Mainspring (62/65) 33-250 damp | — | $164.99 | Available | 1 |
