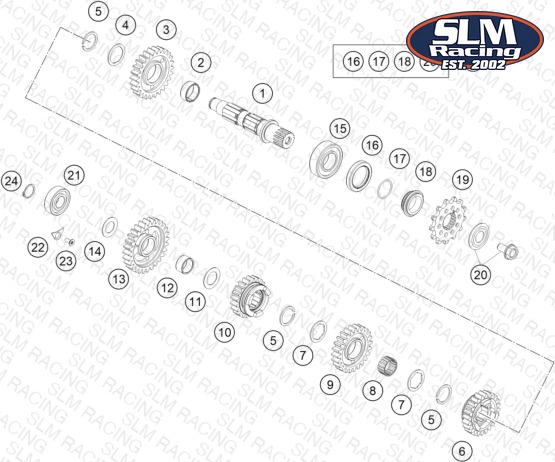

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 54833012100 IDLER GEAR 2ND G. 26-T ''2S26' | IDLER GEAR 2ND G. 26-T ''2S26' | 1 | — | Check availability | |
| 1 | 77233010000 COUNTERSHAFT | COUNTERSHAFT | 1 | — | Check availability | |
| 2 | 0405242812 NEDDLE BEAR. K24X28X11,9 DIV. | NEDDLE BEAR. K24X28X11,9 DIV. | 1 | — | Check availability | |
| 4 | 50333043000 STOP DISC 25,2X32X1 | STOP DISC 25,2X32X1 | 1 | — | Check availability | View Details |
| 5 | 77033022000 AXIAL-CIRCLIP 25X1,65 | AXIAL-CIRCLIP 25X1,65 | 3 | — | Check availability | |
| 6 | 54833014000 SLIDING GEAR 4TH G.24-T ''4S24 | SLIDING GEAR 4TH G.24-T ''4S24 | 1 | — | Check availability | |
| 7 | 59033030000 STOP DISC 25,2X32X1,5 | STOP DISC 25,2X32X1,5 | 2 | — | Check availability | |
| 8 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 1 | — | Check availability | |
| 9 | 54833013000 IDLER GEAR 3RD G. 24-T ''3S24' | IDLER GEAR 3RD G. 24-T ''3S24' | 1 | — | Check availability | |
| 10 | 54833015000 SLIDING GEAR 5TH G.21-T ''5S21 | SLIDING GEAR 5TH G.21-T ''5S21 | 1 | — | Check availability | |
| 11 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 1 | — | Check availability | |
| 12 | 0405202413 NEEDLE BEAR. K20X24X13 | NEEDLE BEAR. K20X24X13 | 1 | — | Check availability | |
| 13 | 54833011100 IDLER GEAR 1.G 28Z | IDLER GEAR 1.G 28Z | 1 | — | Check availability | |
| 14 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | — | Check availability | |
| 15 | 49030023000 cylindrical roller bearing NJ2 | cylindrical roller bearing NJ2 | 1 | — | Check availability | |
| 16 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | — | Check availability | |
| 17 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | — | Check availability | |
| 18 | 78133014000 SPACER SLEEVE COUNTER | SPACER SLEEVE COUNTER | 1 | — | Check availability | |
| 19 | 79233029014 Sprocket 14-t | Sprocket 14-t | 1 | — | Check availability | View Details |
| 19 | 79233029013 Sprocket 13-t | Sprocket 13-t | — | — | Check availability | View Details |
| 20 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | — | Check availability | |
| 21 | 0625062035 BALL BEARING 6203 JR2 C3 | BALL BEARING 6203 JR2 C3 | 1 | — | Check availability | |
| 22 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 1 | — | Check availability | View Details |
| 23 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 1 | — | Check availability | |
| 24 | 0471170015 CIRCLIP DIN 0471-17X1, 5 | CIRCLIP DIN 0471-17X1, 5 | 1 | — | Check availability | |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | — | Check availability | View Details |
