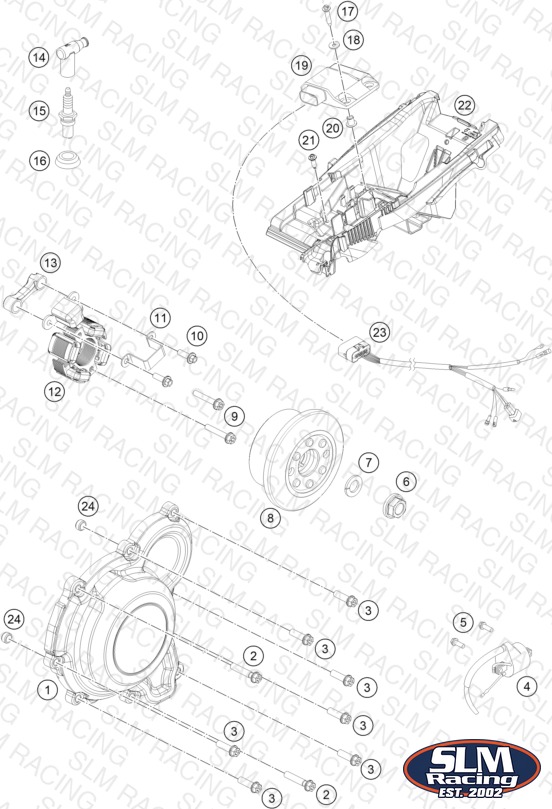

IGNITION SYSTEM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 55430602000 INNER IGNITION COVER HQV | INNER IGNITION COVER HQV | 1 | $45.64 | Available | 1 |
| 2 | 0025060256 HH collar screw M6x25 TX30 | HH collar screw M6x25 TX30 | 2 | $3.99 | Available | 2 |
| 3 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 7 | $3.99 | Available | 7 |
| 4 | 59039006000 IGNITIONCOIL ''IG5128'' | IGNITIONCOIL ''IG5128'' | 1 | $77.87 | Available | 1 |
| 5 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | $3.99 | Available | 2 |
| 6 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 7 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | $2.99 | Available | 1 |
| 8 | 55439005100 ROTOR | ROTOR | 1 | $317.78 | Backorder — Restocking | 1 |
| 9 | 0912050253 AH SCREW DIN0912-M 5X25 | AH SCREW DIN0912-M 5X25 | 2 | $1.20 | Available | 2 |
| 10 | 0014050163 HH COLLAR SCREW M 5X16 WS=6 | HH COLLAR SCREW M 5X16 WS=6 | 2 | $2.99 | Available | 2 |
| 11 | 50439004010 PICKUP BRACKET | PICKUP BRACKET | 1 | $6.15 | Available | 1 |
| 12 | 55439004000 STATOR | STATOR | 1 | $239.02 | Available | 1 |
| 13 | 50439013100 DISTANCE UNIT | DISTANCE UNIT | 1 | $6.15 | Available | 1 |
| 14 | 47039090000 SPARK PLUG CAP NGK REINFORC.04 | SPARK PLUG CAP NGK REINFORC.04 | 1 | $36.99 | Available | 1 |
| 15 | 54331093410 SPARK PLUG NGK BR8ECM | SPARK PLUG NGK BR8ECM | 1 | $18.47 | Available | 1 |
| 16 | 50231012000 SEALING CUP FOR SPARK PLUG | SEALING CUP FOR SPARK PLUG | 1 | $4.99 | Available | 1 |
| 17 | 0017060305 Special screw K60X30 WS=6 | Special screw K60X30 WS=6 | 2 | $2.99 | Available | 2 |
| 18 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 19 | 55439031200 Dash board box 250 SX 18 | Dash board box 250 SX 18 | 1 | $314.70 | Available | 1 |
| 20 | 60308006000 COLLAR BUSHING 6,2X9,2X15X12,5 | COLLAR BUSHING 6,2X9,2X15X12,5 | 2 | $3.99 | Available | 2 |
| 21 | 0017060206 SCREW F. PLASTIC K60X20AL SW6 | SCREW F. PLASTIC K60X20AL SW6 | 1 | $3.99 | Available | 1 |
| 22 | 25111055000 battery box HQV | battery box HQV | 1 | $33.76 | Available | 1 |
| 23 | 54839032200 WIRING HARNESS FOR CDI 2-ST.07 | WIRING HARNESS FOR CDI 2-ST.07 | 1 | $92.39 | Available | 1 |
| 24 | 45230024000 DOWEL 9,8X7X5.5 | DOWEL 9,8X7X5.5 | 2 | $3.99 | Available | 2 |
